The hydraulic SAE O-ring boss plug male will mate with an O-ring boss female only. The female is generally found on ports. The male has straight threads, a sealing face and an O-ring. The female has straight threads and a sealing face. The seal is made at the O-ring on the male and the sealing face on the female.
A Hydraulic fittings' term called SAE(45° Flare) usually applied to fittings having a 45° angle flare or seat. Soft copper tubing is generally used in such applications as it is easily flared to the 45° angle. These are for low-pressure applications—such as for fuel lines and refrigerant lines. The SAE 45° flare male will mate with an SAE 45° flare female only or a dual seat JIC/SAE 45°.* The SAE male has straight threads and a 45° flare seat. The SAE female has straight threads and a 45° flare seat. The seal is made on the 45° flare seat. Some sizes have the same threads as the SAE 37° flare. Carefully measure the seat angle to differentiate.

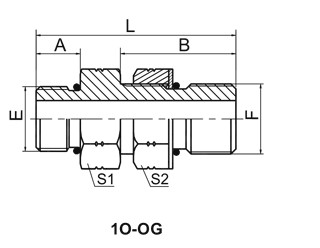

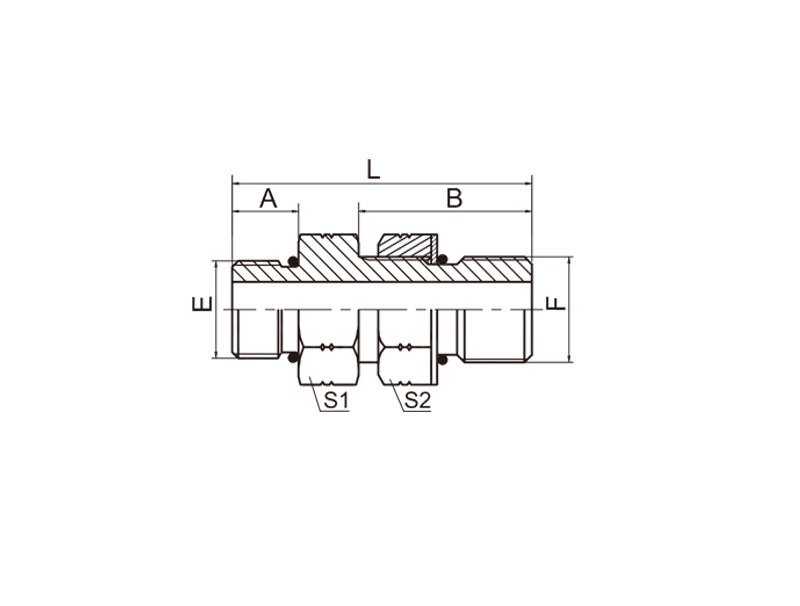

PART NO. | THREAD | O-RING | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | E END | F END | A | B | L | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-04OG | 7/16"X20 | 7/16"X20 | O904 | O904 | 9.14 | 18 | 33 | 14 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-04-06OG | 7/16"X20 | 9/16"X18 | O904 | O906 | 9.14 | 20 | 35.1 | 17 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-06OG | 9/16"X18 | 9/16"X18 | O906 | O906 | 9.93 | 20 | 36 | 17 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-06-08OG | 9/16"X18 | 3/4"X16 | O906 | O908 | 9.93 | 22 | 40 | 22 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-08OG | 3/4"X16 | 3/4"X16 | O908 | O908 | 11.13 | 22 | 40 | 22 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-08-12OG | 3/4"X16 | 1.1/16"X12 | O908 | O912 | 11.13 | 29 | 51 | 32 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-10OG | 7/8"X14 | 7/8"X14 | O910 | O910 | 12.7 | 26 | 46 | 27 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-12OG | 1.1/16"X12 | 1.1/16"X12 | O912 | O912 | 15.1 | 29 | 54 | 32 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-16OG | 1.5/16"X12 | 1.5/16"X12 | O916 | O916 | 15.1 | 29 | 54 | 38 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-20OG | 1.5/8"X12 | 1.5/8"X12 | O920 | O920 | 15.1 | 29 | 54 | 50 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1O-24OG | 1.7/8"X12 | 1.7/8"X12 | O924 | O924 | 15.1 | 29 | 54 | 55 | 55 |
High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
