HYDRAULIC 1M METRIC MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL
  • Air ProHYDRAULIC 1M METRIC MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL

HYDRAULIC 1M METRIC MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1M METRIC MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL

Model:1M

Send Inquiry

Product Description

HYDRAULIC 1M METRIC MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL

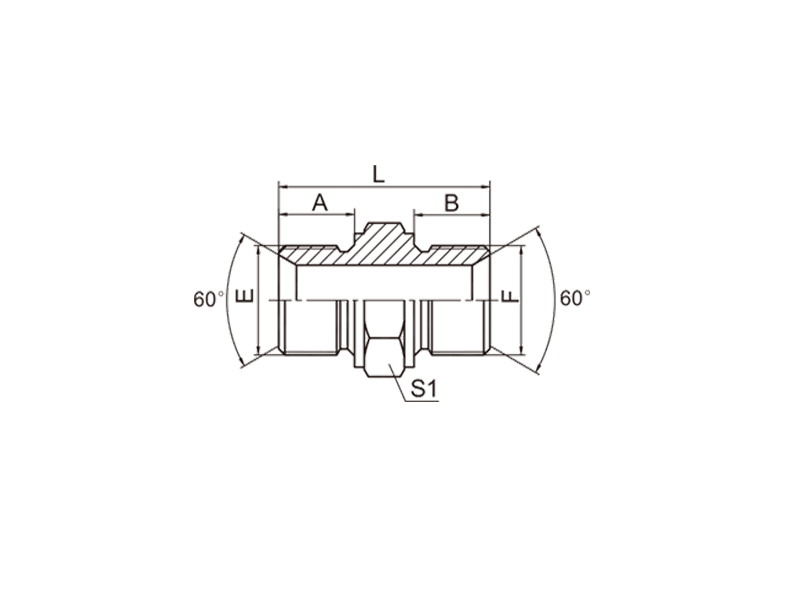

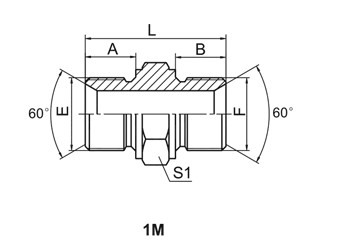

 PART NO.  THREAD   DIMENSIONS
E F A B L S1
1M-10 M10X1 M10X1 8 8 24 14
1M-10-12 M10X1 M12X1.5 8 10 26 17
1M-12 M12X1.5 M12X1.5 10 10 28 17
1M-12-14 M12X1.5 M14X1.5 10 11 29 19
1M-14 M14X1.5 M14X1.5 11 11 30 19
1M-14-16 M14X1.5 M16X1.5 11 12 31 22
1M-16 M16X1.5 M16X1.5 12 12 32 22
1M-16-18 M16X1.5 M18X1.5 12 12 34 24
1M-18 M18X1.5 M18X1.5 12 12 34 24
1M-18-22 M18X1.5 M22X1.5 12 14 38 27
1M-20-22 M20X1.5 M22X1.5 14 14 38 27
1M-22 M22X1.5 M22X1.5 14 14 38 27
1M-22-26 M22X1.5 M26X1.5 14 16 43 32
1M-22-27 M22X1.5 M27X2 14 16 43 32
1M-22-27D M22X1.5 M27X1.5 14 16 43 32
1M-26 M26X1.5 M26X1.5 16 16 45 32
1M-26-30 M26X1.5 M30X2 16 18 47 36
1M-26-30D M26X1.5 M30X1.5 16 18 47 36
1M-27 M27X2 M27X2 16 16 45 32
1M-27D M27X1.5 M27X1.5 16 16 45 32
1M-30 M30X2 M30X2 18 18 49 36
1M-30D M30X1.5 M30X1.5 18 18 49 36
