HYDRAULIC 1KT-SP METRIC MALE 60°CONE / BSPT MALE
  • Air ProHYDRAULIC 1KT-SP METRIC MALE 60°CONE / BSPT MALE

HYDRAULIC 1KT-SP METRIC MALE 60°CONE / BSPT MALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1KT-SP METRIC MALE 60°CONE / BSPT MALE

Model:1KT-SP

Send Inquiry

Product Description

HYDRAULIC 1KT-SP METRIC MALE 60°CONE / BSPT MALE

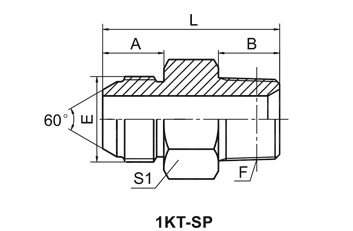

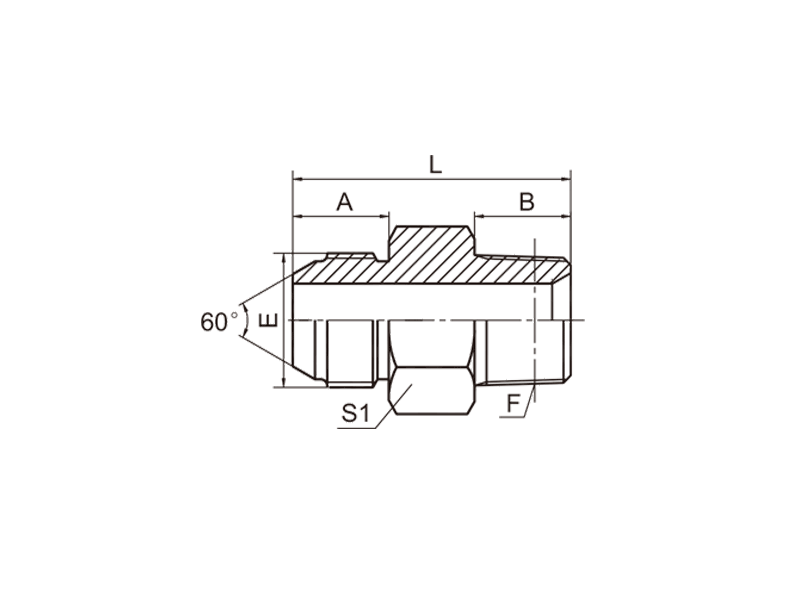

PART NO.    THREAD     DIMENSIONS
E F A B S1
1KT4-14-04SP M14X1.5 R1/4"X19 25 21 14
1KT4-14-06SP M14X1.5 R3/8"X19 25.5 23 16
1KT4-16-06SP M16X1.5 R3/8"X19 26 23 16
1KT4-18-06SP M18X1.5 R3/8"X19 28 24 19
1KT4-20-06SP M20X1.5 R3/8"X19 30 24 19
1KT4-22-06SP M22X1.5 R3/8"X19 31 25 22
1KT4-22-08SP M22X1.5 R1/2"X14 31 30 22
1KT4-24-08SP M24X1.5 R1/2"X14 33 29.5 22
1KT4-24-12SP M24X1.5 R3/4"X14 34 30.5 27
1KT4-30-12SP M30X1.5 R3/4"X14 39 31.5 30
1KT4-33-16SP M33X1.5 R1"X11 43.5 38 33

Hot Tags: HYDRAULIC 1KT-SP METRIC MALE 60°CONE / BSPT MALE, China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
