HYDRAULIC 1KN JIS METRIC MALE 60°CONE/NPT MALE
  • Air ProHYDRAULIC 1KN JIS METRIC MALE 60°CONE/NPT MALE

HYDRAULIC 1KN JIS METRIC MALE 60°CONE/NPT MALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1KN JIS METRIC MALE 60°CONE/NPT MALE

Model:1KN

Send Inquiry

Product Description

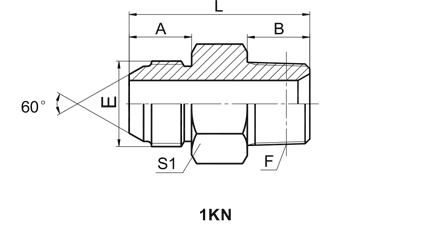

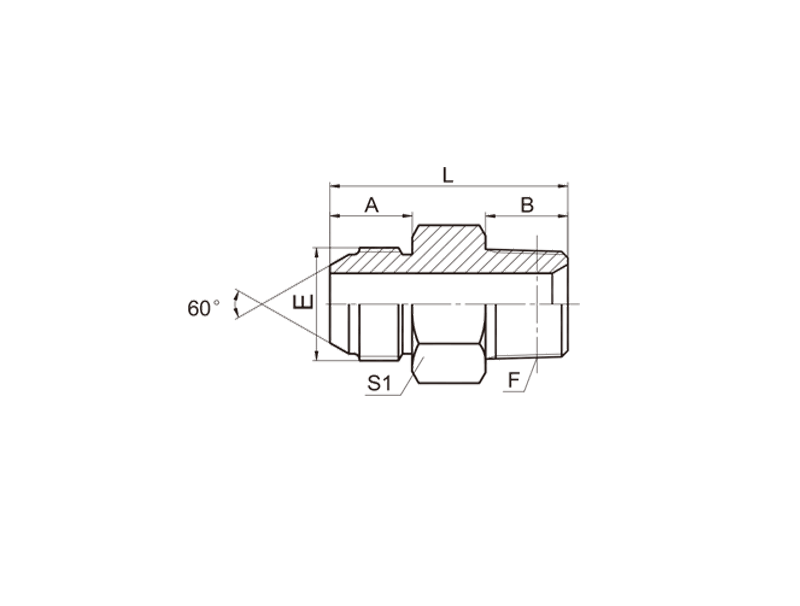

HYDRAULIC 1KN JIS METRIC MALE 60°CONE/NPT MALE




PART NO.  THREAD    DIMENSIONS
E F A B L S1
1KN-14-04 M14X1.5 Z1/4"X18 17 15 38 17
1KN-14-06 M14X1.5 Z3/8"X18 17 16 39 19
1KN-16-06 M16X1.5 Z3/8"X18 18 16 40 19
1KN-16-08 M16X1.5 Z1/2"X14 18 19.5 45.5 22
1KN-18-06 M18X1.5 Z3/8"X18 18 16 40 19
1KN-20-06 M20X1.5 Z3/8"X18 20 16 44 22
1KN-20-08 M20X1.5 Z1/2"X14 20 19.5 47.5 22
1KN-22-08 M22X1.5 Z1/2"X14 20 19.5 47.5 24
1KN-24-08 M24X1.5 Z1/2"X14 21.5 19.5 51 27
1KN-24-12 M24X1.5 Z3/4"X14 21.5 19.5 51 30
1KN-30-12 M30X1.5 Z3/4"X14 26 19.5 56.5 32
1KN-33-16 M33X1.5 Z1"X11.5 30 25.5 66.5 36
1KN-36-20 M36X1.5 Z1.1/4"X11.5 33 26.5 72.5 46
1KN-42-24 M42X1.5 Z1.1/2"X11.5 36 27.5 78.5 50
