AMERICA JIC ADAPTOR 1JO9-OG ELBOW MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3
  • Air ProAMERICA JIC ADAPTOR 1JO9-OG ELBOW MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

AMERICA JIC ADAPTOR 1JO9-OG ELBOW MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

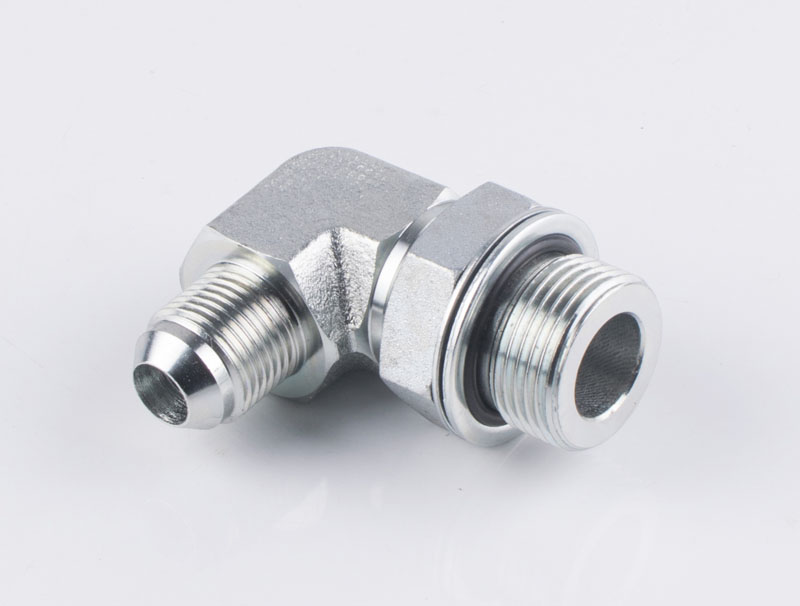

America JIC adaptor for use with :Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water The male pipe threads on these fittings have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Model:1JO9-OG

Send Inquiry

Product Description

AMERICAJIC ADAPTOR 1JO9-OG ELBOW MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

A tube America JIC adaptor sits flush against the flat face of the fitting so you can slide the tubing and fitting sideways to disconnect in cramped spaces. Fittings are also known as zero-clearance fittings. To install, weld a tube adapter to the tubing with a brazing ring, then mate the tube adapter to the fitting and screw on the nut. As the nut is tightened, the tube adapter compresses the O-ring, creating a strong seal.


The O-ring boss male will mate with an O-ring boss female only. The female is generally found on ports. The male has straight threads, a sealing face and an O-ring. The female has straight threads and a sealing face. The seal is made at the O-ring on the male and the sealing face on the female.

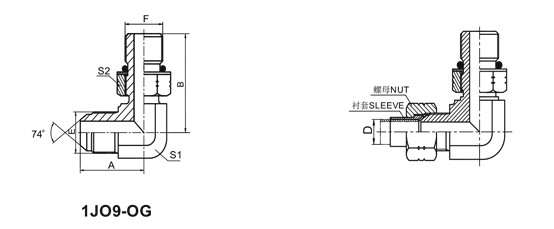

 PART NO.     THREAD  O-RING    DIMENSIONS
E F F END A B S1 S2
1JO9-04-03OG 7/16"X20 3/8"X24 O903 24.5 28 11 14
1JO9-04OG 7/16"X20 7/16"X20 O904 24.5 27.2 11 17
1JO9-04-05OG 7/16"X20 1/2"X20 O905 26.6 29.9 14 17
1JO9-04-06OG 7/16"X20 9/16"X18 O906 26.6 31.8 14 19
1JO9-05-04OG 1/2"X20 7/16"X20 O904 26.6 30 14 17
1JO9-05OG 1/2"X20 1/2"X20 O905 26.6 29 14 17
1JO9-05-06OG 1/2"X20 9/16"X18 O906 26.6 31.8 14 19
1JO9-06-04OG 9/16"X18 7/16"X20 O904 26.9 30 14 17
1JO9-06-05OG 9/16"X18 1/2"X20 O905 26.9 29.9 14 17
1JO9-06OG 9/16"X18 9/16"X18 O906 26.9 31.8 14 19
1JO9-06-08OG 9/16"X18 3/4"X16 O908 30 36.8 19 24
1JO9-08-04OG 3/4"X16 7/16"X20 O904 32 33 19 17
1JO9-08-06OG 3/4"X16 9/16"X18 O906 33 33.5 19 19
1JO9-08OG 3/4"X16 3/4"X16 O908 33 36.8 19 24
1JO9-08-10OG 3/4"X16 7/8"X14 O910 34.8 44 22 27
1JO9-08-12OG 3/4"X16 1.1/16"X12 O912 37.9 51 27 32
1JO9-10-08OG 7/8"X14 3/4"X16 O908 38 40 22 27
1JO9-10OG 7/8"X14 7/8"X14 O910 37.8 44 22 27
1JO9-10-12OG 7/8"X14 1.1/16"X12 O912 41 51 27 32
1JO9-12-08OG 1.1/16"X12 3/4"X16 O908 45 44 27 24
1JO9-12-10OG 1.1/16"X12 7/8"X14 O910 44.2 47 27 27
1JO9-12OG 1.1/16"X12 1.1/16"X12 O912 44.2 51 27 32
1JO9-12-16OG 1.1/16"X12 1.5/16"X12 O916 47.8 54.5 33 41
1JO9-14OG 1.3/16"X12 1.3/16"X12 O914 47.5 53 30 36
1JO9-14-16OG 1.3/16"X12 1.5/16"X12 O916 48.5 54.5 33 41
1JO9-16-12OG 1.5/16"X12 1.1/16"X12 O912 48.8 54.5 33 32
1JO9-16-14OG 1.5/16"X12 1.3/16"X12 O914 49 56 33 36
1JO9-16OG 1.5/16"X12 1.5/16"X12 O916 48.8 54.5 33 41
1JO9-16-20OG 1.5/16"X12 1.5/8"X12 O920 53.8 59 41 50
1JO9-20-16OG 1.5/8"X12 1.5/16"X12 O916 55.5 59.5 41 41
1JO9-20OG 1.5/8"X12 1.5/8"X12 O920 55.3 59 41 50
1JO9-20-24OG 1.5/8" X12 1.7/8"X12 O924 59.4 63 48 55
1JO9-24OG 1.7/8"X12 1.7/8"X12 O924 62.5 63 48 55
1JO9-32OG 2.1/2"x12 2.1/2"x12 O932 80 76 63 70
Note:Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
