America JIC adaptor For use with :Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water The male pipe threads on these fittings have a sealant applied for extra protection against leaks. Also known as JIC (Joint Industrial Council) fittings, they provide a tight metal-to-metal seal on tubing that is flared to 37°. They are excellent corrosion resistance. Fittings require a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Model:1JO4-OG

Send Inquiry

Product Description

AMERICAJIC ADAPTOR 1JO4-OG ELBOW MALE 37°CONE/SAE O-RING BOSS L-SERIES ISO 11926-3

A tube America JIC adaptor sits flush against the flat face of the fitting so you can slide the tubing and fitting sideways to disconnect in cramped spaces. Fittings are also known as zero-clearance fittings. To install, weld a tube adapter to the tubing with a brazing ring, then mate the tube adapter to the fitting and screw on the nut. As the nut is tightened, the tube adapter compresses the O-ring, creating a strong seal.

The O-ring boss male will mate with an O-ring boss female only. The female is generally found on ports. The male has straight threads, a sealing face and an O-ring. The female has straight threads and a sealing face. The seal is made at the O-ring on the male and the sealing face on the female.

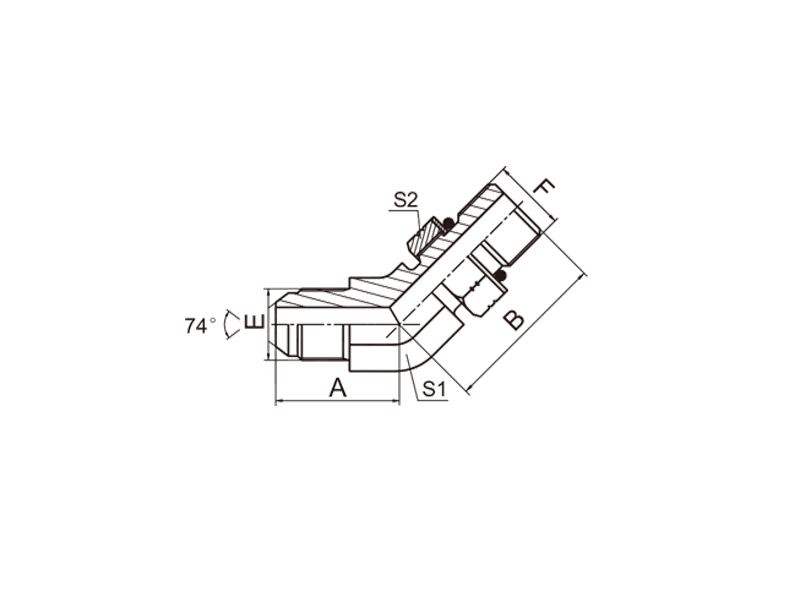

PART NO.   THREAD  O-RING    DIMENSIONS
E F F END A B S1 S2
1JO4-04OG 7/16"X20 7/16"X20 O904 21 24 11 17
1JO4-04-06OG 7/16"X20 9/16"X18 O906 22.3 27.5 14 19
1JO4-04-08OG 7/16"X20 3/4"X16 O908 24.5 32.5 19 24
1JO4-05OG 1/2"X20 1/2"X20 O905 22 26.7 14 17
1JO4-05-04OG 1/2"X20 7/16"X20 O904 22 26.7 14 17
1JO4-06OG 9/16"X18 9/16"X18 O906 23.5 28 14 19
1JO4-06-04OG 9/16"X18 7/16"X20 O904 22.8 26 14 17
1JO4-06-05OG 9/16"X18 1/2"X20 O905 22.8 26 14 17
1JO4-06-08OG 9/16"X18 3/4"X16 O908 25 32.5 19 24
1JO4-06-10OG 9/16"X18 7/8"X14 O910 25.5 38.5 22 27
1JO4-08OG 3/4"X16 3/4"X16 O908 25.8 32.5 19 24
1JO4-08-06OG 3/4"X16 9/16"X18 O906 25.5 28 19 19
1JO4-08-10OG 3/4"X16 7/8"X14 O910 28 38.7 22 27
1JO4-08-12OG 3/4"X16 1.1/16"X12 O912 30 43.9 27 32
1JO4-10OG 7/8"X14 7/8"X14 O910 29.5 38.7 22 27
1JO4-10-08OG 7/8"X14 3/4"X16 O908 29.5 33 22 27
1JO4-10-12OG 7/8"X14 1.1/16"X12 O912 33 43.9 27 32
1JO4-12OG 1.1/16"X12 1.1/16"X12 O912 34 43.5 27 32
1JO4-12-10OG 1.1/16"X12 7/8"X14 O910 34 42 27 27
1JO4-12-16OG 1.1/16"X12 1.5/16"X12 O916 37 45.5 33 41
1JO4-14OG 1.3/16"X12 1.3/16"X12 O914 37 44 30 36
1JO4-16OG 1.5/16"X12 1.5/16"X12 O916 38 45.5 33 41
1JO4-16-12OG 1.5/16"X12 1.1/16"X12 O912 38 45 33 32
1JO4-16-20OG 1.5/16"X12 1.5/8"X12 O920 40.5 47 41 50
1JO4-20OG 1.5/8"X12 1.5/8"X12 O920 42 48.5 41 50
1JO4-20-24OG 1.5/8"X12 1.7/8"X12 O924 46 50 48 55
1JO4-24OG 1.7/8"X12 1.7/8"X12 O924 48 50 48 55
1JO4-32OG 2.1/2"X12 2.1/2"X12 O932 58 54 63 70

Note: Nut and sleeve should be ordered speparately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests



Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.    Delivery:As general,we can guarantee the delivery within one month.

2.    Port of loading: Ningbo or Shanghai

3.    Samples Fee: We can offord the samples fee.
