Hydraulic fittings come in a variety of shapes such as straight, elbow (at varying angles), and tee. Other ways to connect hydraulic hoses include hydraulic quick couplers, as well as through some hydraulic hose adapters and plugs. Products differ by hydraulic hose ID, Hydraulic fitting connection type, fitting shape and other considerations.
Metric threads
Also known as Metric French GAZ 24°
These seal on a 24° cone seat located internally on the male connector using straight fine metric threads.
Metric French GAZ series uses fractional number metric OD tubing, as shown in the table.
Metric French Millimetric series uses whole number metric OD tubing. The two series are not interconnectable.
The male will mate with a straight thread female swivel with spherical nose seat.
The same male also mates with flareless tube, Tube Nut and Compression Olive (Cutting Ring). Tightening of the female nut compresses the olive causing it cut into the tube, thereby forming a seal between the tube, olive and 24° male cone

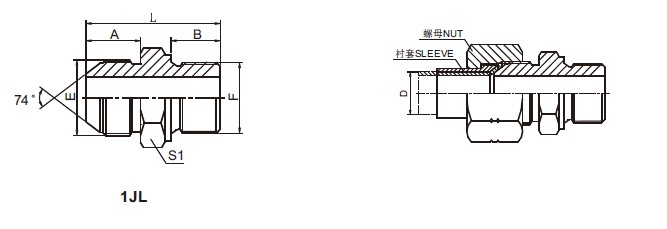

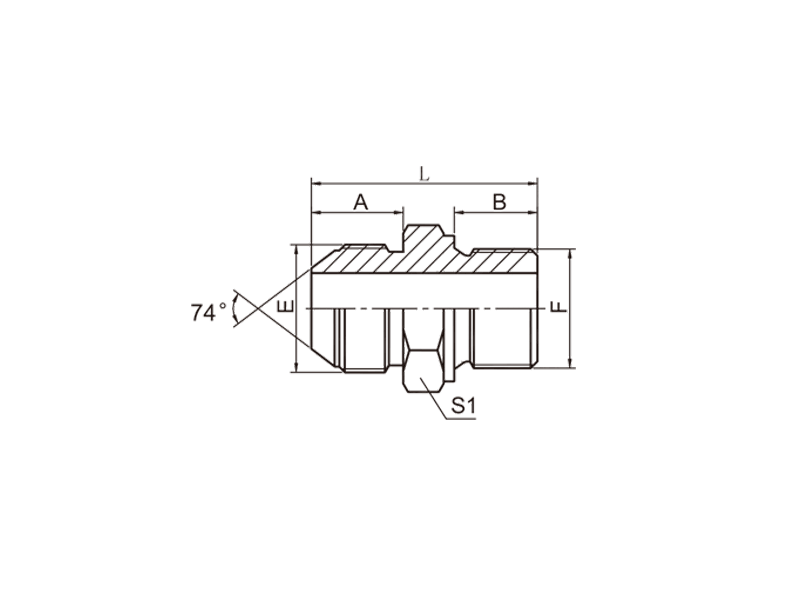

PART NO. | THREAD | SEAL | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | F END | A | B | L | S1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-04-10 | 7/16"X20 | M10X1 | ZHD-10 | 14 | 8 | 29 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-04-12 | 7/16"X20 | M12X1.5 | ZHD-12 | 14 | 12 | 32.5 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-06-12 | 9/16"X18 | M12X1.5 | ZHD-12 | 14.1 | 12 | 33.5 | 17 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-06-14 | 9/16"X18 | M14X1.5 | ZHD-14 | 14.1 | 12 | 32 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-06-18 | 9/16"X18 | M18X1.5 | ZHD-18 | 14.1 | 12 | 35.5 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-06-22 | 9/16"X18 | M22X1.5 | ZHD-22 | 14.1 | 14 | 38 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-08-16 | 3/4"X16 | M16X1.5 | ZHD-16 | 16.7 | 12 | 37 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-08-18 | 3/4"X16 | M18X1.5 | ZHD-18 | 16.7 | 12 | 37.5 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-08-22 | 3/4"X16 | M22X1.5 | ZHD-22 | 16.7 | 14 | 40.5 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-10-18 | 7/8"X14 | M18X1.5 | ZHD-18 | 19.3 | 12 | 40.5 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-10-22 | 7/8"X14 | M22X1.5 | ZHD-22 | 19.3 | 14 | 43 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-12-22 | 1.1/16"X12 | M22X1.5 | ZHD-22 | 21.9 | 14 | 48.5 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-12-27 | 1.1/16"X12 | M27X2 | ZHD-27 | 21.9 | 16 | 49 | 36 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JL-16-33 | 1.5/16"X12 | M33X2 | ZHD-33 | 23.1 | 18 | 56 | 41 |
High quality hydraulic fitting can satisfy your different needs with
its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
