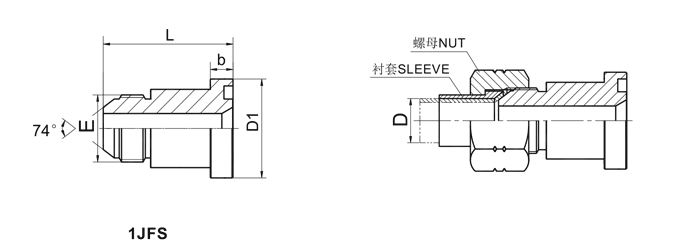

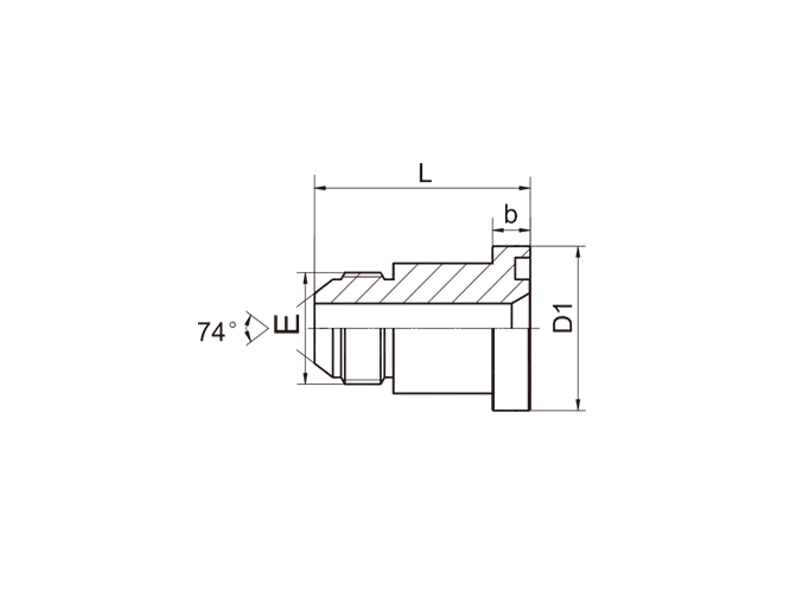

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1JFS JIC MALE 74°CONE / S-SERIES FLANGE ISO 6162-2
PART NO. | THREAD E | FLANGE SIZE | O RING | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
b | D1 | L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-08 | 3/4"X16 | 1/2" | O210 | 7.75 | 31.7 | 47.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-10-08 | 7/8"X14 | 1/2" | O210 | 7.75 | 31.7 | 50 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-10-12 | 7/8"X14 | 3/4" | O214 | 8.76 | 41.3 | 55 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-12 | 1.1/16"X12 | 3/4" | O214 | 8.76 | 41.3 | 56.7 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-12-16 | 1.1/16"X12 | 1" | O219 | 9.53 | 47.6 | 61.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-16-12 | 1.5/16"X12 | 3/4" | O214 | 8.76 | 41.3 | 57.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-16 | 1.5/16"X12 | 1" | O219 | 9.53 | 47.6 | 62.8 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-16-20 | 1.5/16"X12 | 1.1/4" | O222 | 10.29 | 54 | 67.7 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-20-16 | 1.5/8"X12 | 1" | O219 | 9.53 | 47.6 | 64 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-20 | 1.5/8"X12 | 1.1/4" | O222 | 10.29 | 54 | 68.9 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-20-24 | 1.5/8"X12 | 1.1/2" | O225 | 12.57 | 63.5 | 73.5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-24-20 | 1.7/8"X12 | 1.1/4" | O222 | 10.29 | 54 | 72 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1JFS-24 | 1.7/8"X12 | 1.1/2" | O225 | 12.57 | 63.5 | 76.7 |
Note:Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube.
