HYDRAULIC 1FO ORFS MALE O-RING/SAE O-RING BOSS S-SERIES ISO 11926-2
  • Air ProHYDRAULIC 1FO ORFS MALE O-RING/SAE O-RING BOSS S-SERIES ISO 11926-2

HYDRAULIC 1FO ORFS MALE O-RING/SAE O-RING BOSS S-SERIES ISO 11926-2

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1FO ORFS MALE O-RING/SAE O-RING BOSS S-SERIES ISO 11926-2

Model:1FO

Send Inquiry

Product Description

HYDRAULIC 1FO ORFS MALE O-RING/SAE O-RING BOSS S-SERIES ISO 11926-2

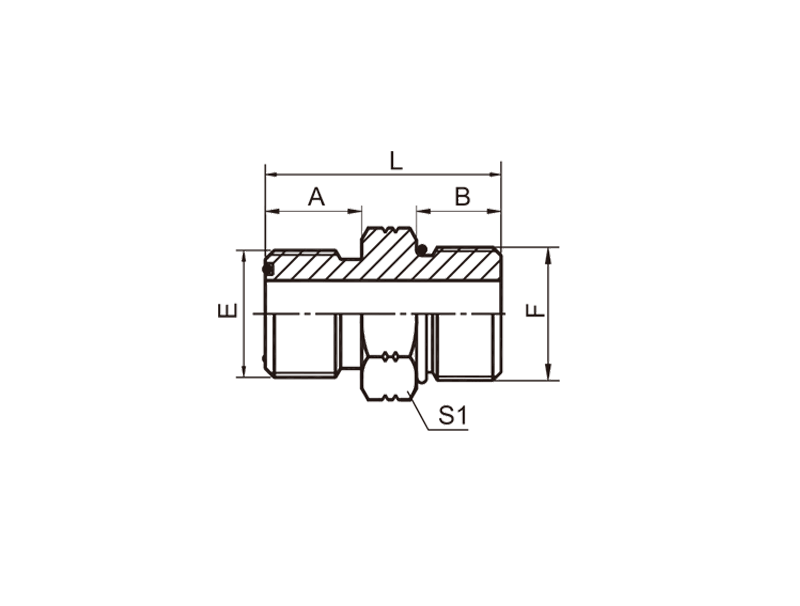

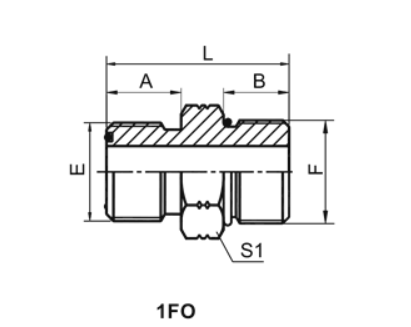

 PART NO.    THREAD  O-RING     DIMENSIONS
E F E END F END A B L S1
1FO-04 9/16"X18 7/16"X20 O011 O904 9.8 11 28.7 17
1FO-04-05 9/16"X18 1/2"X20 O011 O905 9.8 11 28.7 17
1FO-04-06 9/16"X18 9/16"X18 O011 O906 9.8 12 29.5 17
1FO-04-08 9/16"X18 3/4"X16 O011 O908 9.8 14 33.5 22
1FO-06-04 11/16"X16 7/16"X20 O012 O904 11.2 11 31 19
1FO-06-05 11/16"X16 1/2"X20 O012 O905 11.2 11 30.9 19
1FO-06 11/16"X16 9/16"X18 O012 O906 11.2 12 31.9 19
1FO-06-08 11/16"X16 3/4"X16 O012 O908 11.2 14 35 22
1FO-06-10 11/16"X16 7/8"X14 O012 O910 11.2 16 38.5 27
1FO-08-06 13/16"X16 9/16"X18 O014 O906 12.8 12 34.5 22
1FO-08 13/16"X16 3/4"X16 O014 O908 12.8 14 36.6 22
1FO-08-10 13/16"X16 7/8"X14 O014 O910 12.8 16 40.5 27
1FO-08-12 13/16"X16 1.1/16"X12 O014 O912 12.8 18.5 44.5 32
1FO-10 1"X14 7/8"X14 O016 O910 15.5 16 43.1 27
1FO-10-08 1"X14 3/4"X16 O016 O908 15.5 14 41 27
1FO-10-12 1"X14 1.1/16"X12 O016 O912 15.5 18.5 47 32
1FO-12-10 1.3/16"X12 7/8"X14 O018 O910 17 16 46 32
1FO-12 1.3/16"X12 1.1/16"X12 O018 O912 17 18.5 48.6 32
1FO-12-16 1.3/16"X12 1.5/16"X12 O018 O916 17 18.5 49.8 38
1FO-16-12 1.7/16"X12 1.1/16"X12 O021 O912 17.5 18.5 50 38
1FO-16 1.7/16"X12 1.5/16"X12 O021 O916 17.5 18.5 50.3 38
1FO-16-20 1.7/16"X12 1.5/8"X12 O021 O920 17.5 18.5 52 50
1FO-20-16 1.11/16"X12 1.5/16"X12 O025 O916 17.5 18.5 52 46
1FO-20 1.11/16"X12 1.5/8"X12 O025 O920 17.5 18.5 52.3 50
1FO-24-20 2"X12 1.5/8"X12 O029 O920 17.5 18.5 54 55
1FO-24 2"X12 1.7/8"X12 O029 O924 17.5 18.5 54.1 55

Note: F end is connected with ISO 11926-1 port.
