HYDRAULIC 1FLW-PM SAE FLANGE/WELD TUBE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1FLW-PM SAE FLANGE/WELD TUBE

Model:1FLW-PM

Send Inquiry

Product Description

HYDRAULIC 1FLW-PM SAE FLANGE/WELD TUBE

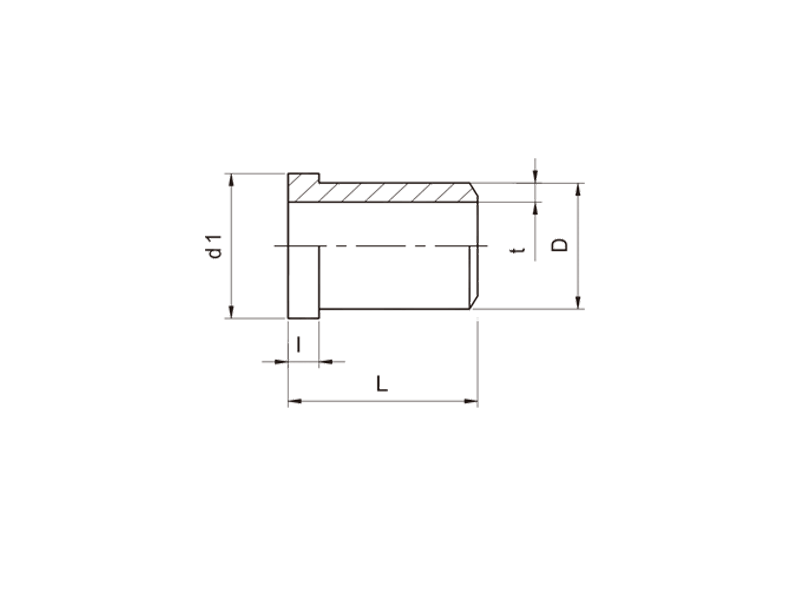

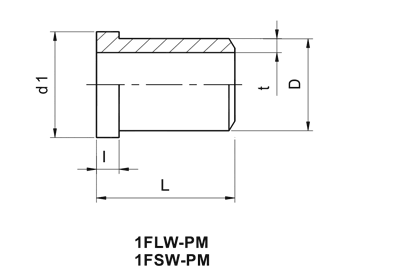

 PART NO. FLANGE SIZE DXt  DIMENSION  MPa
d1 D l L
3000PSI
1FLW-08-16X2PM 1/2” 16X2 30.2 16 6.8 41 34.5
1FLW-08-20X2.5PM 1/2” 20X2.5 20
1FLW-12-25X3PM 3/4” 25X3 38.1 25 6.8 50
1FLW-16-25X3PM 1” 25X3 44.4 25 8 50
1FLW-16-28X3PM 1” 28X3 28
1FLW-16-30X4PM 1” 30X4 30
1FLW-16-38X5PM 1” 38X5 38
1FLW-20-25X3PM 1.1/4” 25X3 50.8 25 8 55 27.6
1FLW-20-30X4PM 1.1/4” 30X4 30
1FLW-20-38X5PM 1.1/4” 38X5 38
1FLW-20-42X6PM 1.1/4” 42X6 42
1FLW-24-38X4PM 1.1/2” 38X4 60.3 38 8 57 20.7
1FLW-24-42X5PM 1.1/2” 42X5 42
1FLW-24-45X5PM 1.1/2” 45X5 45
1FLW-24-50X6PM 1.1/2” 50X6 50
1FLW-32-55X5PM 2” 55X5 71.4 55 9.6 57
1FLW-32-60X8PM 2” 60X8 60
1FLW-40-65X6PM 2.1/2” 65X6 84.1 65 9.6 58 17.2
1FLW-40-70X7.5PM 2.1/2” 70X7.5 70
1FLW-48-80X6PM 3” 80X6 101.6 80 9.6 58 13.8
1FLW-48-90X8PM 3” 90X8 90
6000PSI
1FSW-08-16X2PM 1/2” 16X2 31.7 16 7.8 34 40
1FSW-08-20X2.5PM 1/2” 20X2.5 20
1FSW-12-16X2PM 3/4” 16X2 41.3 16 8.8 38
1FSW-12-20X2.5PM 3/4” 20X2.5 20
1FSW-12-25X4PM 3/4” 25X4 25
1FSW-16-25X3PM 1” 25X3 47.6 25 9.5 40
1FSW-16-30X4PM 1” 30X4 30
1FSW-16-38X5PM 1” 38X5 38
1FSW-20-25X3PM 1.1/4” 25X3 54 25 10.3 45
1FSW-20-30X4PM 1.1/4” 30X4 30
1FSW-20-38X5PM 1.1/4” 38X5 38
1FSW-20-42X6PM 1.1/4” 42X6 42
1FSW-24-38X5PM 1.1/2” 38X5 63.5 38 12.6 50
1FSW-24-45X6.5PM 1.1/2” 45X6.5 45
1FSW-24-48X8PM 1.1/2” 48X8 48
1FSW-24-50X8PM 1.1/2” 50X8 50
1FSW-32-60X8PM 2” 60X8 79.4 60 12.6 58
1FSW-32-60X10PM 2” 60X10 60
