HYDRAULIC 1FFS9 90°ELBOW ORFS MALE O-RING/ S-SERIES FLANGE ISO 6162-2
  • Air ProHYDRAULIC 1FFS9 90°ELBOW ORFS MALE O-RING/ S-SERIES FLANGE ISO 6162-2

HYDRAULIC 1FFS9 90°ELBOW ORFS MALE O-RING/ S-SERIES FLANGE ISO 6162-2

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1FFS9 90°ELBOW ORFS MALE O-RING/ S-SERIES FLANGE ISO 6162-2

Model:1FFS9

Send Inquiry

Product Description

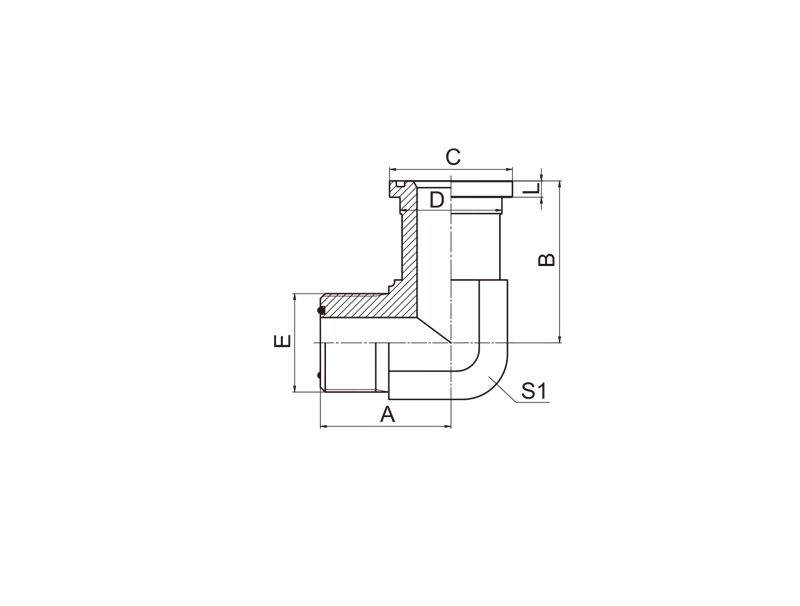

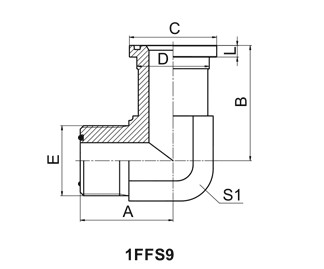

HYDRAULIC 1FFS9 90°ELBOW ORFS MALE O-RING/ S-SERIES FLANGE ISO 6162-2



 PART NO.  THREAD  O-RING    DIMENSIONS
E FLANGE SIZE E END  FLANGE END A B C D L S1
1FFS9-12 1.3/16X12 3/4" O018 O214 40.3 54.1 41.3 32 8.76 30
1FFS9-16 1.7/16"X12 1" O021 O219 44.5 60.2 47.6 38 9.53 36
1FFS9-20 1.11/16"X12 1.1/4" O025 O222 47.5 66.5 54 44 10.29 41
1FFS9-24 2"X12 1.1/2" O029 O225 52 79.3 63.5 51 12.57 48

Hot Tags: HYDRAULIC 1FFS9 90°ELBOW ORFS MALE O-RING/ S-SERIES FLANGE ISO 6162-2, China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
