HYDRAULIC 1FFL9 90°ELBOW ORFS MALE O-RING / L-SERIES FLANGE ISO 6162-1
  • Air ProHYDRAULIC 1FFL9 90°ELBOW ORFS MALE O-RING / L-SERIES FLANGE ISO 6162-1

HYDRAULIC 1FFL9 90°ELBOW ORFS MALE O-RING / L-SERIES FLANGE ISO 6162-1

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1FFL9 90°ELBOW ORFS MALE?O-RING / L-SERIES FLANGE ISO 6162-1

Model:1FFL9

Send Inquiry

Product Description

HYDRAULIC 1FFL9 90°ELBOW ORFS MALE O-RING / L-SERIES FLANGE ISO 6162-1

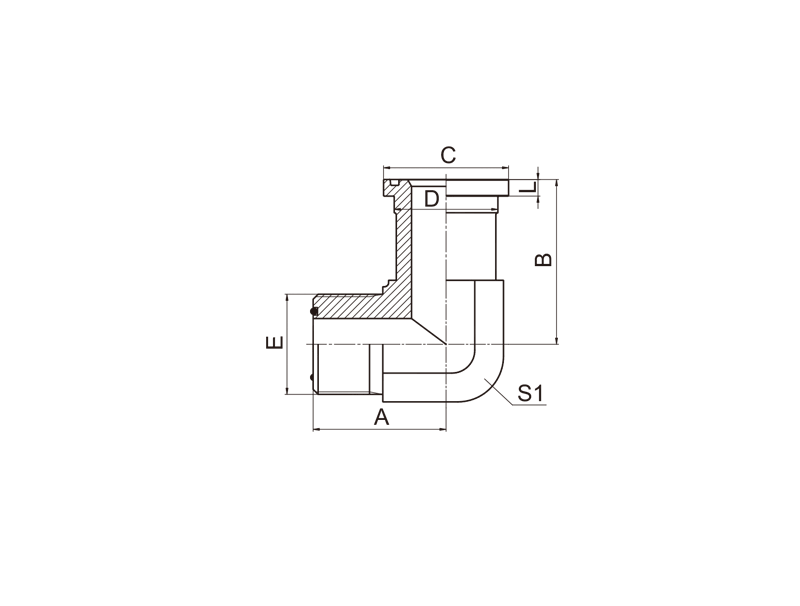

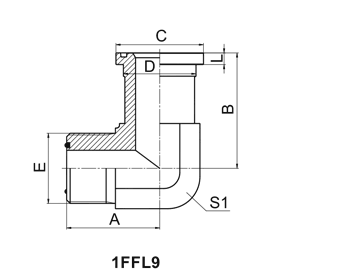

 PART NO.  THREAD  O-RING    DIMENSIONS
E FLANGE SIZE E END  FLANGE END A B C D L S1
1FFL9-12 1.3/16X12 3/4" O018 O214 41 54.1 38.1 31.7 6.73 30
1FFL9-16 1.7/16"X12 1" O021 O219 44.5 60.2 44.4 38 8 36
1FFL9-20 1.11/16"X12 1.1/4" O025 O222 47.5 66.5 50.8 43 8 41
1FFL9-24 2"X12 1.1/2" O029 O225 52 79.5 60.3 50 8 48
