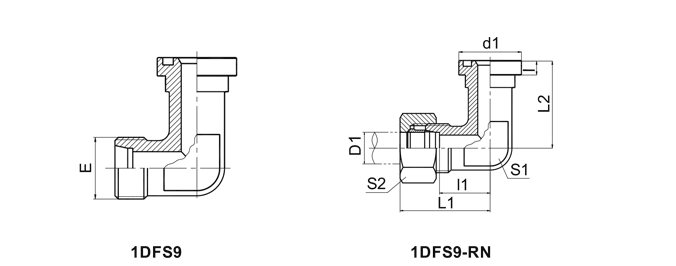

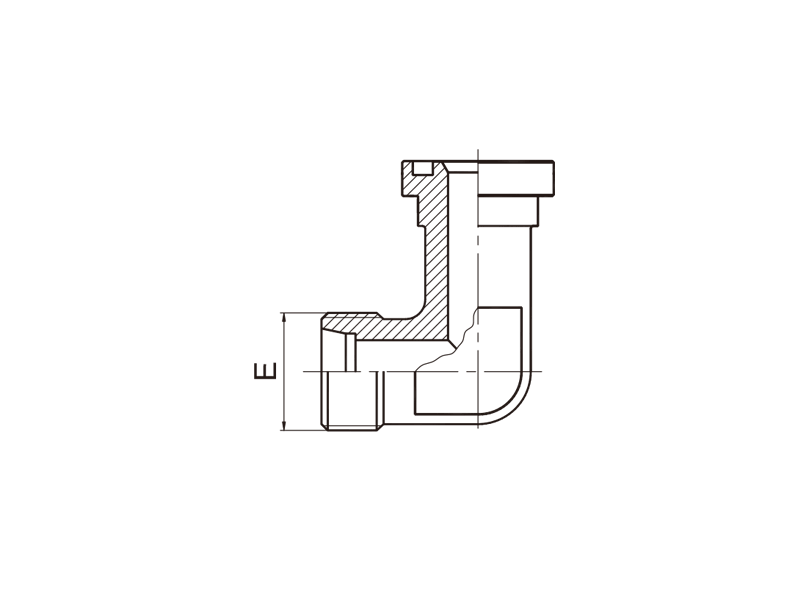

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1DFS9 90°ELBOW METRIC MALE BITE TYPE / H-SERIES FLANGE ISO 6162-2
PART NO. | THREAD E | FLANGE SIZE | O-RING | DIMENSIONS |
MPa |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TUBE O.D. | d1 | l | l1 | L1 | L2 | S1 | S2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-24-08 | M24X1.5 | 1/2" | 16 | O210 | 31.7 | 7.8 | 29.5 | 48 | 39 | 24 | 30 |
40 HEAVY SERIES S |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-24-12 | M24X1.5 | 3/4" | 16 | O214 | 41.3 | 8.8 | 36.5 | 55 | 48 | 32 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-30-12 | M30X2 | 3/4" | 20 | O214 | 41.3 | 8.8 | 35.5 | 57 | 48 | 32 | 36 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-36-12 | M36X2 | 3/4" | 25 | O214 | 41.3 | 8.8 | 36 | 60 | 48 | 32 | 46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-36-16 | M36X2 | 1" | 25 | O219 | 47.6 | 9.5 | 41 | 65 | 60 | 41 | 46 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-42-16 | M42X2 | 1" | 30 | O219 | 47.6 | 9.5 | 41.5 | 68 | 60 | 41 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-42-20 | M42X2 | 1.1/4" | 30 | O222 | 54 | 10.3 | 44.5 | 71 | 68 | 46 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-52-20 | M52X2 | 1.1/4" | 38 | O222 | 54 | 10.3 | 45 | 76 | 68 | 46 | 60 |
31.5 HEAVY SERIES S |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1DFS9-52-24 | M52X2 | 1.1/2" | 38 | O225 | 63.5 | 12.6 | 56 | 87 | 76 | 50 | 60 |
Note: In case if you are interested to order the adaptr in complete set with cutting ring and nut,it is necessary to insert suffix“RN”after our part NO.,for example 1DFL-52-24RN.
