HYDRAULIC 1BO BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDEDSEAL / SAE O-RING BOSS L-SERIES ISO 11926-3
  • Air ProHYDRAULIC 1BO BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDEDSEAL / SAE O-RING BOSS L-SERIES ISO 11926-3

HYDRAULIC 1BO BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDEDSEAL / SAE O-RING BOSS L-SERIES ISO 11926-3

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1BO BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDEDSEAL / SAE O-RING BOSS L-SERIES ISO 11926-3

Model:1BO

Send Inquiry

Product Description

HYDRAULIC 1BO BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDEDSEAL / SAE O-RING BOSS L-SERIES ISO 11926-3

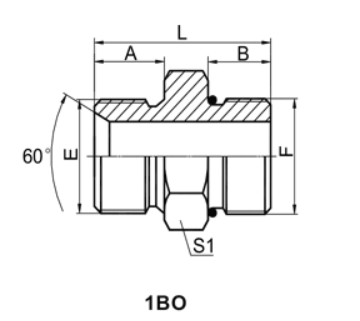

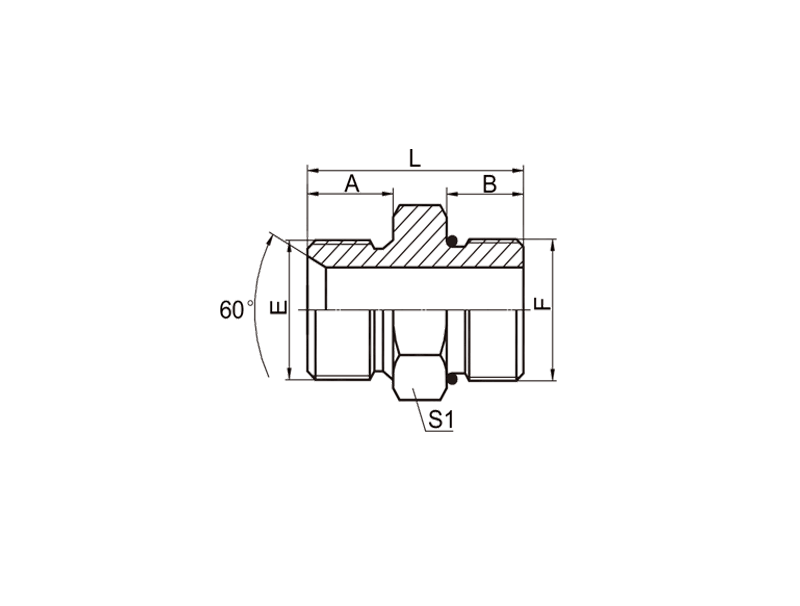

 PART NO.    THREAD  O-RING    DIMENSIONS
E F F END A B L S1
1BO-04 G1/4"X19 7/16"X20 O904 12 9.1 29.5 19
1BO-04-05 G1/4"X19 1/2"X20 O905 12 9.1 29.5 19
1BO-04-06 G1/4"X19 9/16"X18 O906 12 9.9 32 19
1BO-04-08 G1/4"X19 3/4"X16 O908 12 11.1 31 22
1BO-06 G3/8"X19 9/16"X18 O906 13.5 9.9 33.5 22
1BO-06-04 G3/8"X19 7/16"X20 O904 13.5 9.1 33 22
1BO-06-08 G3/8"X19 3/4"X16 O908 13.5 11.1 36 24
1BO-06-10 G3/8"X19 7/8"X14 O910 13.5 12.7 39.5 27
1BO-08 G1/2"X14 3/4"X16 O908 16 11.1 38 27
1BO-08-06 G1/2"X14 9/16"X18 O906 16 9.9 36 27
1BO-08-10 G1/2"X14 7/8"X14 O910 16 12.7 42 27
1BO-08-12 G1/2"X14 1.1/16"X12 O912 16 15.1 42.5 36
1BO-10 G5/8"X14 7/8"X14 O910 17.5 12.7 43.5 30
1BO-10-08 G5/8"X14 3/4"X16 O908 17.5 11.1 41.5 30
1BO-10-12 G5/8"X14 1.1/16"X12 O912 17.5 15.1 47 34
1BO-12 G3/4"X14 1.1/16"X12 O912 18.5 15.1 48 34
1BO-12-08 G3/4"X14 3/4"X16 O908 18.5 11.1 40.5 32
1BO-12-10 G3/4"X14 7/8"X14 O910 18.5 12.7 45.5 32
1BO-12-14 G3/4"X14 1.3/16"X12 O914 18.5 15.1 48 38
1BO-12-16 G3/4"X14 1.5/16"X12 O916 18.5 15.1 50.7 41
1BO-16 G1"X11 1.5/16"X12 O916 20.5 15.1 52.6 41
1BO-16-10 G1"X11 7/8"X14 O910 20.5 12.7 49.5 41
1BO-16-12 G1"X11 1.1/16"X12 O912 20.5 15.1 52 41
1BO-16-14 G1"X11 1.3/16"X12 O914 20.5 15.1 52 41
1BO-16-20 G1"X11 1.5/8"X12 O920 20.5 15.1 54.7 50
1BO-20 G1.1/4"X11 1.5/8"X12 O920 20.5 15.1 54.7 50
1BO-20-16 G1.1/4"X11 1.5/16"X12 O916 20.5 15.1 54.7 50
1BO-24 G1.1/2"X11 1.7/8"X12 O924 23 15.1 57 55
