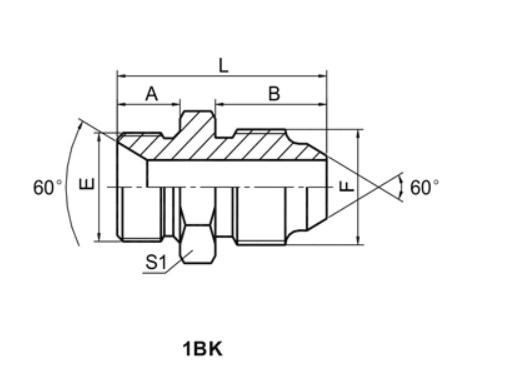

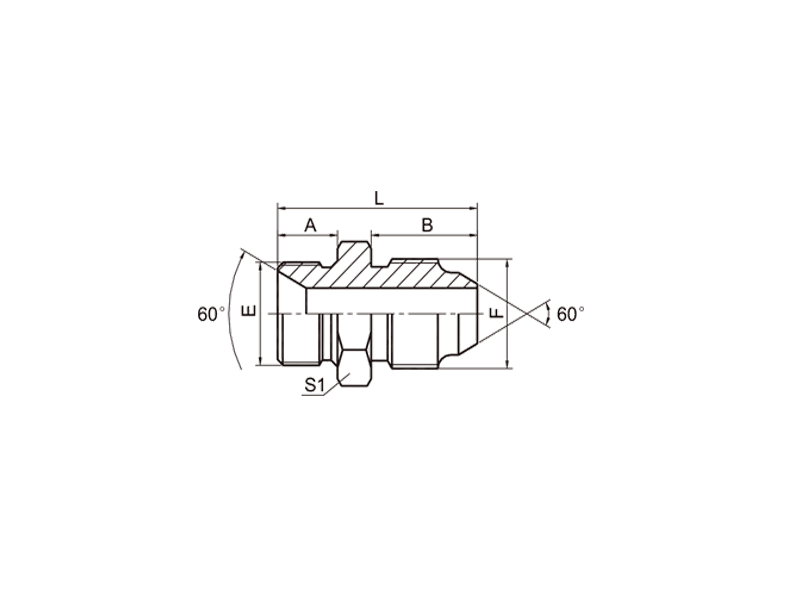

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 1BK BSP MALE 60° SEAT/JIS METRIC MALE 60° CONE
PART NO. | THREAD | DIMENSIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | A | B | L | S1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-04-14 | G1/4"X19 | M14X1.5 | 12 | 15.5 | 33.5 | 19 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-04-18 | G1/4"X19 | M18X1.5 | 12 | 18 | 38 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-06-18 | G3/8"X19 | M18X1.5 | 13.5 | 18 | 39.5 | 22 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-06-22 | G3/8"X19 | M22X1.5 | 13.5 | 20 | 41.5 | 24 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-08-18 | G1/2"X14 | M18X1.5 | 16 | 18 | 44 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-08-20 | G1/2"X14 | M20X1.5 | 16 | 20 | 46 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-08-22 | G1/2"X14 | M22X1.5 | 16 | 20 | 46 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-08-24 | G1/2"X14 | M24X1.5 | 16 | 22 | 48 | 27 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-10-24 | G5/8"X14 | M24X1.5 | 17.5 | 22 | 49.5 | 30 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-12-30 | G3/4"X14 | M30X1.5 | 18.5 | 23 | 52.5 | 32 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-16-33 | G1"X11 | M33X1.5 | 20.5 | 27 | 60.5 | 41 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BK-20-36 | G1.1/4"X11 | M36X1.5 | 20.5 | 28 | 63.5 | 50 |
