we produce hydraulic elbow adapters not only standard but also comply with customers drawings. we devoted ourselves covering most of Europe and the Americas market.These hydraulic fitting Products are widely used in construction machinery,automotive manufacturing,industrial pipelines,ships,energy,national defense,automation and other fields.
Also known as Metric French GAZ 24°
These seal on a 24° cone seat located internally on the male connector using straight fine metric threads.
Metric French GAZ series uses fractional number metric OD tubing, as shown in the table.
Metric French Millimetric series uses whole number metric OD tubing. The two series are not interconnectable.
The male will mate with a straight thread female swivel with spherical nose seat.
The same male also mates with flareless tube, Tube Nut and Compression Olive (Cutting Ring). Tightening of the female nut compresses the olive causing it cut into the tube, thereby forming a seal between the tube, olive and 24° male cone
ISO 6149 Metric Port and Stud Ends
ISO 261 threads & O-ring seal
The male half has an O-ring and a straight thread, while the female half has a machined surface, a chamfer, and a straight thread. The O-ring on the male half compresses on the chamfer of the female port, to make the seal. (The ISO 6149 is the same as the SAE J1926-1O-ring Boss, except the ISO 6149 has metric threads.) The straight threads mesh to form a strong mechanical bond.

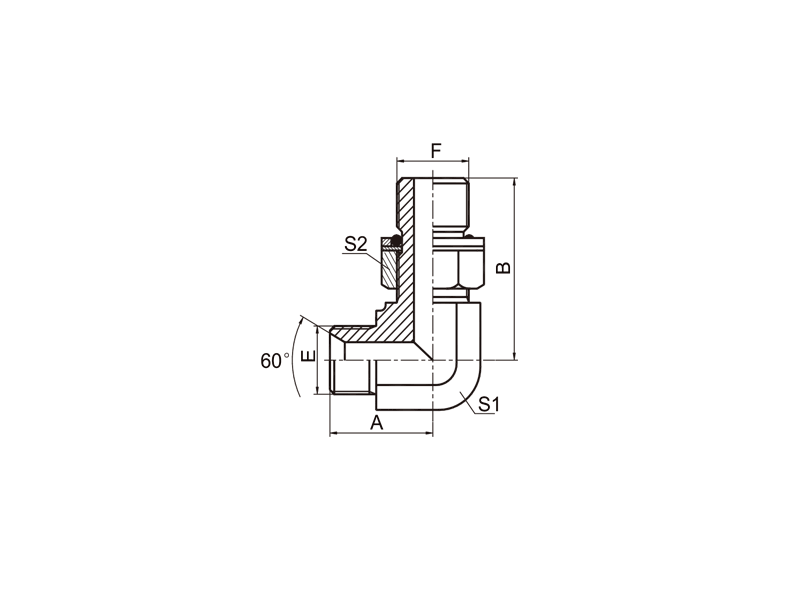

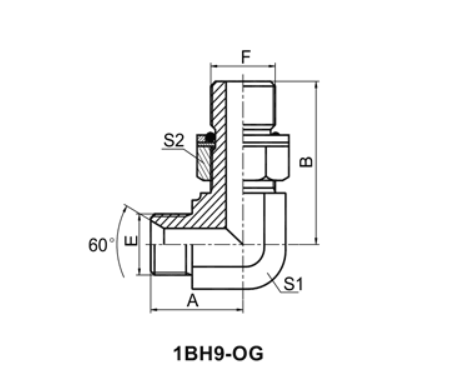

PART NO. | THREAD | O-RING | DIMENSIONS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
E | F | F END | A | B | S1 | S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-02-10OG | G1/8"X28 | M10X1 | O08.1X1.6 | 20 | 26.5 | 11 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-02-12OG | G1/8"X28 | M12X1.5 | O09.3X2.4 | 20 | 30.5 | 11 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-04-12OG | G1/4"X19 | M12X1.5 | O09.3X2.4 | 24.5 | 32 | 14 | 17 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-04-14OG | G1/4"X19 | M14X1.5 | O11.3X2.4 | 24.5 | 32.5 | 14 | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-04-16OG | G1/4"X19 | M16X1.5 | O13.3X2.4 | 26.5 | 34.8 | 16 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-06-14OG | G3/8"X19 | M14X1.5 | O11.3X2.4 | 27.5 | 34 | 16 | 19 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-06-16OG | G3/8"X19 | M16X1.5 | O13.3X2.4 | 27.5 | 34.8 | 16 | 22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-06-18OG | G3/8"X19 | M18X1.5 | O15.3X2.4 | 28.5 | 37 | 19 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-08-18OG | G1/2"X14 | M18X1.5 | O15.3X2.4 | 34.5 | 39.5 | 22 | 24 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-08-22OG | G1/2"X14 | M22X1.5 | O19.3X2.4 | 34.5 | 40.2 | 22 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-10-22OG | G5/8"X14 | M22X1.5 | O19.3X2.4 | 35 | 40.2 | 22 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-12-22OG | G3/4"X14 | M22X1.5 | O19.3X2.4 | 40 | 43.5 | 27 | 27 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-12-27OG | G3/4"X14 | M27X2 | O23.5X3.0 | 40 | 48.5 | 27 | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-16-27OG | G1"X11 | M27X2 | O23.5X3.0 | 46 | 52 | 33 | 32 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-16-33OG | G1"X11 | M33X2 | O29.5X3.0 | 46 | 52.5 | 33 | 41 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-20-42OG | G1.1/4"X11 | M42X2 | O38.5X3.0 | 50.5 | 57.2 | 41 | 50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
1BH9-24-48OG | G1.1/2"X11 | M48X2 | O44.5X3.0 | 57.5 | 62.5 | 48 | 55 |
Note:fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring.
Product Details
High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests
Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
Deliver,Shipping And Serving
1. Delivery:As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
3. Samples Fee: We can offord the samples fee.
