BRITISH HYDRAULIC FITTING 1BG4-OG 45 DGREE BSP MALE 60 DEGREE SEAT / BSP MALE O-RING
  • Air ProBRITISH HYDRAULIC FITTING 1BG4-OG 45 DGREE BSP MALE 60 DEGREE SEAT / BSP MALE O-RING

BRITISH HYDRAULIC FITTING 1BG4-OG 45 DGREE BSP MALE 60 DEGREE SEAT / BSP MALE O-RING

We can offer more than 300 series like high pressure hose fittings, hose assembly and connectors. The main hydraulic fittings’ material is carbon steel,but stainless steel, brass, aluminum alloy and others are available upon customer’s request. We also supply all kinds of forging parts make special by customer's requirement.

Model:1BG4-OG

Send Inquiry

Product Description

BRITISH HYDRAULIC Fitting 1BG4-OG 45 DGREE BSP MALE 60 DEGREE SEAT / BSP MALE O-RING

we supply British Hydraulic Fitting BSP male and female not only standard but also comply with customers drawing.we devoted ourselves covering most ofEuropeand theAmericasmarket.

These hydraulic fitting Products are widely used in construction machinery,automotive manufacturing,industrial pipelines,ships,energy,national defense,automation and other fields.

Product Feature And Application

British Standard hydraulic fitting Parallel Popular couplings have British Standard Pipe (BSP) threads, also known as Whitworth threads.  These can be parallel threads (BSPP) with a 30° inverted flare or tapered threads (BSPT), with a 30° inverted flare. Port connections are usually made with BSPP threads and a soft metal cutting ring for sealing. The BSPP (parallel) male will mate with a BSPOR (parallel) female or a female port. The BSPP male has straight threads and a 30° seat. The BSPOR female has straight threads, a 30° seat, and O-ring. The female port has straight threads and a spotface. The seal on the port is made with an O-ring or soft metal washer on the male. The BSPP (parallel) connector is similar to, but not interchangeable with, the NPSM connector. The thread pitch is different in most sizes, and the thread angle is 55° instead of the 60° angle found on NPSM threads.

The BSPT (tapered) male will mate with a BSPT (tapered) female, or a BSPOR (parallel) female. The BSPT male has tapered threads. When mating with either the BSPT (tapered) female or the BSPOR (parallel) female port, the seal is made on the threads. The BSPT connector is similar to, but not interchangeable with, the NPTF connector. The thread pitch is different in most cases, and the thread angle is 55° instead of the 60° angle found on NPTF threads.

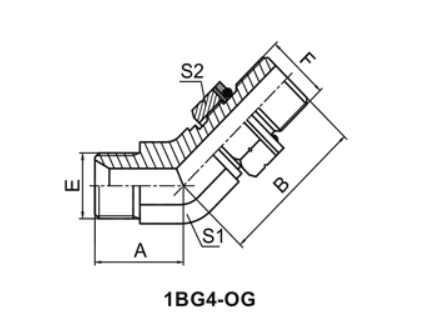

 PART NO.     THREAD  O-RING      DIMENSIONS
E F F END A B S1 S2
1BG4-04OG G1/4"X19 G1/4"X19 O111 22 28 14 19
1BG4-04-06OG G1/4"X19 G3/8"X19 O113 21 30 16 22
1BG4-04-08OG G1/4"X19 G1/2"X14 O115 22.5 36 22 27
1BG4-06OG G3/8"X19 G3/8"X19 O113 21 30 16 22
1BG4-06-08OG G3/8"X19 G1/2"X14 O115 23.5 36 22 27
1BG4-08OG G1/2"X14 G1/2"X14 O115 27 36 22 27
1BG4-12OG G3/4"X14 G3/4"X14 O119 32 42 27 32
1BG4-12-16OG G3/4"X14 G1"X11 O217 32.5 44 33 41
1BG4-16OG G1"X11 G1"X11 O217 34 44 33 41
1BG4-20OG G1.1/4"X11 G1.1/4"X11 O222 38.5 47.5 41 50
1BG4-24OG G1.1/2"X11 G1.1/2"X11 O224 44 51.5 48 55

Note: F end is connected with DIN 3852 port.

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Srandard or as per drawing and samples (OEM)
7. Size: as per customers' requests



Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.    Delivery:As general,we can guarantee the delivery within one month.

2.    Port of loading: Ningbo or Shanghai

3.    Samples Fee: We can offord the samples fee.
