BRITISH HYDRAULIC Fitting 1BG-OG BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BSP MALE O-RING
  • Air ProBRITISH HYDRAULIC Fitting 1BG-OG BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BSP MALE O-RING

BRITISH HYDRAULIC Fitting 1BG-OG BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BSP MALE O-RING

We can offer more than 10,000 items like high pressure hydraulic hose fittings, hose assembly and adaptors. The main hydraulic fitting material is carbon steel. Alternative materials including free cutting steel, stainless steel, brass, aluminum alloy and others are available. And we can supply all kinds of forging parts make special by customer's requirement.

Model:1BG-OG

Send Inquiry

Product Description

BRITISHHYDRAULIC Fitting1BG-OG BSP MALE DOUBLE USE FOR 60° CONE SEAT OR BONDED SEAL / BSP MALE O-RING

we supplyBritishHydraulic FittingBSP male and female not only standard but also comply with customers drawing.we devoted ourselves covering most ofEuropeand theAmericasmarket.

Thesehydraulic fittingProducts are widely used in construction machinery,automotive manufacturing,industrial pipelines,ships,energy,national defense,automation and other fields.

Product Feature And Application

BritishStandardhydraulic fittingParallel Popular couplings haveBritishStandard Pipe (BSP) threads, also known as Whitworth threads.  These can be parallel threads (BSPP) with a 30° inverted flare or tapered threads (BSPT), with a 30° inverted flare. Port connections are usually made with BSPP threads and a soft metal cutting ring for sealing. The BSPP (parallel) male will mate with a BSPOR (parallel) female or a female port. The BSPP male has straight threads and a 30° seat. The BSPOR female has straight threads, a 30° seat, and O-ring. The female port has straight threads and a spotface. The seal on the port is made with an O-ring or soft metal washer on the male. The BSPP (parallel) connector is similar to, but not interchangeable with, the NPSM connector. The thread pitch is different in most sizes, and the thread angle is 55° instead of the 60° angle found on NPSM threads.

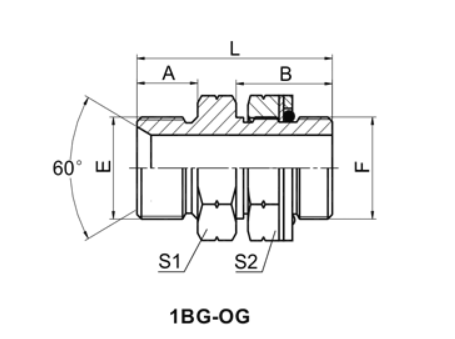

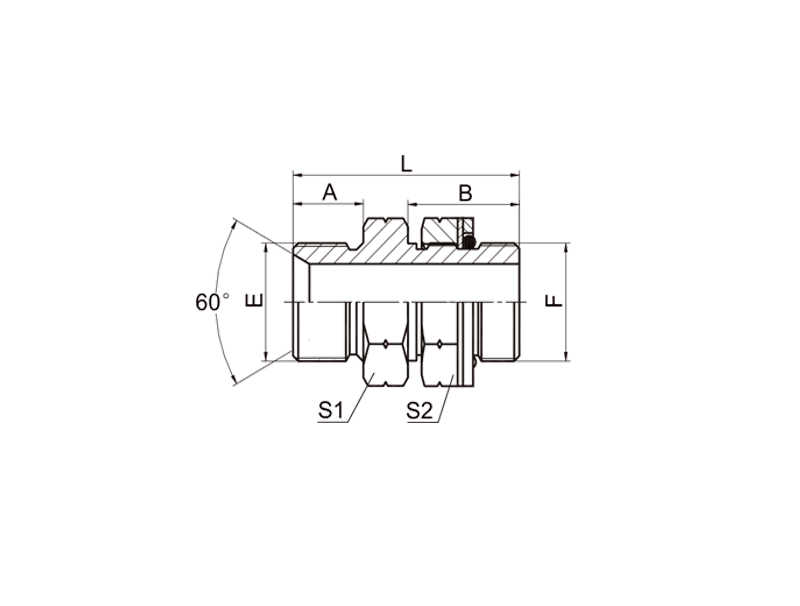

 PART NO.     THREAD  O-RING      DIMENSIONS
E F F END A B L S1 S2
1BG-04OG G1/4"X19 G1/4"X19 O111 12 21 39 19 19
1BG-04-06OG G1/4"X19 G3/8"X19 O113 12 24 42 19 22
1BG-06-04OG G3/8"X19 G1/4"X19 O111 13.5 21 42.5 22 19
1BG-06OG G3/8"X19 G3/8"X19 O113 13.5 24 45.5 22 22
1BG-06-08OG G3/8"X19 G1/2"X14 O115 13.5 28 49.5 22 27
1BG-08-06OG G1/2"X14 G3/8"X19 O113 16 24 50 27 22
1BG-08OG G1/2"X14 G1/2"X14 O115 16 28 54 27 27
1BG-12OG G3/4"X14 G3/4"X14 O119 18.5 32.5 62 32 32
1BG-16-08OG G1"X11 G1/2"X14 O115 20.5 28 61.5 41 27
1BG-16-12OG G1"X11 G3/4"X14 O119 20.5 32.5 66 41 32
1BG-16OG G1"X11 G1"X11 O217 20.5 32.5 66 41 41
1BG-20-08OG G1.1/4"X11 G1/2"X14 O115 20.5 33 63.5 50 27
1BG-20OG G1.1/4"X11 G1.1/4"X11 O222 20.5 30 68.5 50 50
1BG-24OG G1.1/2"X11 G1.1/2"X11 O224 23 34 72 55 55

Note: F end is connected with DIN 3852 port.

Product Details

High qualityhydraulic fittingcan satisfy your different needs with its special quality and features.
1.high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessories

Deliver,Shipping And Serving

1.Delivery : As general,we can guarantee the delivery within one month.

2.Port of Loading:Shanghai Or Ningbo
3.Samples Fee: we can afford the samples fee.
