ELBOW ADAPTOR BSP 45°  MALE SEAT 1B4
  • Air ProELBOW ADAPTOR BSP 45°  MALE SEAT 1B4

ELBOW ADAPTOR BSP 45° MALE SEAT 1B4

The elbow adaptor not only standard but also comply with customers drawings. we devoted ourselves covering most of Europe and the Americas market.These hydraulic fitting Products are widely used in construction machinery,automotive manufacturing,industrial pipelines,ships,energy,national defense,automation and other fields.

Model:1B4

Send Inquiry

Product Description

ELBOW ADAPTOR BSP 45°  MALE SEAT 1B4


British Standard Pipe threads are similar in function to NPT threads, but are generally not interchangeable.

BSPT male threads seal against threads of fixed BSPT female.
Contact is made on the flanks of the threads.

Use of a thread sealant is recommended for BSPT male to BSPT female connections.
Measure the BSPT male thread OD and female thread ID at the first full thread near the end of the fitting.

BSPT male and BSPP male with conical 30° seat (60° included angle) seal against matching conical 30° seat of BSPP female swivel.

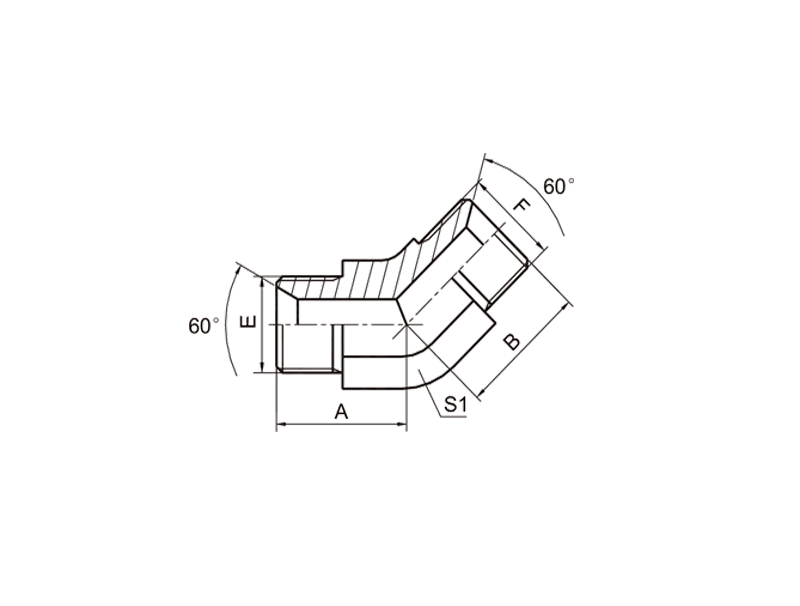

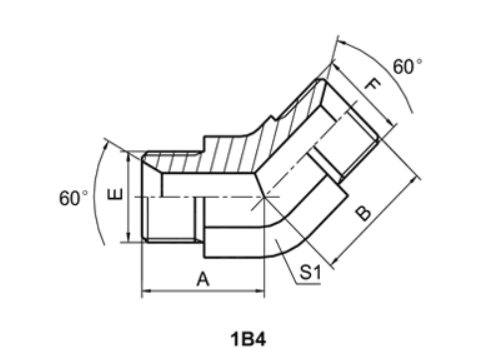

 PART NO.     THREAD   DIMENSIONS
E F A B S1
1B4-02 G1/8"X28 G1/8"X28 17 17 11
1B4-04 G1/4"X19 G1/4"X19 20.3 20.3 14
1B4-04-06 G1/4"X19 G3/8"X19 20.5 22 16
1B4-06 G3/8"X19 G3/8"X19 22 22 16
1B4-06-08 G3/8"X19 G1/2"X14 24 27 22
1B4-08 G1/2"X14 G1/2"X14 27 27 22
1B4-08-12 G1/2"X14 G3/4"X14 28.5 31 27
1B4-10 G5/8"X14 G5/8"X14 28.5 28.5 22
1B4-10-12 G5/8"X14 G3/4"X14 30 31 27
1B4-12 G3/4"X14 G3/4"X14 31 31 27
1B4-12-16 G3/4"X14 G1"X11 32.5 35 33
1B4-16 G1"X11 G1"X11 35 35 33
1B4-16-20 G1"X11 G1.1/4"X11 38.5 38.5 41
1B4-20 G1.1/4"X11 G1.1/4"X11 38.5 38.5 41
1B4-20-24 G1.1/4"X11 G1.1/2"X11 41.5 44 48
1B4-24 G1.1/2"X11 G1.1/2"X11 44 44 48
1B4-32 G2"X11 G2"X11 51 51 63

Product Details

High quality hydraulic fitting can satisfy your different needs with its special quality and features.
1.
high quality Zinc plated,Zn-Ni plated,Cr3,Cr6 plated.
2.high precision.all edges without burrs,brake sharp edges.
3.competitive price.
4. MOQ:300PCS
5. Material: iron, carbon steel, stainless steel, other metals
6.Standard / specification: Standard or as per drawing and samples (OEM)
7. Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Deliver,Shipping And Serving

1.     Delivery:As general,we can guarantee the delivery within one month.

2.     Port of loading: Ningbo or Shanghai

3.     Samples Fee: We can offord the samples fee.
