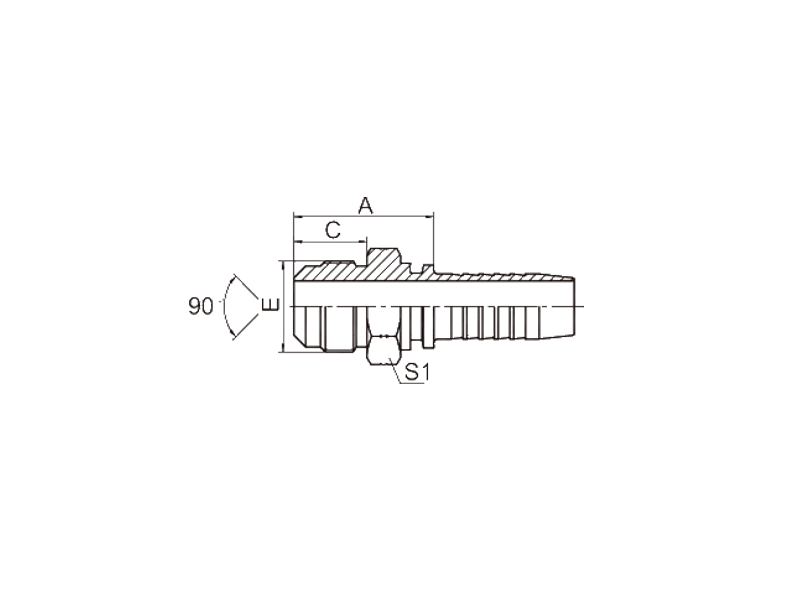

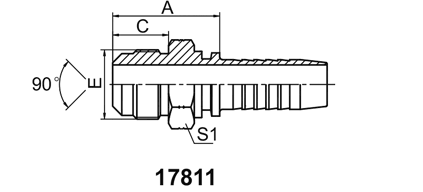

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials:stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 17811 SAE MALE 90° CONE SAE J513
PART NO. | THREADE | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S1 | ||
17811-04-04 | 7/16"X20 | 6 | 04 | 25.5 | 12.7 | 12 |
17811-05-05 | 1/2"X20 | 8 | 05 | 27 | 14.2 | 14 |
17811-06-06 | 5/8"X18 | 10 | 06 | 28.5 | 15.7 | 17 |
17811-08-08 | 3/4"X16 | 12 | 08 | 34 | 19 | 22 |
17811-10-10 | 7/8"X14 | 16 | 10 | 38.5 | 22.4 | 24 |
17811-12-12 | 1.1/16"X14 | 20 | 12 | 43.5 | 25.4 | 30 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 17812-XX-XX.
