HYDRAULIC 15611 NPT MALE

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials:stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 15611 NPT MALE

Model:15611

Send Inquiry

Product Description

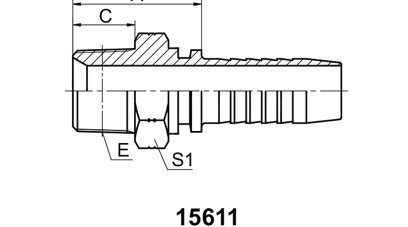

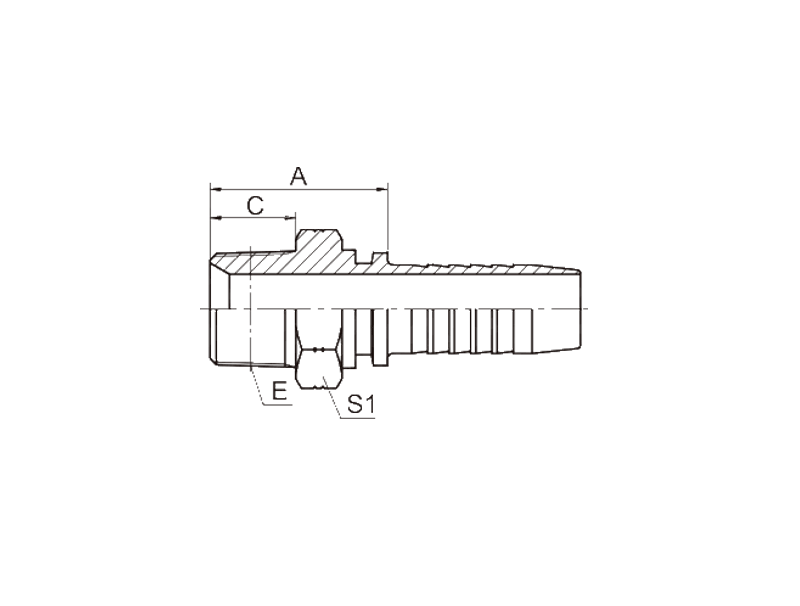

HYDRAULIC 15611 NPT MALE


PART NO. THREADE  HOSE BORE DIMENSIONS
DN DASH A C S1
15611-02-03 Z1/8"X27 5 03 22.5 10.5 12
15611-02-04 ZWX27 6 04 22.5 10.5 12
15611-04-03 Z1/4"X18 5 03 27.5 15 17
15611-04-04 Z1/4"X18 6 04 28 15 17
15611-04-05 Z1/4"X18 8 05 28 15 17
15611-04-06 Z1/4"X18 10 06 27 15 17
15611-06-04 Z3/8"X18 6 04 28 16 19
15611-06-05 Z3/8"X18 8 05 28 16 19
15611-06-06 Z3/8"X18 10 06 30 16 19
15611-06-08 Z3/8"X18 12 08 30.5 16 19
15611-08-06 Z1/2..X14 10 06 34.5 19.5 22
15611-08-08 Z1/2..X14 12 08 34.5 19.5 22
15611-08-10 Z1/2..X14 16 10 36 19.5 22
15611-12-08 Z3/4"X14 12 08 37.5 19.5 27
15611-12-10 Z3/4"X14 16 10 38 19.5 27
15611-12-12 Z3/4"X14 20 12 38.5 19.5 27
15611-12-16 Z3/4"X14 25 16 39.5 19.5 32
15611-16-10 Z1"X11.5 16 10 45 25.5 36
15611-16-12 ZTX11.5 20 12 45 25.5 36
15611-16-16 Z1"X11.5 25 16 44.5 25.5 36
15611-20-16 Z1.1/4"X11.5 25 16 49.5 26.5 46
15611-20-20 Z1.1/4"X11.5 32 20 49 26.5 46
15611-24-24 Z1.1/2"X11.5 40 24 51 27.5 50
15611-32-32 Z2"X11.5 50 32 55 27.5 65

NOTE:

1.For use with braided hoses.

2.If use with spiral hoses.hose fitting series number is 15612-XX-XX.
