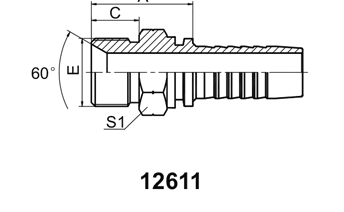

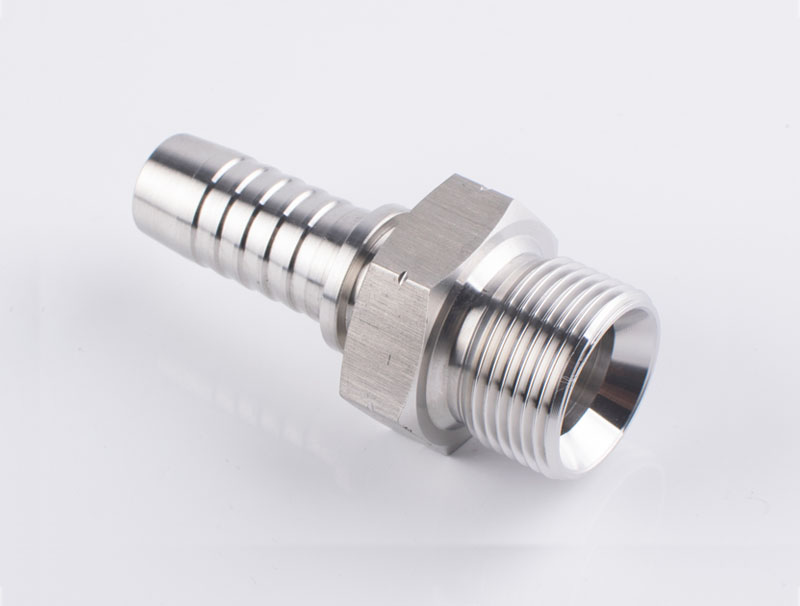

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 12611 BSP MALE 60° CONE SEAT
| PART NO. | THREADE | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 12611-02-03 | G1/8"X28 | 5 | 03 | 22 | 10 | 12 |
| 12611-04-04 | G1/4"X19 | 6 | 04 | 24.5 | 12 | 14 |
| 12611-06-05 | G3/8"X19 | 8 | 05 | 26 | 13.5 | 17 |
| 12611-06-06 | G3/8"X19 | 10 | 06 | 27.5 | 13.5 | 17 |
| 12611-06-08 | G3/8"X19 | 12 | 08 | 26.5 | 13.5 | 19 |
| 12611-08-06 | G1/2"X14 | 10 | 06 | 30.5 | 16 | 22 |
| 12611-08-08 | G1/2"X14 | 12 | 08 | 31 | 16 | 22 |
| 12611-10-08 | G5/8"X14 | 12 | 08 | 32.5 | 17.5 | 24 |
| 12611-10-10 | G5/8"X14 | 16 | 10 | 33.5 | 17.5 | 24 |
| 12611-12-08 | G3/4"X14 | 12 | 08 | 35.5 | 18.5 | 27 |
| 12611-12-10 | G3/4"X14 | 16 | 10 | 37 | 18.5 | 27 |
| 12611-12-12 | G3/4"X14 | 20 | 12 | 36.5 | 18.5 | 27 |
| 12611-16-12 | G1"X11 | 20 | 12 | 40.5 | 20.5 | 36 |
| 12611-16-16 | G1"X11 | 25 | 16 | 41.5 | 20.5 | 36 |
| 12611-20-16 | G1.1/4"X11 | 25 | 16 | 43.5 | 20.5 | 46 |
| 12611-20-20 | G1.1/4"X11 | 32 | 20 | 44.5 | 20.5 | 46 |
| 12611-24-20 | G1.1/2"X11 | 32 | 20 | 49 | 23 | 50 |
| 12611-24-24 | G1.1/2"X11 | 40 | 24 | 46 | 23 | 50 |
| 12611-32-32 | G2"X11 | 50 | 32 | 53.5 | 25.5 | 65 |
1.For use with braided hoses.
2.If use with spiral hoses.hose fitting series number is 12612-XX-XX.
