America Hydraulic Adapter
America Hydraulic Adapter connect conductors such as hoses, pipes and tubes in a hydraulic system. Most fittings have a male and female component that join to form a connection. These connections help contain and direct the flow of hydraulic fluid in the conductor while preventing leaks and maintaining pressure.

America Hydraulic Adapter are made of many different materials including stainless steel, brass, and more. Not always, but often fittings match the material of the conductor used in a system.This multitude of materials creates fittings with a wide range of performance capabilities. Most hydraulic fittings have designated pressure and temperature ratings as well as size and dimension standards set by the SAE.
View as


  • We are the manufacture that can offer more than 10,000 items like high pressure hydraulic hose fittings, hose assembly and adaptors. The main hydraulic fitting material is carbon steel. Alternative materials including free cutting steel, stainless steel, brass, aluminum alloy and others are available. And we can supply all kinds of forging parts make special by customer's requirement.

    Read More Send Inquiry

  • Finish:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
    Alternative materials：stainless steel/carbon steel/brass
    Port of Loading:Shanghai Or Ningbo
    Minimum Order Quantity:300
    Deadline:within 15 days or your request.

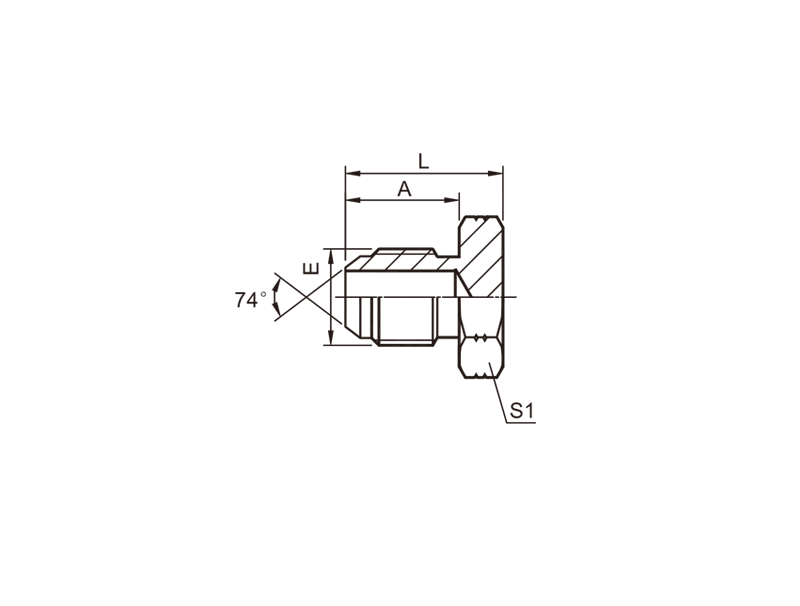

    Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 4J JIC MALE 74° CONE PLUG

    Read More Send Inquiry

  • Hydraulic JIC female is the Society of Automotive Engineers (SAE) specifies a 37° angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 37° flare male will mate with a JIC female only.* The JIC male has straight threads and a 37° flare seat. The JIC female has straight threads and a 37° flare seat. The seal is made on the 37° flare seat. Some sizes have the same threads as the SAE 45° flare. Carefully measure the seat angle to differentiate.

    Read More Send Inquiry

  • BSPT&BSPP THREADS • BSP is BRITISH STANDARD PIPE – Also known as Whitworth 55° Thread Form • BSPT is BRITISH STANDARD PIPE TAPER – Thread form per AS 1722.1, BS 21, ISO 7 • BSPP is BRITISH STANDARD PIPE PARALLEL – Thread form per AS 1722.2, ISO 228

    Read More Send Inquiry

  • NPT & NPS THREADS · NPT is NATIONAL PIPE TAPER (AMERICAN) – Thread form per ANSI/ASME B1.20.1 · NPS is NATIONAL PIPE STRAIGHT (PARALLEL) – Thread form per ANSI/ASME B1.20.1 · NPTF is NATIONAL PIPE TAPER FOR FUEL – Thread form per SAE J476 · NPSM is NATIONAL PIPE STRAIGHT MECHANICAL – Thread form per ANSI/ASME B1.20.1

    Read More Send Inquiry

  • Hydraulic connector come in a variety of shapes such as straight, elbow (at varying angles), and tee. Other ways to connect hydraulic hoses include hydraulic quick couplers, as well as through some hydraulic hose adapters and plugs. Products differ by hydraulic hose ID, Hydraulic fitting connection type, fitting shape and other considerations.

    Read More Send Inquiry
 ...1516171819...22
Customized America Hydraulic Adapter from our factory, Xindu Hydraulic which is one of the manufacturers and suppliers from China. Welcome to wholesale America Hydraulic Adapter with the right price from our factory. Do you need price list and quotation? If you need, we also can offer you.
