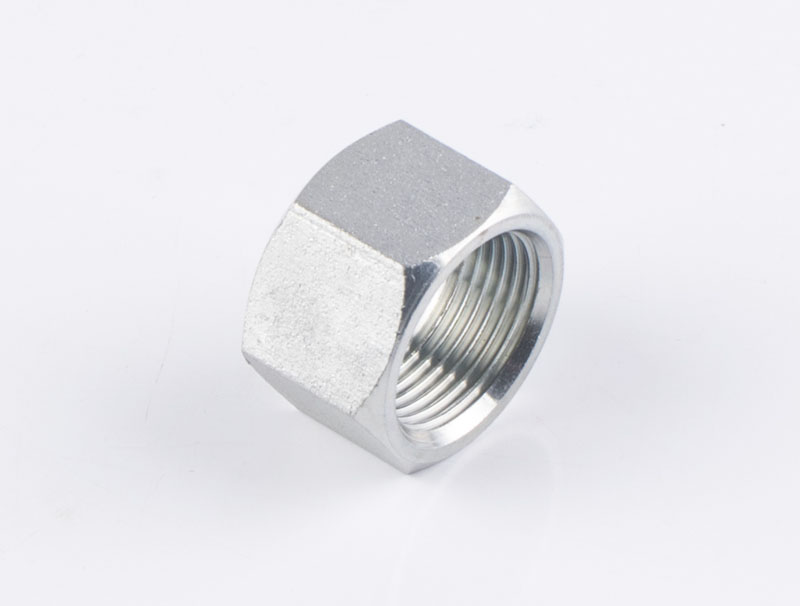

Hydraulic DIN Fittings NL/NS RETAINING NUTS

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. Hydraulic DIN fittings can be finished by Zinc plated,Zn-Ni plated,Cr3,Cr6 plated . Ordinarily Hydraulic DIN Fittings are produced by Carbon Steel ,also stainless steel or brass is fine. We are specialized in all kinds of hydraulic DIN Fittings.Our plant is located in Ningbo ,next to Shanghai , own good transportation than other cities.

Model:NL/NS

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa。




Drawing

Technical Data

 PART NO.  THREAD   TUBE O.D.    DIMENSIONS  MPa
E C d S2
NL-12 M12X1.5 6 14.5 6 14  Light Series L
NL-14 M14X1.5 8 14.5 8 17
NL-16 M16X1.5 10 15.5 10 19
NL-18 M18X1.5 12 15.5 12 22
NL-22 M22X1.5 15 17 15 27
NL-26 M26X1.5 18 18 18 32
NL-30 M30X2 22 20 22 36
NL-30D M30X1.5 22 19 22 36
NL-36 M36X2 28 21 28 41
NL-36D M36X1.5 28 21 28 41
NL-45 M45X2 35 24 35 50
NL-45D M45X1.5 35 25 35 50
NL-52 M52X2 42 24 42 60
NS-14 M14X1.5 6 16.5 6 17 Weight Series S
NS-16 M16X1.5 8 16.5 8 19
NS-18 M18X1.5 10 17.5 10 22
NS-20 M20X1.5 12 17.5 12 24
NS-22 M22X1.5 14 20.5 14 27
NS-24 M24X1.5 16 20.5 16 30
NS-30 M30X2 20 24 20 36
NS-36 M36X2 25 27 25 46
NS-42 M42X2 30 29 30 50
NS-52 M52X2 38 32.5 38 60


Product Details


High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price:very competitive
3.MOQ: 300PCS
4.Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving


1.Delivery: As general,we can guarantee the delivery within one month.
2.Port of loading: Ningbo or Shanghai
