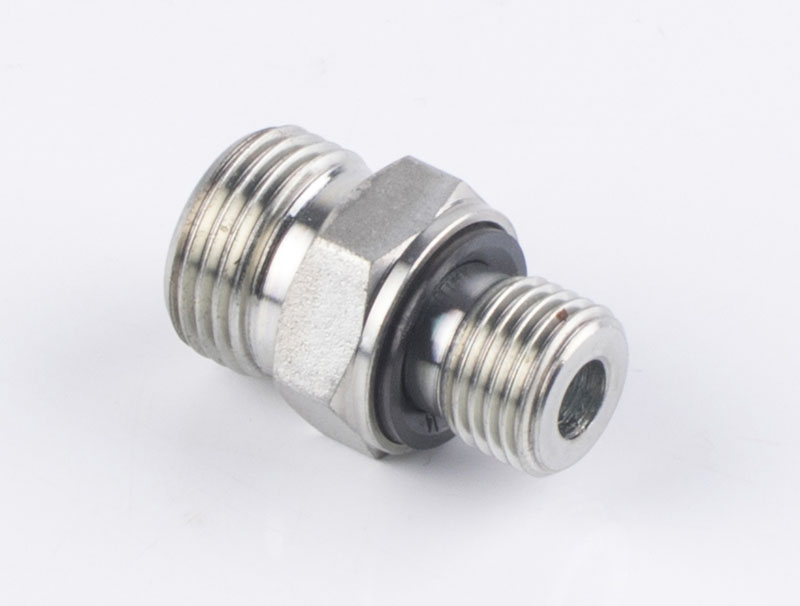

Hydraulic DIN Fittings 1CB-WD/1DB-WD BSP THREAD WITH CAPTIVE SEAL

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

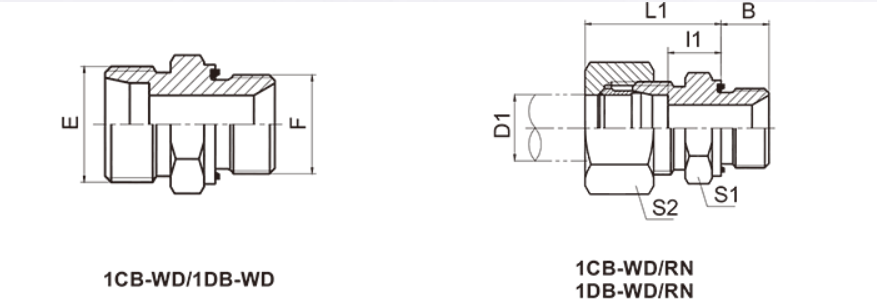

Drawing



Technical Data

PART NO.										THREAD																		TUBE O.D.																	DIMENSIONS																									MPa
										E									F									D1																	B							l1		L1					S1					S2
1CB-12-02WD										M12X1.5									G1/8"X28									6																	8							8.5		23.5					14					14						31.5 Light series L
1CB-12-04WD										M12X1.5									G1/4"X19									6																	12							10		25					19					14
1CB-12-06WD										M12X1.5									G3/8"X19									6																	12							11.5		26.5					22					14
1CB-14-02WD										M14X1.5									G1/8"X28									8																	8							9		24					14					17
1CB-14-04WD										M14X1.5									G1/4"X19									8																	12							10		24					19					17
1CB-14-06WD										M14X1.5									G3/8"X19									8																	12							11		26					22					17
1CB-16-04WD										M16X1.5									G1/4"X19									10																	12							11		24.5					19					19
1CB-16-06WD										M16X1.5									G3/8"X19									10																	12							12.5		26					22					19
1CB-16-08WD										M16X1.5									G1/2"X14									10																	14							13		28					27					19
1CB-18-04WD										M18X1.5									G1/4"X19									12																	12							12		27					19					22
1CB-18-06WD										M18X1.5									G3/8"X19									12																	12							12.5		26					22					22
1CB-18-08WD										M18X1.5									G1/2"X14									12																	14							14		28					27					22
1CB-22-04WD										M22X1.5									G1/4"X19									15																	12							13		28					24					27
1CB-22-06WD										M22X1.5									G3/8"X19									15																	12							13.5		28					24					27
1CB-22-08WD										M22X1.5									G1/2"X14									15																	14							14		29					27					27
1CB-22-12WD										M22X1.5									G3/4"X14									15																	16							15		29					32					27
1CB-26-08WD										M26X1.5									G1/2"X14									18																	14							14.5		31					27					32
1CB-26-12WD										M26X1.5									G3/4"X14									18																	16							14.5		31					32					32
1CB-30-12WD										M30X2									G3/4"X14									22																	16							16.5		33					32					36						16 Light series L
1CB-36-16WD										M36X2									G1"X11									28																	18							17.5		34					41					41
1CB-45-20WD										M45X2									G1.1/4"X11									35																	20							17.5		39					50					50
1CB-52-24WD										M52X2									G1.1/2"X11									42																	22							19		42					55					60
1DB-14-04WD										M14X1.5									G1/4"X19									6																	12							15							19					17						63 Weight series S
1DB-16-04WD										M16X1.5									G1/4"X19									8																	12							15		30					19					19
1DB-16-06WD										M16X1.5									G3/8"X19									8																	12							15.5		30					22					19
1DB-18-04WD										M18X1.5									G1/4"X19									10																	12							14.5		31					19					22
1DB-18-06WD										M18X1.5									G3/8"X19									10																	12							14.5		31					22					22
1DB-18-08WD										M18X1.5									G1/2"X14									10																	14							17.5		34					27					22
1DB-20-04WD										M20X1.5									G1/4"X19									12																	12							16.5		33					22					24
1DB-20-06WD										M20X1.5									G3/8"X19									12																	12							15		33					22					24
1DB-20-08WD										M20X1.5									G1/2"X14									12																	14							17.5		34					27					24
1DB-22-08WD										M22X1.5									G1/2"X14									14																	14							19		37					27					27
1DB-24-06WD										M24X1.5									G3/8"X19									16																	12							18		36.5					27					30						40 Weight series S
1DB-24-08WD										M24X1.5									G1/2"X14									16																	14							18.5		37					27					30
1DB-24-12WD										M24X1.5									G3/4"X14									16																	16							20.5		39					32					30
1DB-30-12WD										M30X2									G3/4"X14									20																	16							20.5		42					32					36
1DB-36-08WD										M36X2									G1/2"X14									25																	14							23		47					41					46
1DB-36-12WD										M36X2									G3/4"X14									25																	16							23		47					41					46
1DB-36-16WD										M36X2									G1"X11									25																	18							23		47					41					46
1DB-42-20WD										M42X2									G1.1/4"X11									30																	20							23.5		50					50					50
1DB-52-24WD										M52X2									G1.1/2"X11									38																	22							26		57					55					60						31.5Weight seriesS

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our partno.,for example 1D8-20-08WD/RN

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
