Hydraulic DIN Fittings XC CROSS FITTINGS

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa。

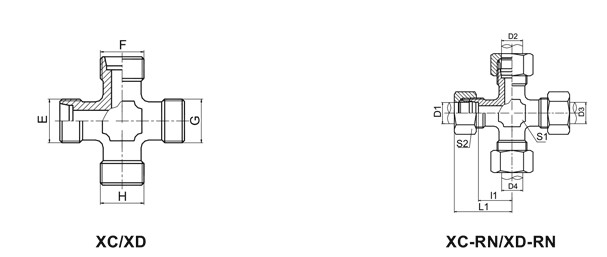

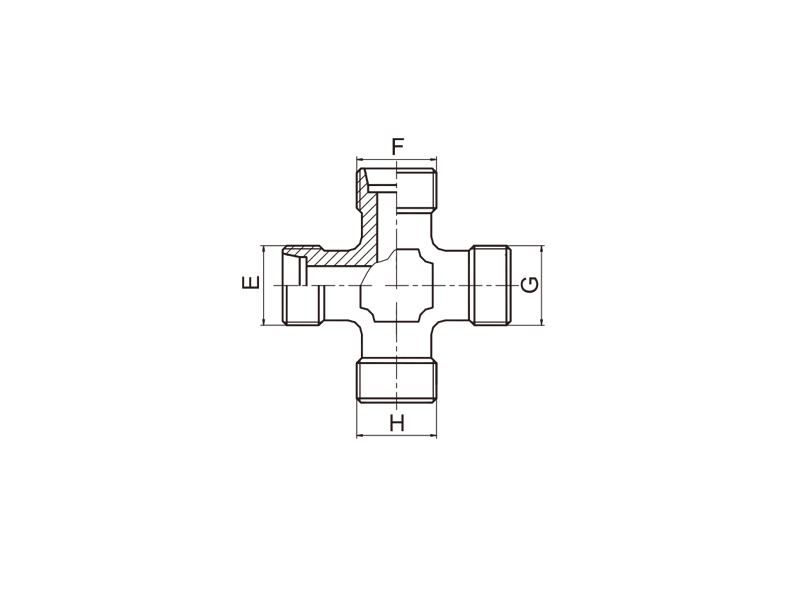

Drawing

Technical Data

PART NO.								THREAD														TUBE O.D.																DIMENSIONS																														MPa
								E,F,G,H														D1,D2,D3,D4																l1							L1								S1								S2
XC-12								M12X1.5														6																12							27								12								14							31.5  Light Series L
XC-14								M14X1.5														8																14							29								12								17
XC-16								M16X1.5														10																15							30								14								19
XC-18								M18X1.5														12																17							32								17								22
XC-22								M22X1.5														15																21							36								19								27
XC-26								M26X1.5														18																23.5							40								24								32
XC-30								M30X2														22																27.5							44								27								36							16  Light Series L
XC-36								M36X2														28																30.5							47								36								41
XC-45								M45X2														35																34.5							56								41								50
XC-52								M52X2														42																40							63								50								60
XD-14								M14X1.5														6																16							31								12								17							63 Weight Series S
XD-16								M16X1.5														8																17							32								14								19
XD-18								M18X1.5														10																17.5							34								17								22
XD-20								M20X1.5														12																21.5							38								17								24
XD-22								M22X1.5														14																22							40								19								27
XD-24								M24X1.5														16																24.5							43								24								30							40 Weight Series S
XD-30								M30X2														20																26.5							48								27								36
XD-36								M36X2														25																30							54								36								46
XD-42								M42X2														30																35.5							62								41								50
XD-52								M52X2														38																41							72								50								60							31.5 Weight Series S

Note: In case if you are interested to order the adapter in complete set width cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example XC-30RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price：very competitive
3.MOQ: 300PCS
4.Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.Delivery: As general,we can guarantee the delivery within one month.
2.Port of loading: Ningbo or Shanghai
