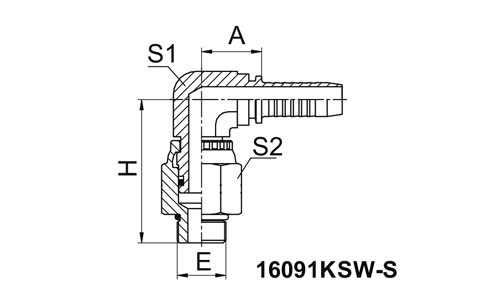

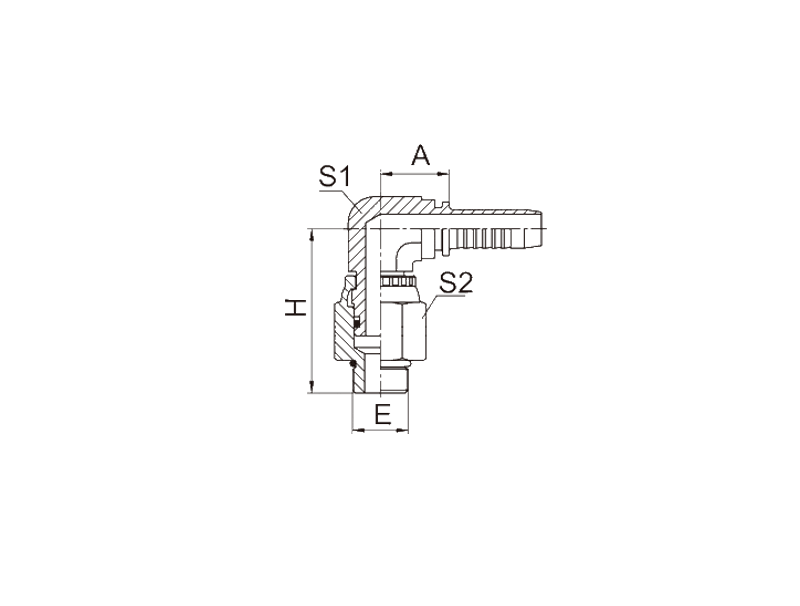

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 16091KSW-S 90°SAE O-RING BOSS SWIVEL MALE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | H | S1 | S2 | ||
| 16091KSW-08-06S | 3/4"X16 | 10 | 06 | 23 | 55.9 | 19 | 27 |
| 16091KSW-08-08S | 3/4"X16 | 12 | 08 | 23.5 | 55.9 | 19 | 27 |
| 16091KSW-10-06S | 7/8"X14 | 10 | 06 | 23 | 57.9 | 19 | 27 |
| 16091KSW-10-08S | 7/8"X14 | 12 | 08 | 23.5 | 57.9 | 19 | 27 |
| 16091KSW-10-10S | 7/8"X14 | 16 | 10 | 25 | 57.9 | 22 | 27 |
