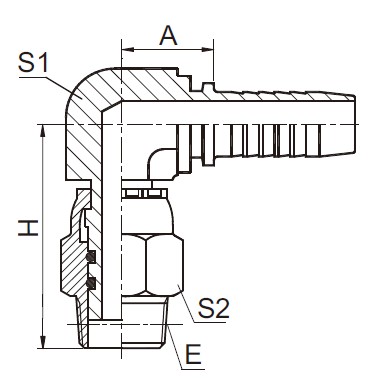

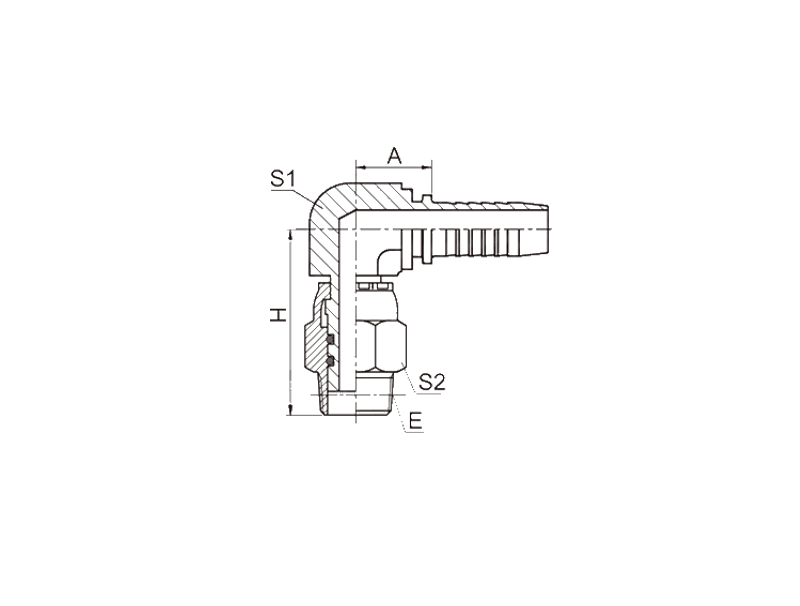

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 15691KSW 90 NPT SWIVEL MALE
|
PART NO
|
THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | H | S1 | S2 | ||
| 15691KS W-04-04 | Z1/4"X18 | 6 | 04 | 25 | 59 5 | 16 | 19 |
| 15691KSW-06-06 | Z3/8"X18 | 10 | 06 | 25 | 64 5 | 16 | 22 |
| 15691KSW-08-08 | Z1/2"X14 | 12 | 08 | 28 5 | 715 | 19 | 27 |
| 15691KS W-12-12 | Z3/4"X14 | 20 | 12 | 36 | 76 9 | 27 | 32 |
