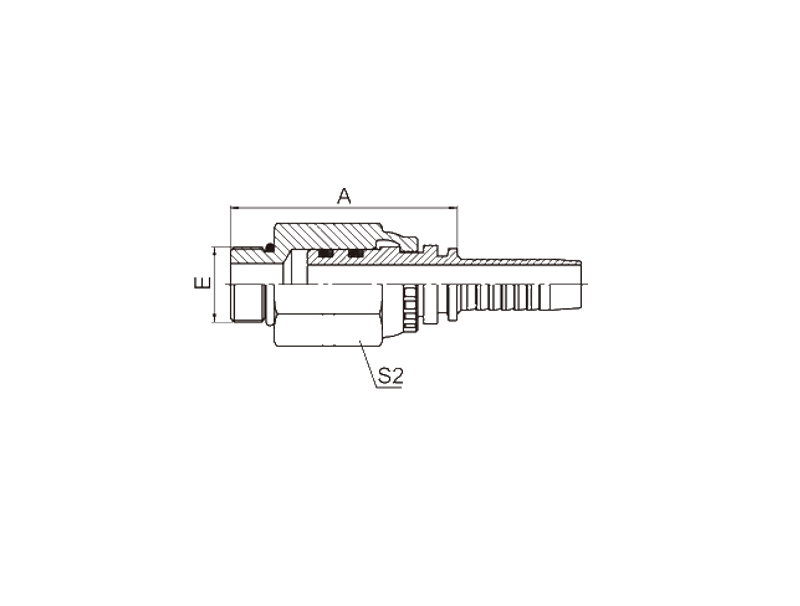

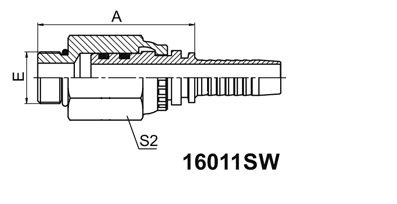

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 platedAlternative materials：stainless steel/carbon steel/brassPort of Loading:Shanghai Or NingboMinimum Order Quantity:300Deadline:within 15 days or your request.Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 16011SW SAE O-RING BOSS SWIVEL MALE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | ORING | A | S2 | ||
| 16011SW-08-06 | 3/4"X16 | 10 | 06 | 0908 | 57.5 | 27 |
| 16011SW-08-08 | 3/4"X16 | 12 | 08 | 0908 | 58 | 27 |
| 16011SW-10-08 | 7/8"X14 | 12 | 08 | 0910 | 59.5 | 27 |
| 16011SW-10-10 | 7/8"X14 | 16 | 10 | 0910 | 60.1 | 27 |
| 16011SW-12-12 | 1.1/16"X12 | 20 | 12 | 0912 | 64.9 | 32 |
