Interlock Hose Fitting ,The principle of the interlock fitting is that the hose is skived both internally and externally in order to create two zones: one locking and one sealing. The locking is created in the front of the fitting, where nipple and ferrule are swaged together with the reinforcement of the hose. The back of the fitting is the sealing part; the sealing part is created between nipple and inner tube. The interlock fitting is recommended for hydraulic systems with very high pulsating pressure and requirements of safety.

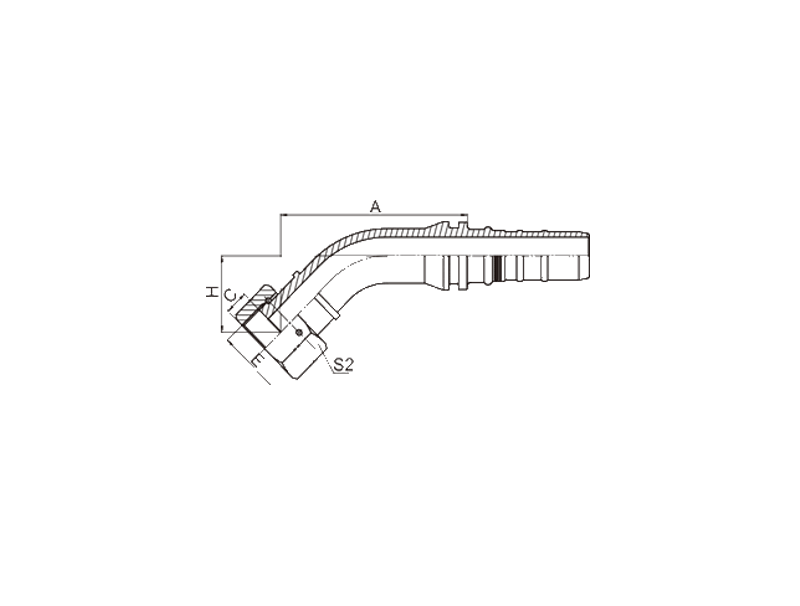

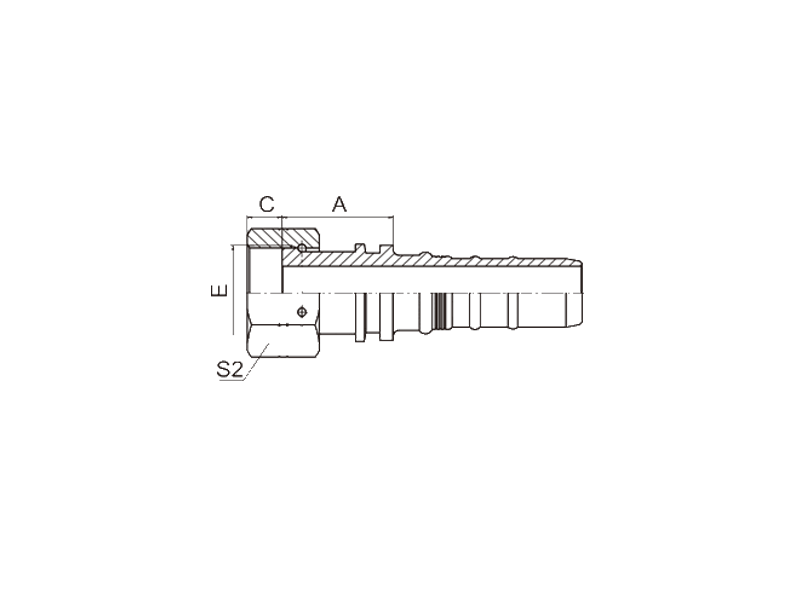

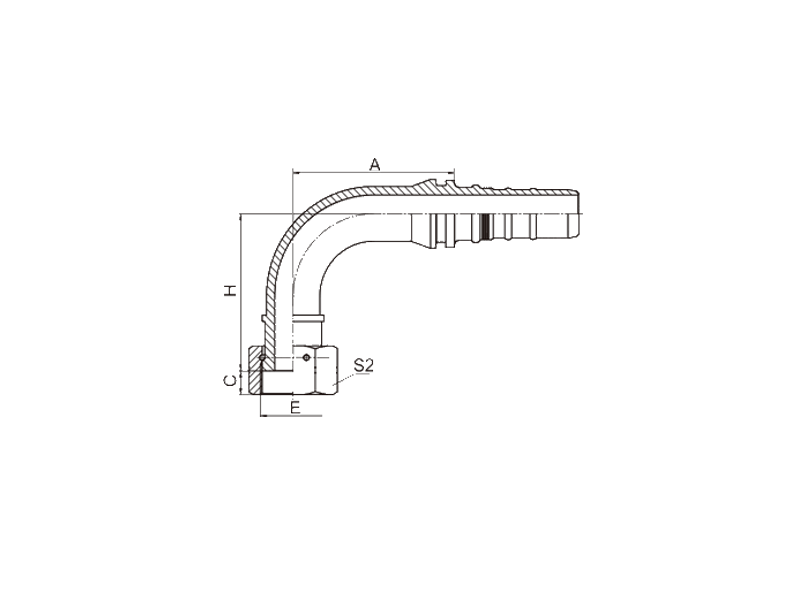

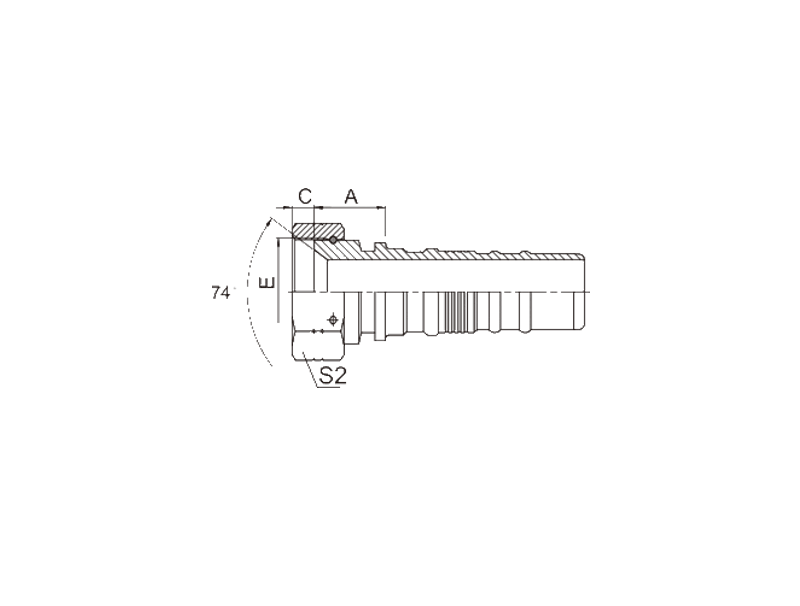

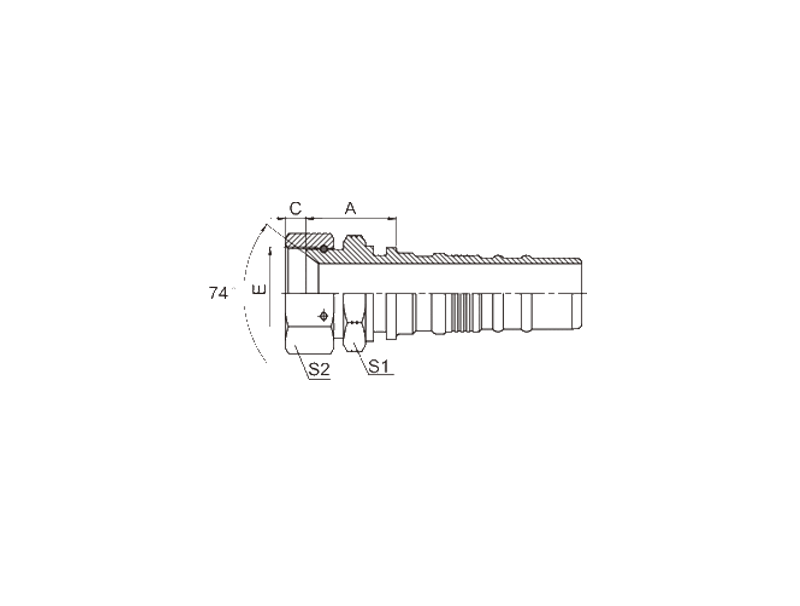

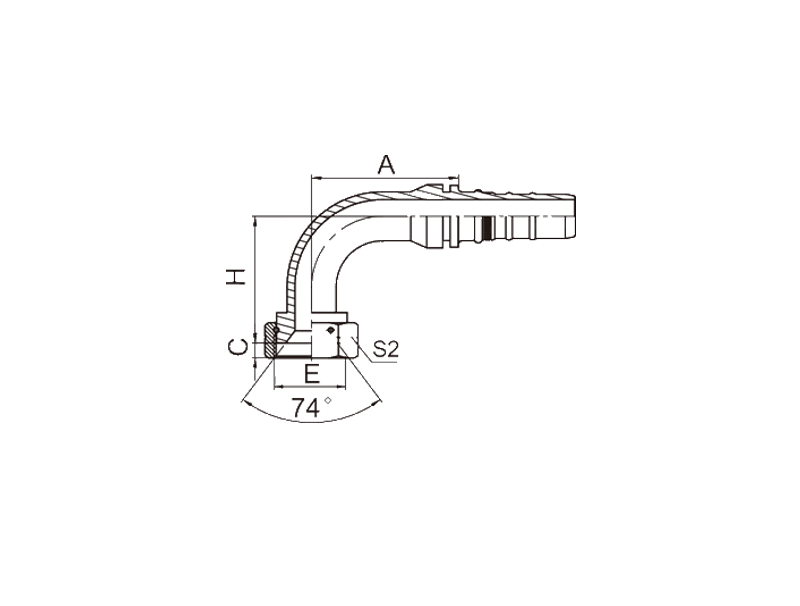

Popular interlock hose fittings include 24° Cone O-ring Seal Heavy, BSP Thread, NPTF, NPSM 60° Cone Seal, ORFS Face Seal, JIC 74° Cone Seal, GAS 60° Cone Seal, SAE Flange Heavy, 9000PSI Flange, as well as Double Connection. Among all these, the 9000PSI interlock flange sometimes comes with D-ring instead of O-ring for better performance of low leak and fatigue life, designed to withstand the abuses of many industrial  applications.
Some popular standards of interlock hose fittings are ISO8434-1 -- DIN3861, ISO8438-2 -- SAE J514, ISO8434-3 -- SAE J1453, JIS B8363, SAE J518.
Interlock hose fitting has part number ending with 3. And it is for six wire hoses R13 and R15. The matching hose sleeve is 00621 interlock ferrule. Browse our offering of interlock hose fittings and crimp them into hose assemblies for ready use on your machines.
