HYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT
  • Air ProHYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT

HYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT

Finished:Zinc plated,Zn-Ni plated,Cr3,Cr6 plated
Alternative materials：stainless steel/carbon steel/brass
Port of Loading:Shanghai Or Ningbo
Minimum Order Quantity:300
Deadline:within 15 days or your request.
Customized Service:We are specialized in all kinds of hydraulic hose fittings,adapters,ferrules,flanges,fitting accessoriesHYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT

Model:26713D-W

Send Inquiry

Product Description

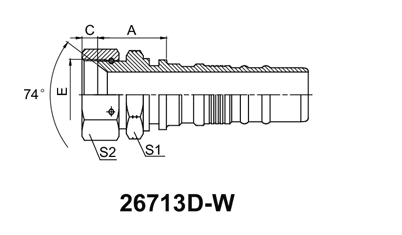

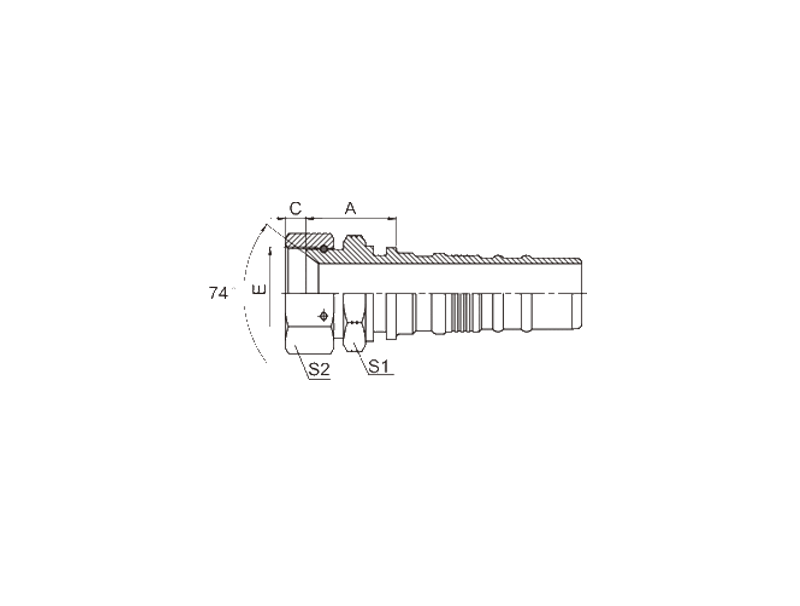

HYDRAULIC 26713D-W JIC FEMALE 74° CONE SEAT



  PART NO.   THREADE   HOSE BORE   DIMENSIONS
 DN  DASH A C S1 S2
26713D-12-12W 1.1/16.X12 20 12 37.5 15 30 32
26713D-16-16W 1.5/16.X12 25 16 42.4 16 38 41
26713D-20-20W 1.5/8"X12 32 20 47.3 17 46 50
26713D-24-24W 1.7/8"X12 40 24 50.2 20 50 60
26713D-32-32W 2.1/2"X12 50 32 52 23.5 65 75
