Hydraulic DIN Fittings  ACOC-OG BRANCH TEE UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING
  • Air ProHydraulic DIN Fittings  ACOC-OG BRANCH TEE UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING

Hydraulic DIN Fittings ACOC-OG BRANCH TEE UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.DIN Hydraulic Adapter can be finished by Zinc plated,Zn-Ni plated,Cr3,Cr6 plated . Ordinarily Hydraulic DIN Fittings are produced by Carbon Steel ,also stainless steel or brass is fine. We are specialized in all kinds of Hydraulic DIN Fittings, Our plant is located in Ningbo ,next to Shanghai , own good transportation than other cities.

Model:ACOC-OG

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .


This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc . DIN Hydraulic Adapter can be used in system with Max 63Mpa .

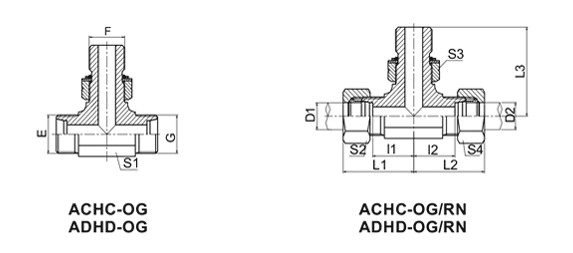

Drawing


Technical Data

 PART NO.  THREAD  TUBE O.D.    DIMENSIONS  MPa
E,G F D1,D2 l1,l2 L1,L2 L3 S1 S2,S4 S3
ACOC-12-04-12OG M12X1.5 7/16"X20 6 13 28 27.2 11 14 17 31.5
 Light Series L
ACOC-14-06-14OG M14X1.5 9/16"X18 8 15.5 30.5 31.8 14 17 19
ACOC-16-06-16OG M16X1.5 9/16"X18 10 17.5 32.5 33.3 16 19 19
ACOC-18-08-18OG M18X1.5 3/4"X16 12 19 34 37.5 19 22 24
ACOC-22-10-22OG M22X1.5 7/8"X14 15 22 37 44 22 27 27
ACOC-26-12-26OG M26X1.5 1.1/16"X12 18 25.5 42 51 27 32 32
ACOC-30-12-30OG M30X2 1.1/16"X12 22 29.3 45.8 53.5 30 36 32 16
 Light Series L
ACOC-36-16-36OG M36X2 1.5/16"X12 28 33.3 49.8 57.5 36 41 41
ACOC-45-20-45OG M45X2 1.5/8"X12 35 39.2 60.7 63 48 50 50
ADOD-14-04-14OG M14X1.5 7/16"X20 6 17.5 32.5 30 14 17 17 63
Weight Series S
ADOD-16-06-16OG M16X1.5 9/16"X18 8 18.7 33.7 33.3 16 19 19
ADOD-18-06-18OG M18X1.5 9/16"X18 10 19.5 36 33.5 19 22 19
ADOD-20-08-20OG M20X1.5 3/4"X16 12 19.5 36 37.5 19 24 24
ADOD-22-10-22OG M22X1.5 7/8"X14 14 23 41 44 22 27 27
ADOD-24-10-24OG M24X1.5 7/8"X14 16 24 42.5 46.5 24 30 27 40
Weight Series S
ADOD-30-12-30OG M30X2 1.1/16"X12 20 28.3 49.8 53.5 30 36 32
ADOD-36-16-36OG M36X2 1.5/16"X12 25 32.8 56.8 57.5 36 46 41
ADOD-42-20-42OG M42X2 1.5/8"X12 30 36.2 62.7 59.5 41 50 50

Note: In case if you are interested to order the adapter in complete set width cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example ACOC-30-12-30OG/RN.

Product Details

High quality DIN hydraulic fitting can satisfy your different needs with its special quality and features.
1.Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price:very competitive
3.MOQ: 300PCS
4.Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.


Delivery,Shipping And Serving

1.Delivery: As general,we can guarantee the delivery within one month.
2.Port of loading: Ningbo or Shanghai



Hot Tags: Hydraulic DIN Fittings ACOC-OG BRANCH TEE UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING, China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
