Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.DIN Hydraulic Adapter can be finished by Zinc plated,Zn-Ni plated,Cr3,Cr6 plated . Ordinarily Hydraulic DIN Fittings are produced by Carbon Steel ,also stainless steel or brass is fine. We are specialized in all kinds of Hydraulic DIN Fittings, Our plant is located in Ningbo ,next to Shanghai , own good transportation than other cities.

Model:ACHC-OG

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .


This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc . Hydraulic DIN Fittings can be used in system with Max 63Mpa .

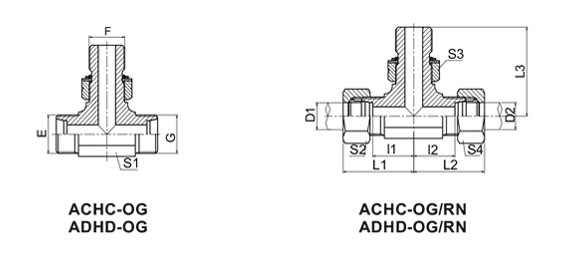

Drawing


Technical Data

 PART NO.   THREAD   D1,D2  O RING    DIMENSIONS  MPa
E,G F TUBE O.D. l1,l2 L1,L2 L3 S1 S2,S4 S3
ACHC-12-10-12OG M12X1.5 M10X1 6 O08.1X1.6 13 28 26.5 11 14 14 31.5
 Light Series L
ACHC-14-12-14OG M14X1.5 M12X1.5 8 O09.3X2.4 15.5 30.5 32 14 17 17
ACHC-16-14-16OG M16X1.5 M14X1.5 10 O11.3X2.4 17.5 32.5 34 16 19 19
ACHC-18-16-18OG M18X1.5 M16X1.5 12 O13.3X2.4 19 34 36 19 22 22
ACHC-22-18-22OG M22X1.5 M18X1.5 15 O15.3X2.4 22 37 39.5 22 27 24
ACHC-26-22-26OG M26X1.5 M22X1.5 18 O19.3X2.4 25.5 42 43.5 27 32 27
ACHC-30-27-30OG M30X2 M27X2 22 O23.5X3.0 29.3 45.8 50 30 36 32 16
 Light Series
ACHC-36-33-36OG M36X2 M33X2 28 O29.2X3.0 33.3 49.8 54 36 41 41
ADHD-14-12-14OG M14X1.5 M12X1.5 6 O09.3X2.4 17.5 32.5 32 14 17 17 63
Weight Series S
ADHD-16-14-16OG M16X1.5 M14X1.5 8 O11.3X2.4 18.7 33.7 34 16 19 19
ADHD-18-16-18OG M18X1.5 M16X1.5 10 O13.3X2.4 19.5 36 36 19 22 22
ADHD-20-18-20OG M20X1.5 M18X1.5 12 O15.3X2.4 19.5 36 37 19 24 24
ADHD-24-22-24OG M24X1.5 M22X1.5 16 O19.3X2.4 24 42 37.5 24 30 27
ADHD-30-27-30OG M30X2 M27X2 20 O23.5X3.0 28.3 49.8 50 30 36 32 40
Weight Series S
ADHD-36-33-36OG M36X2 M33X2 25 O29.2X3.0 32.8 56.8 54 36 46 41
ADHD-42-42-42OG M42X2 M42X2 30 O38.5X3.0 36.2 62.7 57.2 41 50 50

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example ACOC-30-12-30OG/RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price:very competitive
3.MOQ: 300PCS
4.Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.


Delivery,Shipping And Serving


1. Delivery: As general,we can guarantee the delivery within one month.
2. Port of loading: Ningbo or Shanghai
