Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.DIN Hydraulic Adapter can be finished by Zinc plated,Zn-Ni plated,Cr3,Cr6 plated . Ordinarily Hydraulic DIN Fittings are produced by Carbon Steel ,also stainless steel or brass is fine. We are specialized in all kinds of Hydraulic DIN Fittings , Our plant is located in Ningbo ,next to Shanghai , own good transportation than other cities.

Model:ACCO-OG

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .


This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc . Hydraulic DIN Fittings can be used in system with Max 63Mpa .

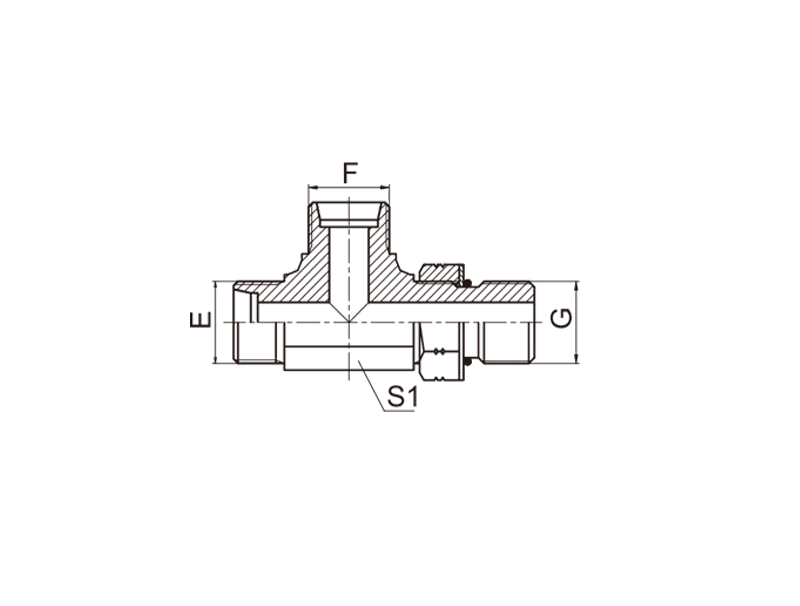

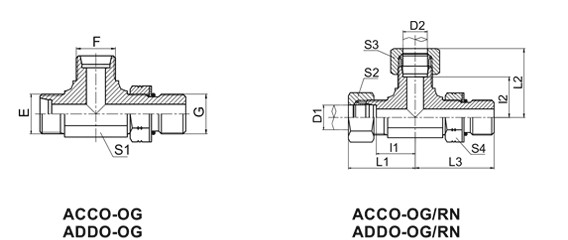

Drawing


Technical Data

PART NO.  THREAD  TUBE O.D.    DIMENSIONS  MPa
E,F G D1,D2 l1,l2 L1,L2 L3 S1 S2,S3 S4
ACCO-12-12-04OG M12X1.5 7/16"X20 6 13 28 27.2 11 14 17 31.5
 Light Series L
ACCO-14-14-06OG M14X1.5 9/16"X18 8 15.5 30.5 31.8 14 17 19
ACCO-16-16-06OG M16X1.5 9/16"X18 10 17.5 32.5 33.3 16 19 19
ACCO-18-18-08OG M18X1.5 3/4"X16 12 19 34 37.5 19 22 24
ACCO-22-22-10OG M22X1.5 7/8"X14 15 22 37 44 22 27 27
ACCO-26-26-12OG M26X1.5 1.1/16"X12 18 25.5 42 51 27 32 32
ACCO-30-30-12OG M30X2 1.1/16"X12 22 29.3 45.8 53.5 30 36 32 16
 Light Series L
ACCO-36-36-16OG M36X2 1.5/16"X12 28 33.3 49.8 57.5 36 41 41
ACCO-45-45-20OG M45X2 1.5/8"X12 35 39.2 60.7 63 48 50 50
ADDO-14-14-04OG M14X1.5 7/16"X20 6 17.5 32.5 30 14 17 17 63
Weight Series S
ADDO-16-16-06OG M16X1.5 9/16"X18 8 18.7 33.7 33.3 16 19 19
ADDO-18-18-06OG M18X1.5 9/16"X18 10 19.5 36 33.5 19 22 19
ADDO-20-20-08OG M20X1.5 3/4"X16 12 19.5 36 37.5 19 24 24
ADDO-22-22-10OG M22X1.5 7/8"X14 14 23 41 44 22 27 27
ADDO-24-24-10OG M24X1.5 7/8"X14 16 24 42.5 46.5 24 30 27 40
Weight Series S
ADDO-30-30-12OG M30X2 1.1/16"X12 20 28.3 49.8 53.5 30 36 32
ADDO-36-36-16OG M36X2 1.5/16"X12 25 32.8 56.8 57.5 36 46 41
ADDO-42-42-20OG M42X2 1.5/8"X12 30 36.2 62.7 59.5 41 50 50
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example ACCO-30-30-120G/RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price:very competitive
3.MOQ: 300PCS
4. Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.Delivery: As general,we can guarantee the delivery within one month.

2.Port of loading: Ningbo or Shanghai



Hot Tags: Hydraulic DIN Fittings ACCO-OG BARREL TEE UN、UNF THREAD ADJUSTABLESTUD ENDS WITH O-RING SEALING, China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
