Hydraulic DIN Fittings ACCH-OG METRIC MALE 24° CONE / METRIC MALE ADJUSTABLE STUD END ISO 6149-2 RUN TEE

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut.when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc . Hydraulic DIN Fittings can be used in system with Max 63Mpa .

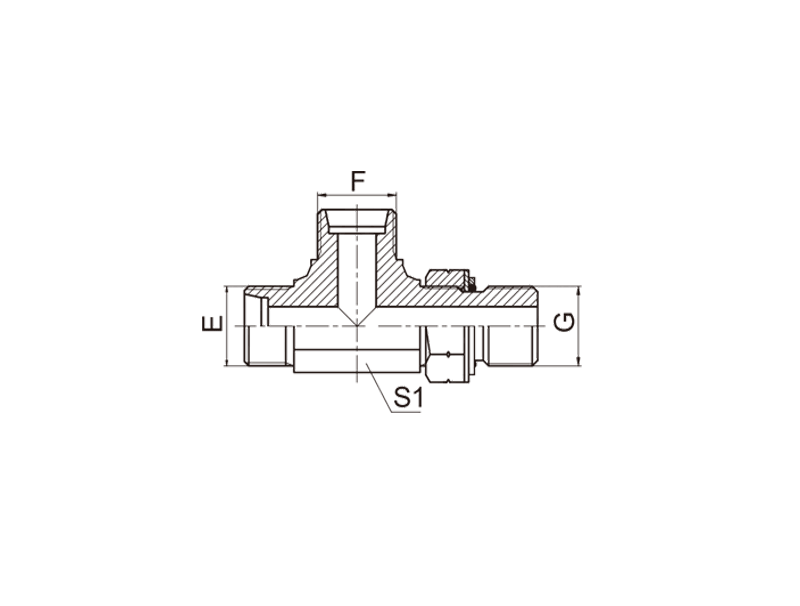

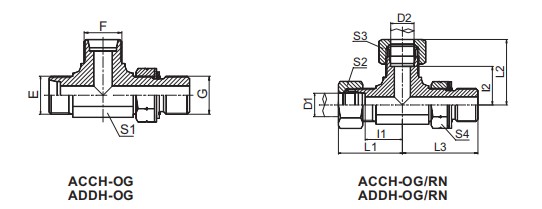

Drawing

Technical Data

PART NO.											THREAD															D1,D2												O RING							DIMENSIONS																														MPa
											E,F								G							TUBE O.D.																			l1,l2							L1,L2			L3					S1					S2,S3					S4
ACCH-12-12-10OG											M12X1.5								M10X1							6												O08.1X1.6							13							28			26.5					11					14					14					31.5  Light Series L
ACCH-14-14-12OG											M14X1.5								M12X1.5							8												O09.3X2.4							15.5							30.5			32					14					17					17
ACCH-16-16-14OG											M16X1.5								M14X1.5							10												O11.3X2.4							17.5							32.5			34					16					19					19
ACCH-18-18-16OG											M18X1.5								M16X1.5							12												O13.3X2.4							19							34			36					19					22					22
ACCH-22-22-18OG											M22X1.5								M18X1.5							15												O15.3X2.4							22							37			39.5					22					27					24
ACCH-26-26-22OG											M26X1.5								M22X1.5							18												O19.3X2.4							25.5							42			43.5					27					32					27
ACCH-30-30-27OG											M30X2								M27X2							22												O23.5X3.0							29.3							45.8			50					30					36					32					16  Light Series
ACCH-36-36-33OG											M36X2								M33X2							28												O29.2X3.0							33.3							49.8			54					36					41					41
ADDH-14-14-12OG											M14X1.5								M12X1.5							6												O09.3X2.4							17.5							32.5			32					14					17					17					63 Weight Series S
ADDH-16-16-14OG											M16X1.5								M14X1.5							8												O11.3X2.4							18.7							33.7			34					16					19					19
ADDH-18-18-16OG											M18X1.5								M16X1.5							10												O13.3X2.4							19.5							36			36					19					22					22
ADDH-20-20-18OG											M20X1.5								M18X1.5							12												O15.3X2.4							19.5							36			37					19					24					24
ADDH-24-24-22OG											M24X1.5								M22X1.5							16												O19.3X2.4							24							42			37.5					24					30					27
ADDH-30-30-27OG											M30X2								M27X2							20												O23.5X3.0							28.3							49.8			50					30					36					32					40 Weight Series S
ADDH-36-36-33OG											M36X2								M33X2							25												O29.2X3.0							32.8							56.8			54					36					46					41
ADDH-42-42-42OG											M42X2								M42X2							30												O38.5X3.0							36.2							62.7			57.2					41					50					50

Note:

1 In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix “RN” after our part no.,for example ACCH-30-30-270G/RN.
2 G end is connected with ISO 9974-1 port and connected with ISO 6149-1 part without retaining ring.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.Price：very competitive
3.MOQ: 300PCS
4.Material: iron, carbon steel, stainless steel, other metals
5.Standard / specification: Standard or as per drawing and samples (OEM)
6.Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.Delivery: As general,we can guarantee the delivery within one month.

2.Port of loading: Ningbo or Shanghai
