Hydraulic DIN Fittings ACCG-OG BARREL TEE BSP THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

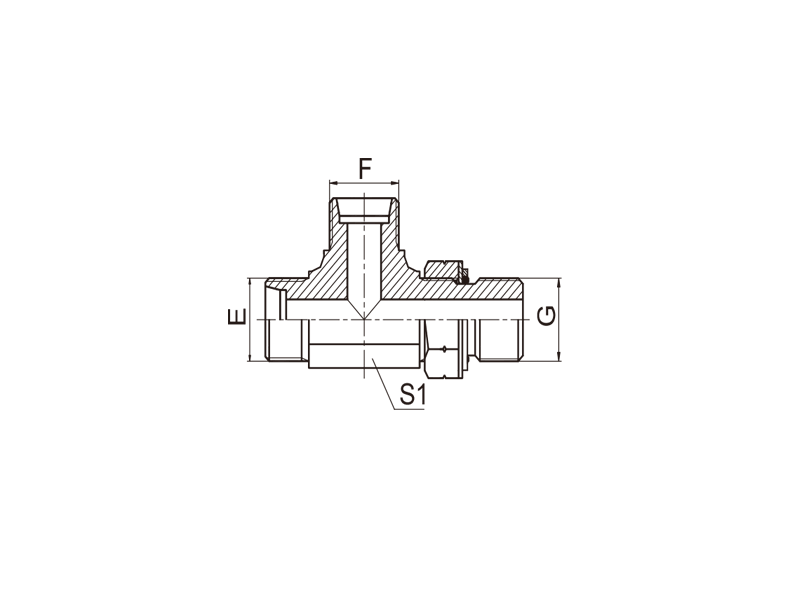

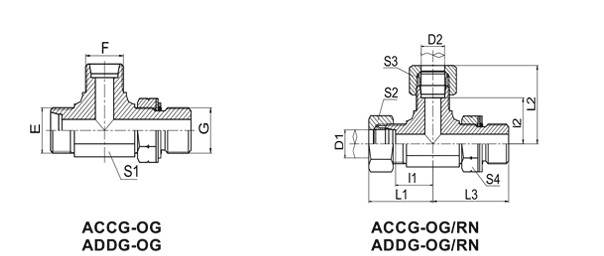

Drawing

Technical Data

PART NO.												THREAD																TUBE O.D.																DIMENSIONS																															MPa
												E,F							G									D1,D2																l1,l2					L1,L2					L3					S1					S2,S3						S4
ACCG-12-12-02OG												M12X1.5							G1/8"X28									6																13					28					26.2					11					14						14					31.5  Light Series L
ACCG-14-14-04OG												M14X1.5							G1/4"X19									8																15.5					30.5					31.3					14					17						19
ACCG-16-16-04OG												M16X1.5							G1/4"X19									10																17.5					32.5					32.5					16					19						19
ACCG-18-18-06OG												M18X1.5							G3/8"X19									12																19					34					36.8					19					22						22
ACCG-22-22-08OG												M22X1.5							G1/2"X14									15																22					37					43.2					22					27						27
ACCG-26-26-08OG												M26X1.5							G1/2"X14									18																25.5					42					46.5					27					32						27
ACCG-30-30-12OG												M30X2							G3/4"X14									22																29.3					45.8					52					30					36						32					16  Light Series L
ACCG-36-36-16OG												M36X2							G1"X11									28																33.3					49.8					56					36					41						41
ACCG-45-45-20OG												M45X2							G1.1/4"X11									35																39.2					60.7					63					48					50						50
ADDG-14-14-04OG												M14X1.5							G1/4"X19									6																17.5					32.5					31.3					14					17						19					63 Weight Series S
ADDG-16-16-04OG												M16X1.5							G1/4"X19									8																18.7					33.7					32.5					16					19						19
ADDG-18-18-06OG												M18X1.5							G3/8"X19									10																19.5					36					36.8					19					22						22
ADDG-20-20-06OG												M20X1.5							G3/8"X19									12																19.5					36					36.8					19					24						22
ADDG-22-22-08OG												M22X1.5							G1/2"X14									14																23					41					43.2					22					27						27
ADDG-24-24-08OG												M24X1.5							G1/2"X14									16																24					42.5					44					24					30						27					40 Weight Series S
ADDG-30-30-12OG												M30X2							G3/4"X14									20																28.3					49.8					52					30					36						32
ADDG-36-36-16OG												M36X2							G1"X11									25																32.8					56.8					56					36					46						41
ADDG-42-42-20OG												M42X2							G1.1/4"X11									30																36.2					62.7					58					41					50						50

Note : In case if you are interested to order the adapter in complete set width cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example ACCG-18-18-06OG/RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.
