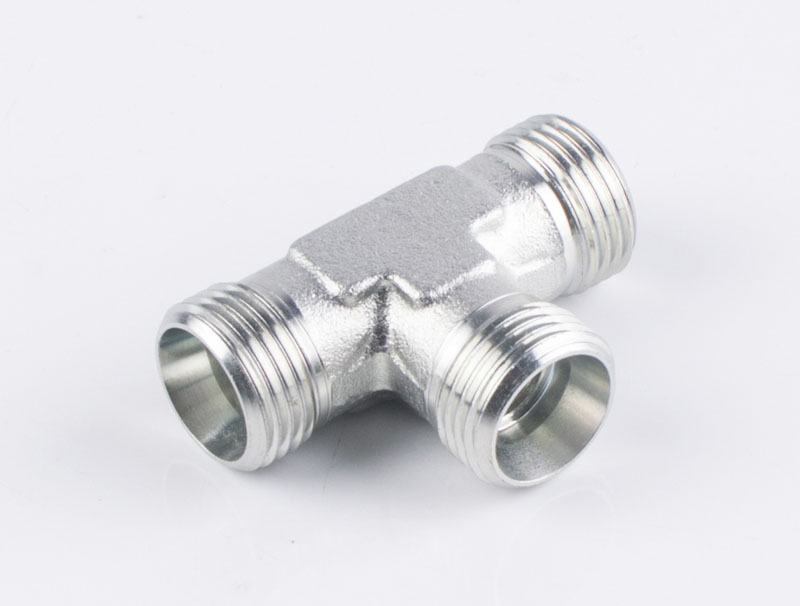

Hydraulic DIN Fittings AC/AD EQUAL TEES

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

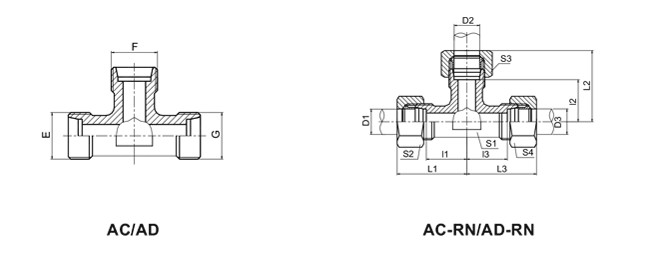

Drawing



Technical Data

PART NO.						THREAD													TUBE O.D.														DIMENSIONS																																		MPa
						E ,F ,G													D1 , D2 ,D3														l1,l2,l3									L1,L2,L3										S1					S2,S3,S4
AC-08						M8X1													4														11									21										9					10										10 over Light Series LL
AC-10						M10X1													5														9.5									21										9					12
AC-10LL						M10X1													6														9.5									21										9					12
AC-12LL						M12X1													8														11.5									23										12					14
AC-12						M12X1.5													6														12									27										12					14										25  Light Series L
AC-14						M14X1.5													8														14									29										12					17
AC-16						M16X1.5													10														15									30										14					19
AC-18						M18X1.5													12														17									32										17					22
AC-22						M22X1.5													15														21									36										19					27
AC-26						M26X1.5													18														23.5									40										24					32
AC-30						M30X2													22														27.5									44										27					36										16  Light Series L
AC-36						M36X2													28														30.5									47										36					41
AC-45						M45X2													35														34.5									56										41					50
AC-52						M52X2													42														40									63										50					60
AD-14						M14X1.5													6														16									31										12					17										63 Weight Series S
AD-16						M16X1.5													8														17									32										14					19
AD-18						M18X1.5													10														17.5									34										17					22
AD-20						M20X1.5													12														21.5									38										17					24
AD-22						M22X1.5													14														22									40										19					27
AD-24						M24X1.5													16														24.5									43										24					30										40 Weight Series S
AD-30						M30X2													20														26.5									48										27					36
AD-36						M36X2													25														30									54										36					46
AD-42						M42X2													30														35.5									62										41					50
AD-52						M52X2													38														41									72										50					60										31.5Weight SeriesS

Note : In case if you are interested to order the adapter in complete set width cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example AC-22RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
