Hydraulic DIN Fittings 9C FEMALE PLUG
  • Air ProHydraulic DIN Fittings 9C FEMALE PLUG

Hydraulic DIN Fittings 9C FEMALE PLUG

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. Hydraulic DIN Fittings can be finished by Zinc plated,Zn-Ni plated,Cr3,Cr6 plated . Ordinarily Hydraulic DIN Fittings are produced by Carbon Steel ,also stainless steel or brass is fine. We are specialized in all kinds of Hydraulic DIN Fittings.Our plant is located in Ningbo ,next to Shanghai , own good transportation than other cities.

Model:9C

Send Inquiry

Product Description

Application


Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

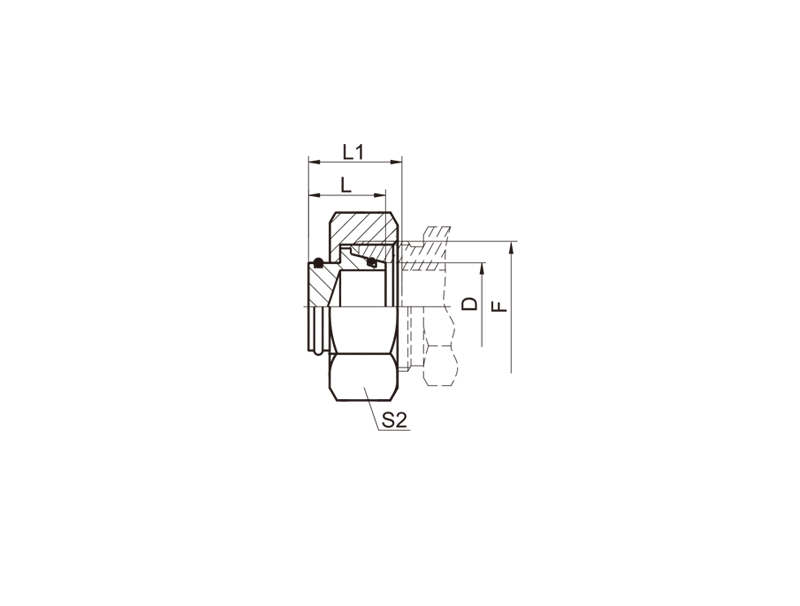

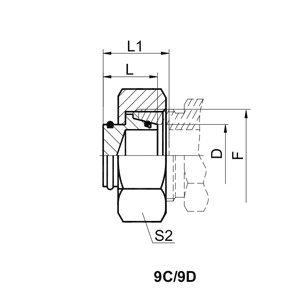

Drawing





Technical Data



PART NO.  THREAD  TUBE O.D.  DIMENSIONS  MPa
F D L L1 S2
9C-12 M12X1.5 6 15.5 17.5 14 31.5
 Light Series L
9C-14 M14X1.5 8 15.5 18 17
9C-16 M16X1.5 10 16.5 18 19
9C-18 M18X1.5 12 18 19.5 22
9C-22 M22X1.5 15 19.5 20 27
9C-26 M26X1.5 18 20 22 32
9C-30 M30X2 22 21.5 22.5 36 16
 Light Series L
9C-36 M36X2 28 22.5 24.5 41
9C-45 M45X2 35 25 29 55
9C-52 M52X2 42 27 31.5 60
9D-14 M14X1.5 6 16 18 17 63
Weight Series S
9D-16 M16X1.5 8 16.5 18.5 19
9D-18 M18X1.5 10 18 20 22
9D-20 M20X1.5 12 18.5 20.5 24
9D-22 M22X1.5 14 19 21.5 27
9D-24 M24X1.5 16 18.5 21.5 30 40
Weight Series S
9D-30 M30X2 20 22.5 25 36
9D-36 M36X2 25 23.5 28.5 46
9D-42 M42X2 30 25.5 32 50
9D-52 M52X2 38 26.5 36 60 31.5Weight SeriesS


Product Details


High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price:very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests


Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving


1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai



Hot Tags: Hydraulic DIN Fittings 9C FEMALE PLUG, China, Manufacturer, Supplier, Factory, High quality, Wholesale, Customized, Price
