Hydraulic DIN Fittings 8C METRIC LOCK NUT

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. when tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

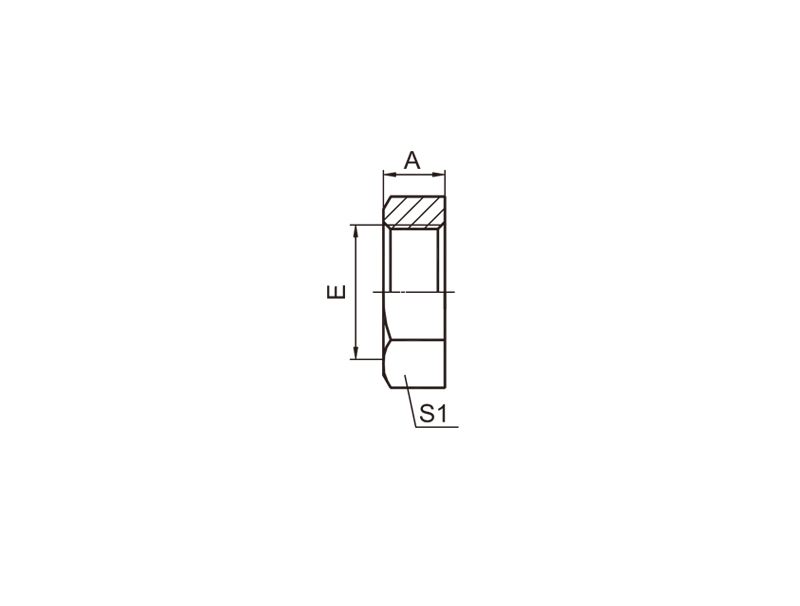

Drawing

Technical Data

PART NO.																	THREAD																DIMENSIONS
																	E																A											S1
8C-10																	M10X1																6											14
8C-12																	M12x1.5																7.5											17
8C-12(M12X1.25)																	M12X1.25																7.5											17
8C-14																	M14x1.5																7.5											19
8C-16																	M16x1.5																7.5											22
8C-16(A8.5)																	M16x1.5																8.5											22
8C-18																	M18x1.5																7.5											24
8C-20																	M20x1.5																8											27
8C-20(S24XA9)																	M20x1.5																9											24
8C-20(S30XA9)																	M20x1.5																9											30
8C-22																	M22x1.5																8											27
8C-22(S30XA9)																	M22x1.5																9											30
8C-24																	M24x1.5																8											30
8C-26																	M26x1.5																8											32
8C-27																	M27x1.5																8											32
8C-27A																	M27x2																10											32
8C-30																	M30x2																10											36
8C-33																	M33x2																10											41
8C-33A																	M33X1.5																10											41
8C-36																	M36x2																10											41
8C-42																	M42x2																10											50
8C-45																	M45x2																10											55
8C-48																	M48x2																10											55
8C-52																	M52x2																10											60
8C-60																	M60x2																10											65

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

 Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
