Hydraulic DIN Fittings 5CB/5DB BSP FEMALE STUD FITTINGS

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. When tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

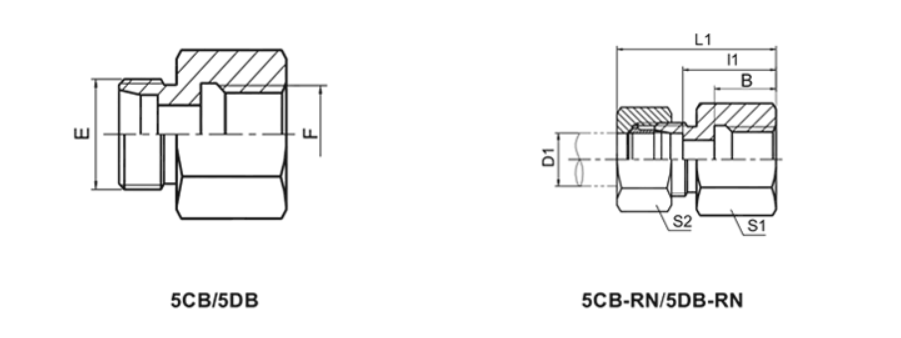

Drawing

Technical Data



PART NO.										THREAD																		TUBE O.D.																DIMENSIONS																								MPa
										E									F									D1																B					l1				L1						S1					S2
5CB-12-02										M12X1.5									G1/8"X28									6																12					19				34						14					14				31.5 Light series L
5CB-12-04										M12X1.5									G1/4"X19									6																16					23				36						19					17
5CB-14-04										M14X1.5									G1/4"X19									8																17					24				39						19					17
5CB-14-06										M14X1.5									G3/8"X19									8																17					25				40						24					17
5CB-14-08										M14X1.5									G1/2"X14									8																20					29				44						27					17
5CB-16-04										M16X1.5									G1/4"X19									10																17					25				40						19					19
5CB-16-06										M16X1.5									G3/8"X19									10																17					26				41						24					19
5CB-16-08										M16X1.5									G1/2"X14									10																20					30				45						27					19
5CB-18-04										M18X1.5									G1/4"X19									12																17					23				38						19					22
5CB-18-06										M18X1.5									G3/8"X19									12																17					26				41						24					22
5CB-18-08										M18X1.5									G1/2"X14									12																20					30				45						27					22
5CB-22-06										M22X1.5									G3/8"X19									15																17					28				43						24					27
5CB-22-08										M22X1.5									G1/2"X14									15																20					31				46						27					27
5CB-26-08										M26X1.5									G1/2"X14									18																20					30.5				47						27					32
5CB-30-12										M30X2									G3/4"X14									22																22					35.5				52						36					36				16 Light series L 63 Weight series S
5CB-36-16										M36X2									G1"X11									28																24.5					38				55						41					41
5CB-45-20										M45X2									G1.1/4"X11									35																26.5					41				63						55					50
5CB-52-24										M52X2									G1.1/2"X11									42																28.5					42.5				65						60					60
5DB-14-04										M14X1.5									G1/4"X19									6																17					26				41						19					17
5DB-16-04										M16X1.5									G1/4"X19									8																17					26				41						19					19
5DB-18-06										M18X1.5									G3/8"X19									10																17					26.5				43						24					22
5DB-20-06										M20X1.5									G3/8"X19									12																17					27.5				28						24					24
5DB-20-08										M20X1.5									G1/2"X14									12																20					30.5				31						24					24
5DB-22-08										M22X1.5									G1/2"X14									14																20					32				50						30					27
5DB-24-08										M24X1.5									G1/2"X14									16																20					31.5				50						30					30				40 Weight series S
5DB-30-12										M30X2									G3/4"X14									20																22					34.5				56						36					36
5DB-36-16										M36X2									G1"X11									25																24.5					37.5				62						41					46
5DB-42-20										M42X2									G1.1/4"X11									30																26.5					42				69						55					50
5DB-52-24										M52X2									G1.1/2"X11									38																28.5					43.5				74						60					60				31.5 Weight series S

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our part no.,for example 5CB-45-20RN
