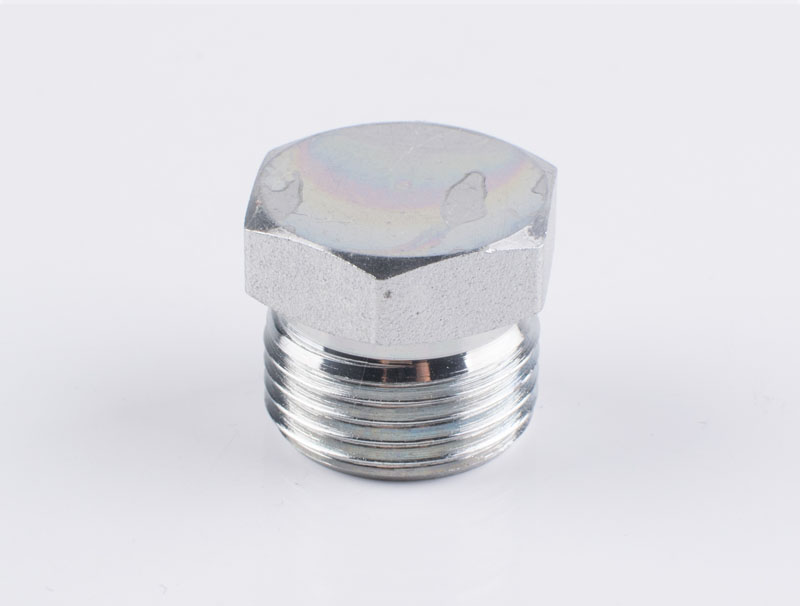

Hydraulic DIN Fittings 4C/4D PLUG

Application

Hydraulic DIN Fittings consist of three parts: body,cutting ring and nut. When tightening nut. cutting ring is driven forward on the tube then bites the tube with the edge of cutting ring .

This is how sealing is achieves and results in internal ridge inside the tube. In general, body and nuts' surface is plated zinc .  Hydraulic DIN Fittings can be used in system with Max 63Mpa .

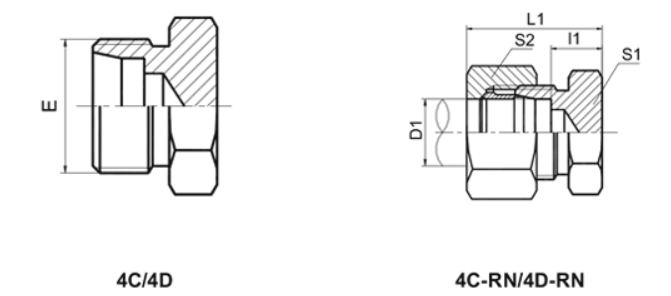

Drawing





Technical Data

PART NO.										THREAD																TUBE O.D.																	DIMENSIONS																									MPa
										E																D1																	l1									L1				S1						S2
4C-12										M12x1.5																6																	7									22				12						14						31.5 Light series L
4C-14										M14x1.5																8																	8									23				14						17
4C-16										M16x1.5																10																	9									24				17						19
4C-18										M18x1.5																12																	10									25				19						22
4C-22										M22x1.5																15																	11									26				24						27
4C-26										M26X1.5																18																	11.5									28				27						32
4C-30										M30x2																22																	13.5									30				32						36						16 Light series L
4C-30D										M30x1.5																22																	13.5									30				32						36
4C-36										M36x2																28																	14.5									31				41						41
4C-36D										M36x1.5																28																	14.5									31				41						41
4C-45										M45X2																35																	14.5									36				46						50
4C-45D										M45X1.5																35																	14.5									36				46						50
4C-52										M52X2																42																	16									39				55						60
4D-14										M14X1.5																6																	11									26				14						17						63 Weight series S
4D-16										M16X1.5																8																	13									28				17						19
4D-18										M18x1.5																10																	12.5									29				19						22
4D-20										M20x1.5																12																	14.5									31				22						24
4D-22										M22x1.5																14																	16									34				24						27
4D-24										M24x1.5																16																	15.5									34				27						30						40 Weight series S
4D-30										M30x2																20																	17.5									39				32						36
4D-36										M36x2																25																	20									44				38						46
4D-42										M42x2																30																	20.5									47				46						50
4D-52										M52X2																38																	23									54				55						60						31.5 Weight seriesS

Note: In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example 4C-30RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.



Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
