Hydraulic DIN Fittings 2WC WELD FITTINGS
  • Air ProHydraulic DIN Fittings 2WC WELD FITTINGS

Hydraulic DIN Fittings 2WC WELD FITTINGS

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:2WC

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a  manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

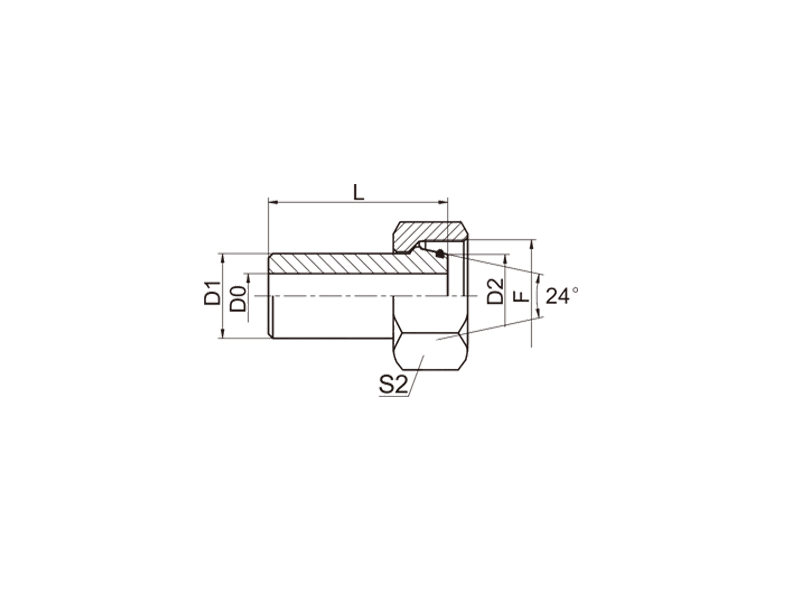

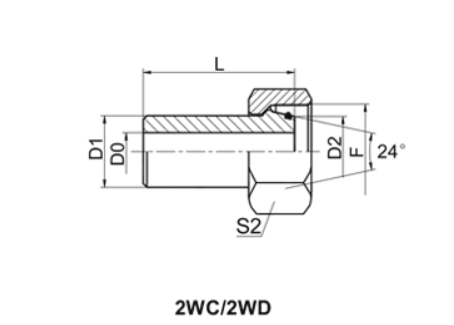

Drawing





Technical Data

PART NO.  THREAD 管子尺寸 TUBE SIZE   DIMENSIONS  MPa
F D1xt L D0 D2 S2
2WC-6X1.5 M12X1.5 6X1.5 30 2.5 6 14 25
Light seriesL
2WC-8X2.0 M14X1.5 8X2.0 30 4 8 17
2WC-10X2.0 M16X1.5 10X2.0 31 6 10 19
2WC-12X2.0 M18X1.5 12X2.0 31 7.5 12 22
2WC-15X2.0 M22X1.5 15X2.0 35 10 15 27
2WC-18X2.0 M26X1.5 18X2.0 35 13 18 32
2WC-22X2.0 M30X2 22X2.0 35 17 22 36 16
Light series L
2WC-28X2.5 M36X2 28X2.5 41 23 28 41
2WC-35X3.0 M45X2 35X3.0 48 29 35 50
2WC-42X3.0 M52X2 42X3.0 50.5 36 42 60
2WD-6X1.5 M14X1.5 6X1.5 28.5 2.5 6 17 63
Weight series S
2WD-8X2.0 M16X1.5 8X2.0 29 4 8 19
2WD-10X1.0 M18X1.5 10X1.0 32 6.5 10 22
2WD-10X1.5 M18X1.5 10X1.5 32 6.5 10 22
2WD-10X2.0 M18X1.5 10X2.0 32 6 10 22
2WD-12X1.5 M20X1.5 12X1.5 32.5 8 12 27
2WD-12X2.0 M20X1.5 12X2.0 32.5 8 12 27
2WD-12X2.5 M20X1.5 12X2.5 32.5 7 12 27
2WD-16X1.5 M24X1.5 16X1.5 39 13 16 30 40
Weight series S
2WD-16X2.0 M24X1.5 16X2.0 39 12 16 30
2WD-16X2.5 M24X1.5 16X2.5 39 11 16 30
2WD-16X3.0 M24X1.5 16X3.0 39 10 16 30
2WD-20X2.0 M30X2 20X2.0 43 15 20 36
2WD-20X2.5 M30X2 20X2.5 43 15 20 36
2WD-20X3.0 M30X2 20X3.0 43 14 20 36
2WD-20X4.0 M30X2 20X4.0 43 12 20 36
2WD-25X2.5 M36X2 25X2.5 50 20 25 46
2WD-25X3.0 M36X2 25X3.0 50 19 25 46
2WD-25X4.0 M36X2 25X4.0 50 17 25 46
2WD-25X5.0 M36X2 25X5.0 50 15 25 46
2WD-30X3.0 M42X2 30X3.0 52 24 30 50 25
Weight series S
2WD-30X4.0 M42X2 30X4.0 52 22 30 50
2WD-30X5.0 M42X2 30X5.0 52 20 30 50
2WD-30X6.0 M42X2 30X6.0 52 18 30 50
2WD-38X4.0 M52X2 38X4.0 56.5 30 38 60
2WD-38X5.0 M52X2 38X5.0 56.5 28 38 60
2WD-38X6.0 M52X2 38X6.0 56.5 26 38 60
2WD-38X7.0 M52X2 38X7.0 56.5 24 38 60

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
