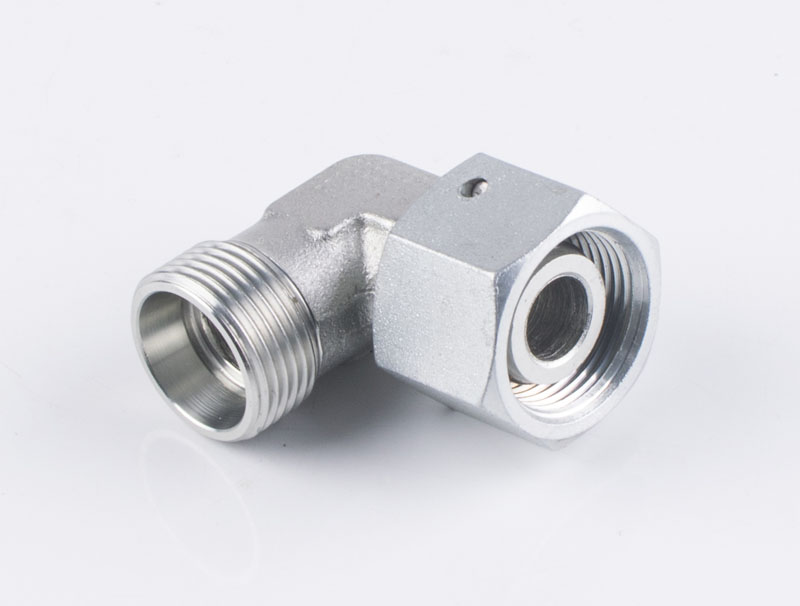

Hydraulic DIN Fittings 2C9/2D9 REDUCER TUBE ADAPTOR WITH SWIVEL NUT 90° ELBOW
  • Air ProHydraulic DIN Fittings 2C9/2D9 REDUCER TUBE ADAPTOR WITH SWIVEL NUT 90° ELBOW

Hydraulic DIN Fittings 2C9/2D9 REDUCER TUBE ADAPTOR WITH SWIVEL NUT 90° ELBOW

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:2C9/2D9

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

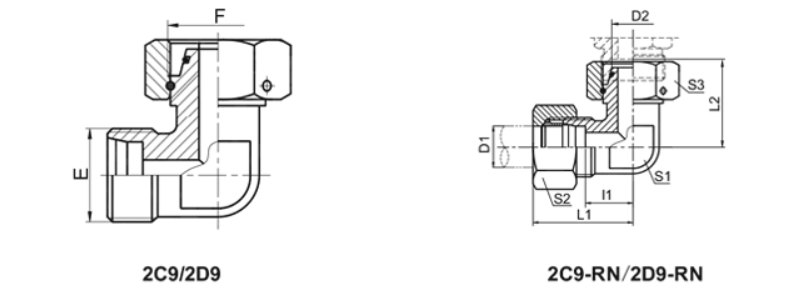

Drawing







Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 D2 l1 L1 L2 S1 S2 S3
2C9-12 M12X1.5 M12X1.5 6 6 12 27 26 12 14 14 25
Light series L
2C9-14 M14X1.5 M14X1.5 8 8 14 29 27.5 12 17 17
2C9-16 M16X1.5 M16X1.5 10 10 15 30 29 14 19 19
2C9-18 M18X1.5 M18X1.5 12 12 17 32 29.5 17 22 22
2C9-22 M22X1.5 M22X1.5 15 15 21 36 32.5 19 27 27
2C9-26 M26X1.5 M26X1.5 18 18 23.5 40 35.5 24 32 32
2C9-30 M30X2 M30X2 22 22 27.5 44 38.5 27 36 36 16
Light seriesL
2C9-36 M36X2 M36X2 28 28 30.5 47 41.5 36 41 41
2C9-45 M45X2 M45X2 35 35 34.5 56 51 41 50 50
2C9-52 M52X2 M52X2 42 42 40 63 56 50 60 60
2D9-14 M14X1.5 M14X1.5 6 6 16 31 27 12 17 17 63
Weight series S
2D9-16 M16X1.5 M16X1.5 8 8 17 32 27.5 14 19 19
2D9-18 M18X1.5 M18X1.5 10 10 17.5 34 30 17 22 22
2D9-20 M20X1.5 M20X1.5 12 12 21.5 38 31 17 24 24
2D9-22 M22X1.5 M22X1.5 14 14 22 40 35 19 27 27
2D9-24 M24X1.5 M24X1.5 16 16 24.5 43 36.5 24 30 30 40
Weight series S
2D9-30 M30X2 M30X2 20 20 26.5 48 44.5 27 36 36
2D9-36 M36X2 M36X2 25 25 30 54 50 36 46 46
2D9-42 M42X2 M42X2 30 30 35.5 62 55 41 50 50
2D9-52 M52X2 M52X2 38 38 41 72 63 50 60 60 31.5Weight seriesS
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our part no.,for example 2C9-30RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished:high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price:very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
