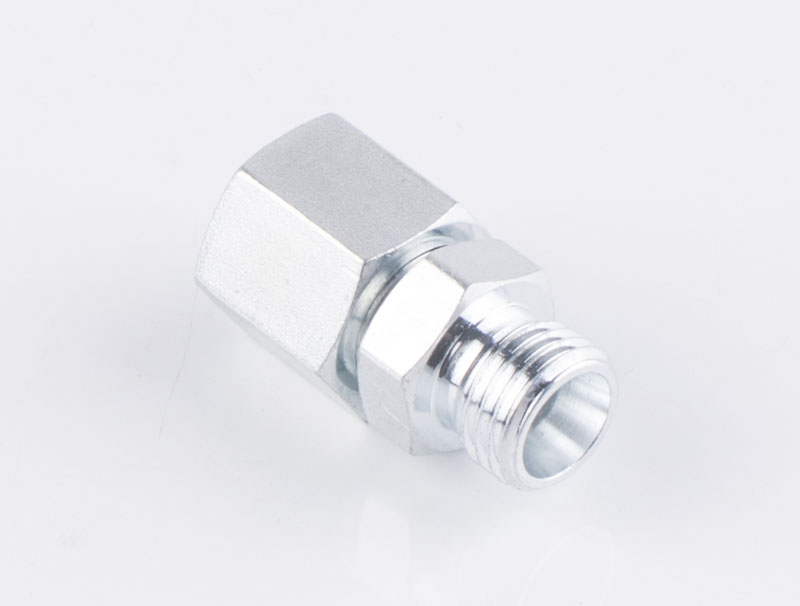

Hydraulic DIN Fittings 2C REDUCER TUBE ADAPTOR WITH SWIVEL NUT
  • Air ProHydraulic DIN Fittings 2C REDUCER TUBE ADAPTOR WITH SWIVEL NUT

Hydraulic DIN Fittings 2C REDUCER TUBE ADAPTOR WITH SWIVEL NUT

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:2C

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

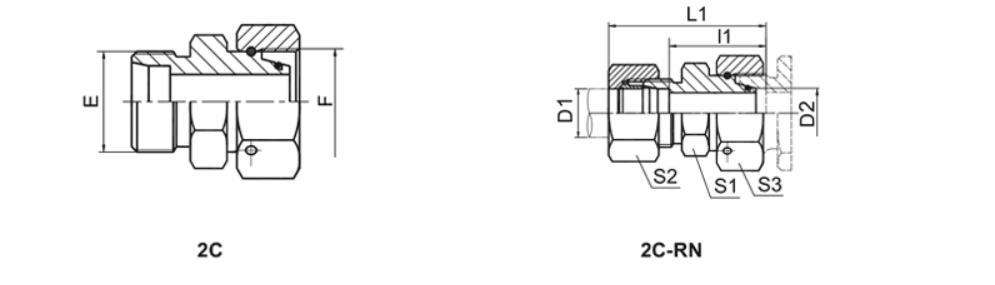

Drawing


Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 D2 l1 L1 S1 S2 S3
2C-12-14 M12X1.5 M14X1.5 6 8 23.5 38 12 14 17 31.5
Light series L
2C-12-16 M12X1.5 M16X1.5 6 10 25 40 14 14 19
2C-14-16 M14X1.5 M16X1.5 8 10 25 40 14 17 19
2C-12-18 M12X1.5 M18X1.5 6 12 25 40 17 14 22
2C-14-18 M14X1.5 M18X1.5 8 12 25 40 17 17 22
2C-16-18 M16X1.5 M18X1.5 10 12 26 41 17 19 22
2C-12-22 M12X1.5 M22X1.5 6 15 28.5 43 19 14 27
2C-14-22 M14X1.5 M22X1.5 8 15 28.5 43 19 17 27
2C-16-22 M16X1.5 M22X1.5 10 15 29.5 44 19 19 27
2C-18-22 M18X1.5 M22X1.5 12 15 29.5 44 19 22 27
2C-12-26 M12X1.5 M26X1.5 6 18 28 43 24 14 32
2C-22-26 M22X1.5 M26X1.5 15 18 30 45 24 27 32
2C-12-30 M12X1.5 M30X2 6 22 32 47 27 14 36 16
Light series L
2C-14-30 M14X1.5 M30X2 8 22 32 47 27 17 36
2C-16-30 M16X1.5 M30X2 10 22 33 48 27 19 36
2C-18-30 M18X1.5 M30X2 12 22 33 48 27 22 36
2C-22-30 M22X1.5 M30X2 15 22 34 49 27 27 36
2C-26-30 M26X1.5 M30X2 18 22 33.5 50 27 32 36
2C-12-36 M12X1.5 M36X2 6 28 34 49 36 14 41
2C-14-36 M14X1.5 M36X2 8 28 34 49 36 17 41
2C-16-36 M16X1.5 M36X2 10 28 35 50 36 19 41
2C-18-36 M18X1.5 M36X2 12 28 35 50 36 22 41
2C-22-36 M22X1.5 M36X2 15 28 36 51 36 27 41
2C-26-36 M26X1.5 M36X2 18 28 35.5 52 36 32 41
2C-30-36 M30X2 M36X2 22 28 37.5 54 36 36 41
2C-12-45 M12X1.5 M45X2 6 35 37 52 41 14 50
2C-14-45 M14X1.5 M45X2 8 35 37 52 41 17 50
2C-16-45 M16X1.5 M45X2 10 35 38 53 41 19 50
2C-18-45 M18X1.5 M45X2 12 35 38 53 41 22 50
2C-22-45 M22X1.5 M45X2 15 35 39 54 41 27 50
2C-26-45 M26X1.5 M45X2 18 35 38.5 55 41 32 50
2C-30-45 M30X2 M45X2 22 35 40.5 57 41 36 50
2C-36-45 M36X2 M45X2 28 35 40.5 57 41 41 50
2C-12-52 M12X1.5 M52X2 6 42 40.5 55 50 14 60
2C-14-52 M14X1.5 M52X2 8 42 40.5 55 50 17 60
2C-16-52 M16X1.5 M52X2 10 42 41.5 56 50 19 60
2C-18-52 M18X1.5 M52X2 12 42 41.5 56 50 22 60
2C-22-52 M22X1.5 M52X2 15 42 42.5 58 50 27 60
2C-26-52 M26X1.5 M52X2 18 42 42 58 50 32 60
2C-30-52 M30X2 M52X2 22 42 44 60 50 36 60
2C-36-52 M36X2 M52X2 28 42 44 61 50 41 60
2C-45-52 M45X2 M52X2 35 42 43 65 50 50 60


Note：In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example 2C-30-52RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
