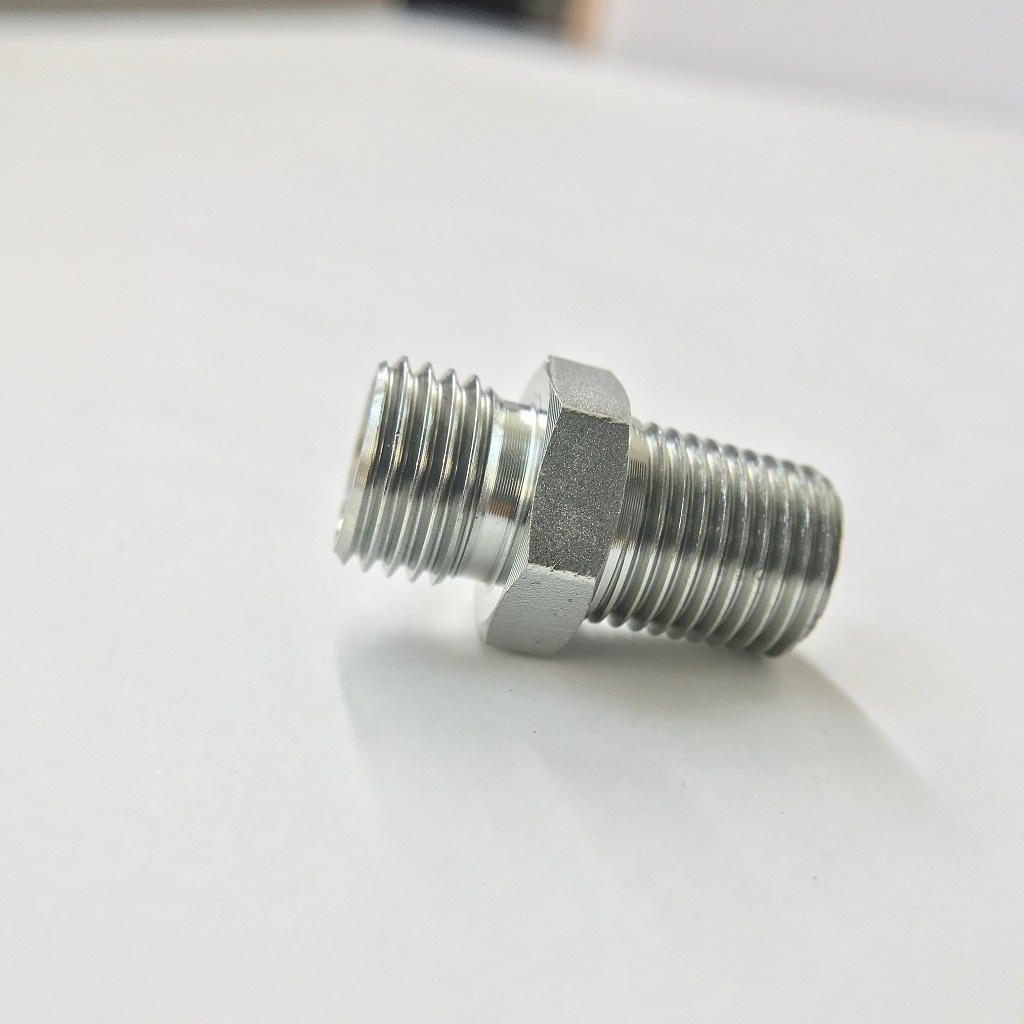

Hydraulic DIN Fittings 1CT-SP/1DT-SP BSPT MALE
  • Air ProHydraulic DIN Fittings 1CT-SP/1DT-SP BSPT MALE

Hydraulic DIN Fittings 1CT-SP/1DT-SP BSPT MALE

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CT-SP/1DT-SP

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

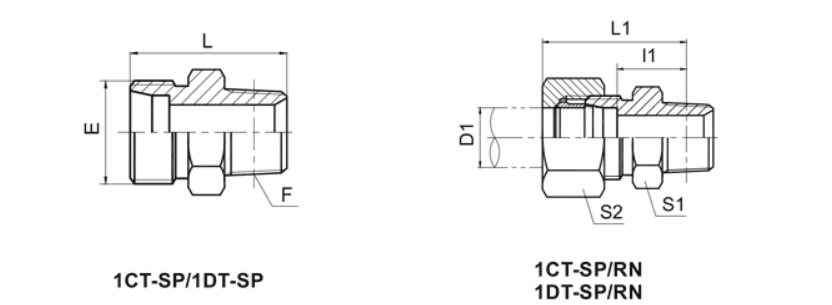

Drawing



Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D l1 L1 S1 S2
1CT-12-02SP M12x1.5 R1/8"x28 6 13 28 12 14 25
Light series L
1CT-12-04SP M12x1.5 R1/4"x19 8 8 14 14
1CT-14-04SP M14x1.5 R1/4"x19 8 16.5 31.5 14 17
1CT-14-06SP M14x1.5 R3/8"x19 8 17.6 32.6 19 17
1CT-16-04SP M16x1.5 R1/4"x19 10 17.5 32.5 17 19
1CT-16-06SP M16x1.5 R3/8"x19 10 18.6 33.6 19 19
1CT-16-08SP M16x1.5 R1/2"x14 10 21.8 36.8 22 19
1CT-16-12SP M16x1.5 R3/4"x14 10 21.5 36.5 30 19
1CT-18-04SP M18x1.5 R1/4"x19 12 18.5 33.5 19 22
1CT-18-06SP M18x1.5 R3/8"x19 12 18.6 33.6 19 22
1CT-18-08SP M18x1.5 R1/2"x14 12 21.8 36.8 22 22
1CT-22-08SP M22x1.5 R1/2"x14 15 22.8 37.8 24 27
1CT-26-08SP M26x1.5 R1/2"x14 18 23.3 39.8 27 32 16
Light series L
1CT-26-12SP M26x1.5 R3/4"x14 18 22 38.5 30 32
1CT-30-12SP M30x2 R3/4"x14 22 24 40.5 32 36
1CT-36-16SP M36x2 R1"x11 28 29.6 46.1 38 41
1CT-36-20SP M36x2 R1.1/4"x11 28 29.3 45.8 46 41
1CT-45-16SP M45x2 R1"x11 35 29.6 51.1 46 50
1CT-45-20SP M45x2 R1.1/4"x11 35 28.3 49.8 46 50
1CT-52-20SP M52x2 R1.1/4"x11 42 29.8 52.8 55 60
1CT-52-24SP M52x2 R1.1/2"x11 42 29.8 52.8 55 60
1DT-14-04SP M14x1.5 R1/4"x19 6 13 36.5 17 17 40
Weight series S
1DT-16-04SP M16x1.5 R1/4"x19 8 21.5 36.5 17 19
1DT-18-04SP M18x1.5 R1/4"x19 10 21 37.5 19 22
1DT-20-04SP M20x1.5 R1/4"x19 12 23 39.5 22 24
1DT-20-06SP M20x1.5 R3/8"x19 12 23.1 39.6 22 24
1DT-22-06SP M22x1.5 R3/8"x19 14 24.6 42.6 24 27
1DT-22-08SP M22x1.5 R1/2"x14 14 27.8 45.8 24 27
1DT-24-06SP M24x1.5 R3/8"x19 16 24.1 42.6 27 30
1DT-24-08SP M24x1.5 R1/2"x14 16 27.3 45.8 27 30
1DT-30-12SP M30x2 R3/4"x14 20 28 49.5 32 36 25
Weight series S
1DT-36-12SP M36x2 R3/4"x14 25 29.5 53.5 38 46
1DT-36-16SP M36x2 R1"x11 25 34.1 58.1 38 46
1DT-42-16SP M42x2 R1"x11 30 35.6 62.1 46 50
1DT-42-20SP M42x2 R1.1/4"x11 30 34.3 60.8 46 50
1DT-52-20SP M52x2 R1.1/4"x11 38 36.8 67.8 55 60
1DT-52-24SP M52x2 R1.1/2"x11 38 36.8 67.8 55 60


Note：In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our part no.,for example 1DT-22-08SP/RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
