Hydraulic DIN Fittings 1CO9-OG/1DO9-OG 90° ELBOW UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING
  • Air ProHydraulic DIN Fittings 1CO9-OG/1DO9-OG 90° ELBOW UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING

Hydraulic DIN Fittings 1CO9-OG/1DO9-OG 90° ELBOW UN UNF THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CO9-OG/1DO9-OG

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

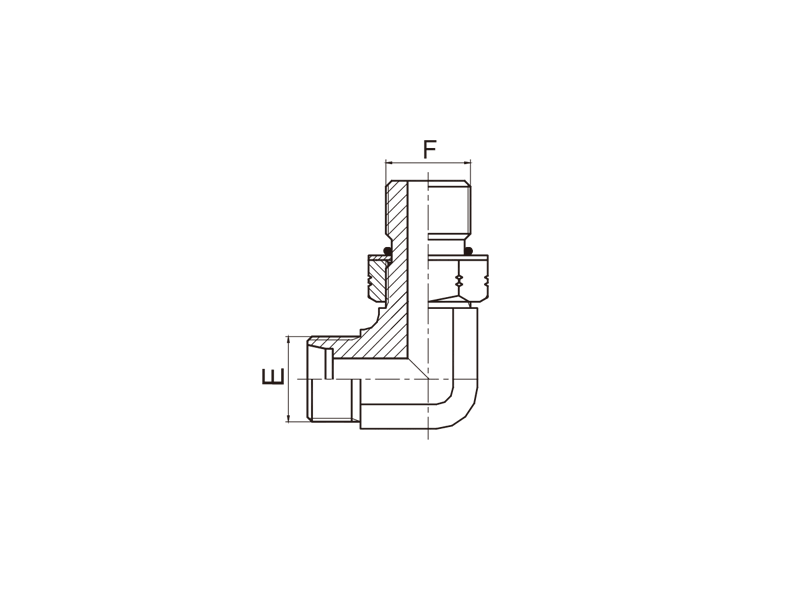

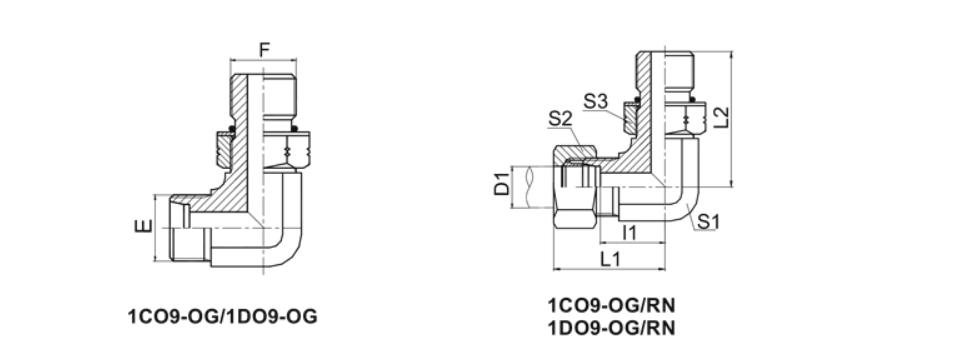

Drawing




Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 l1 L1 L2 S1 S2 S3
1CO9-12-04OG M12X1.5 7/16"X20 6 13 28 27.2 11 14 17 31.5
Light series L
1CO9-14-06OG M14X1.5 9/16"X18 8 15.5 30.5 31.8 14 17 19
1CO9-16-06OG M16X1.5 9/16"X18 10 17.5 32.5 33.3 16 19 19
1CO9-18-08OG M18X1.5 3/4"X16 12 19 34 37.5 19 22 24
1CO9-22-10OG M22X1.5 7/8"X14 15 22 37 44 22 27 27
1CO9-22-08OG M22X1.5 3/4"X16 15 22 37 39.5 22 27 24
1CO9-26-12OG M26X1.5 1.1/16"X12 18 25.5 42 51 27 32 32
1CO9-30-12OG M30X2 1.1/16"X12 22 29.3 45.8 53.5 30 36 32 16
Light series L
1CO9-36-12OG M36X2 1.1/16"X12 28 33.5 47.8 57.5 36 41 41
1CO9-36-16OG M36X2 1.5/16"X12 28 33.3 49.8 57.5 36 41 41
1CO9-45-20OG M45X2 1.5/8"X12 35 39.2 60.7 63 48 50 50
1CO9-52-24OG M52X2 1.7/8"X12 42 44.8 67.8 70.5 55 60 55
1DO9-14-04OG M14X1.5 7/16"X20 6 17.5 32.5 30 14 17 17 63
Weight series S
1DO9-16-06OG M16X1.5 9/16"X18 8 18.7 33.7 33.3 16 19 19
1DO9-18-06OG M18X1.5 9/16"X18 10 19.5 36 33.5 19 22 19
1DO9-18-08OG M18X1.5 3/4"X16 10 19.5 36 37.5 19 22 24
1DO9-20-08OG M20X1.5 3/4"X16 12 19.5 36 37.5 19 24 24
1DO9-22-10OG M22X1.5 7/8"X14 14 23 41 44 22 27 27
1DO9-24-10OG M24X1.5 7/8"X14 16 24 42.5 46.5 24 30 27 40
Weight series S
1DO9-30-12OG M30X2 1.1/16"X12 20 28.3 49.8 53.5 30 36 32
1DO9-36-16OG M36X2 1.5/16"X12 25 32.8 56.8 57.5 36 46 41
1DO9-42-20OG M42X2 1.5/8"X12 30 36.2 62.7 59.5 41 50 50
1DO9-52-24OG M52X2 1.7/8"X12 38 45.8 76.8 70.5 55 60 55 31.5Weight series S

Note：In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our part no.,for example 1CO9-30-120G/RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
