Hydraulic DIN Fittings 1CN9/1DN9 90° ELBOW NPT MALE
  • Air ProHydraulic DIN Fittings 1CN9/1DN9 90° ELBOW NPT MALE

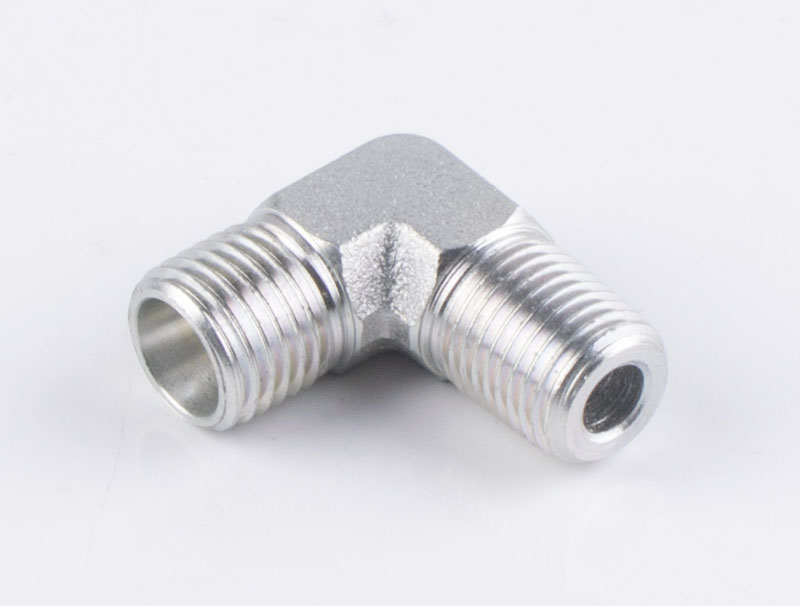

Hydraulic DIN Fittings 1CN9/1DN9 90° ELBOW NPT MALE

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CN9/1DN9

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

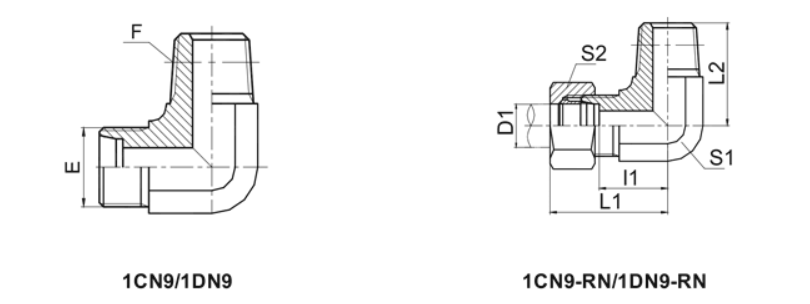

Drawing


Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 l1 L1 L2 S1 S2
1CN9-12-02 M12X1.5 Z1/8"X27 6 13 28 21 11 14 25
Light series L
1CN9-12-04 M12X1.5 Z1/4"X18 6 15.5 30.5 25.5 14 14
1CN9-14-04 M14X1.5 Z1/4"X18 8 15.5 30.5 25.5 14 17
1CN9-16-06 M16X1.5 Z3/8"X18 10 17.5 32.5 29.5 16 19
1CN9-18-04 M18X1.5 Z1/4"X18 12 19 34 28 19 22
1CN9-18-06 M18X1.5 Z3/8"X18 12 19 34 31 19 22
1CN9-18-08 M18X1.5 Z1/2"X14 12 21 36 36.7 22 22
1CN9-22-06 M22X1.5 Z3/8"X18 15 22 37 32.5 22 27
1CN9-22-08 M22X1.5 Z1/2"X14 15 22 37 36.7 22 27
1CN9-26-08 M26X1.5 Z1/2"X14 18 25.5 42 40 27 32 16
Light series L
1CN9-26-12 M26X1.5 Z3/4"X14 18 25.5 42 44 27 32
1CN9-30-12 M30X2 Z3/4"X14 22 29.3 45.8 45 30 36
1CN9-30-16 M30X2 Z1"X11.5 22 32 50 33 36
1CN9-36-16 M36X2 Z1"X11.5 28 33.3 49.8 51.5 36 41
1CN9-45-20 M45X2 Z1.1/4"X11.5 35 39.2 60.7 63 48 50
1CN9-52-24 M52X2 Z1.1/2"X11.5 42 44.8 67.8 65 55 60
1DN9-14-04 M14X1.5 Z1/4"X18 6 17.5 32.5 25.5 14 17 40
Weight series S
1DN9-16-04 M16X1.5 Z1/4"X18 8 18.5 33.7 26.5 16 19
1DN9-18-06 M18X1.5 Z3/8"X18 10 19.5 36 31 19 22
1DN9-20-04 M20X1.5 Z1/4"X18 12 19.5 36 28 19 24
1DN9-20-06 M20X1.5 Z3/8"X18 12 19.5 36 31 19 24
1DN9-22-06 M22X1.5 Z3/8"X18 14 23 41 32.5 22 27
1DN9-22-08 M22X1.5 Z1/2"X14 14 23 41 36.7 22 27
1DN9-24-06 M24X1.5 Z3/8"X18 16 24 42.5 33.5 24 30
1DN9-24-08 M24X1.5 Z1/2"X14 16 24 42.5 37.5 24 30
1DN9-30-08 M30X2 Z1/2"X14 20 28 49.8 41 30 36 25
Weight series S
1DN9-30-12 M30X2 Z3/4"X14 20 28 49.8 45 30 36
1DN9-36-12 M36X2 Z3/4"X14 25 32.8 56.8 49 36 46
1DN9-36-16 M36X2 Z1"X11.5 25 32.8 56.8 51.5 36 46
1DN9-42-16 M42X2 Z1"X11.5 30 36.2 62.7 54.5 41 50
1DN9-42-20 M42X2 Z1.1/4"X11.5 30 36.2 62.7 54.5 41 50
1DN9-52-20 M52X2 Z1.1/4"X11.5 38 45.8 76.8 65 55 60
1DN9-52-24 M52X2 Z1.1/2"X11.5 38 45.8 76.8 65 55 60
Note：In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example 1CN9-30-12RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
