Hydraulic DIN Fittings 1CN/1DN NPT MALE

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CN/1DN

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

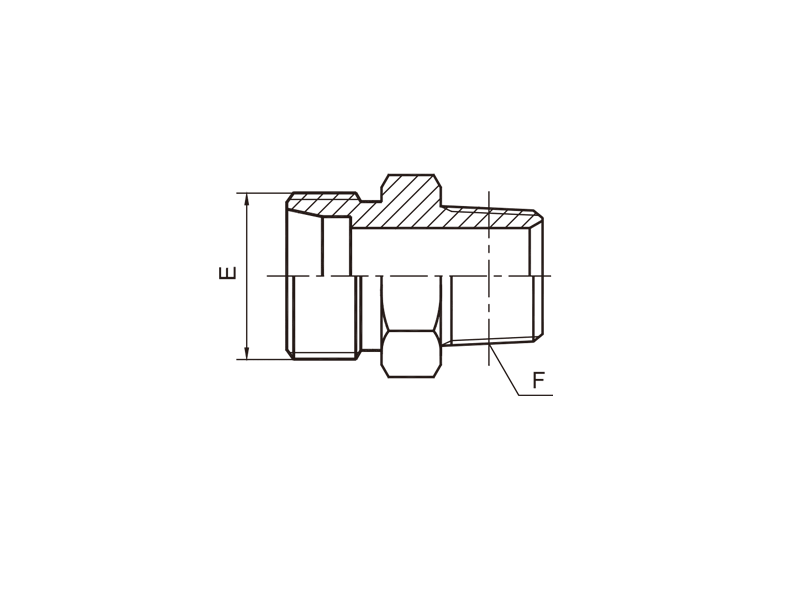

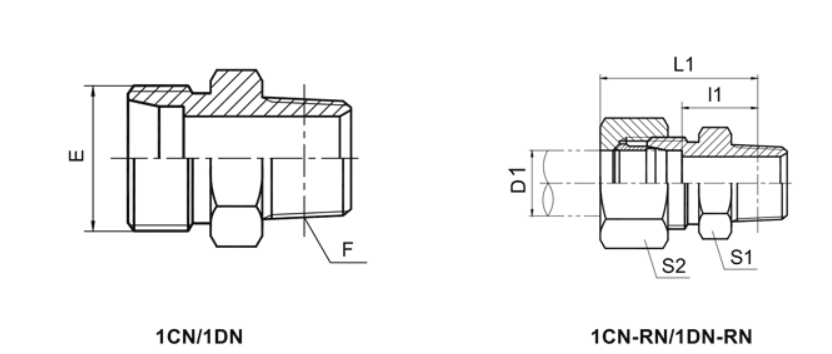

Drawing




Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 l1 L1 S1 S2
1CN-08-02 M8X1 Z1/8"X27 4 14.4 24.4 11 10 10
特Light series LL
1CN-10-02LL M10X1 Z1/8"X27 6 12.9 24.4 11 12
1CN-12-02LL M12X1 Z1/8"X27 8 13.9 25.4 12 14
1CN-12-02 M12X1.5 Z1/8"X27 6 13.4 28.4 12 14 25
Light series L
16
Light series L
1CN-12-04 M12X1.5 Z1/4"X18 6 17.2 32.2 17 14
1CN-14-04 M14X1.5 Z1/4"X18 8 17.2 32.2 14 17
1CN-16-04 M16X1.5 Z1/4"X18 10 18.2 33.2 17 19
1CN-16-06 M16X1.5 Z3/8"X18 10 19.9 53.0 19 19
1CN-18-04 M18X1.5 Z1/4"X18 12 19.2 34.2 19 22
1CN-18-06 M18X1.5 Z3/8"X18 12 19.9 34.9 19 22
1CN-18-08 M18X1.5 Z1/2"X14 12 21.4 36.4 22 22
1CN-22-08 M22X1.5 Z1/2"X14 15 22.4 37.4 24 27
1CN-22-20 M22X1.5 Z1.1/4"X11.5 15 29.8 37.4 46 27
1CN-26-08 M26X1.5 Z1/2"X14 18 22.9 39.4 27 32
1CN-26-12 M26X1.5 Z3/4"X14 18 22.4 38.9 30 32
1CN-30-08 M30X2 Z1/2"X14 22 24.4 40.5 32 36
1CN-30-12 M30X2 Z3/4"X14 22 24.4 40.9 32 36
1CN-36-16 M36X2 Z1"X11.5 28 29.8 46.3 41 41
1CN-36-20 M36X2 Z1.1/4"X11.5 28 31.3 46.3 46 41
1CN-45-20 M45X2 Z1.1/4"X11.5 35 30.3 51.8 46 50
1CN-52-20 M52X2 Z1.1/4"X11.5 42 31.8 55.8 55 60
1CN-52-24 M52X2 Z1.1/2"X11.5 42 32.8 55.8 55 60
1DN-14-04 M14X1.5 Z1/4"X18 6 22.2 37.2 17 17 40
Weight series S
1DN-16-04 M16X1.5 Z1/4"X18 8 22.2 37.2 17 19
1DN-18-04 M18X1.5 Z1/4"X18 10 21.7 38.2 19 22
1DN-18-06 M18X1.5 Z3/8"X18 10 22.4 38.9 19 22
1DN-20-04 M20X1.5 Z1/4"X18 12 23.7 40.2 22 24
1DN-20-06 M20X1.5 Z3/8"X18 12 24.4 40.9 22 24
1DN-20-08 M20X1.5 Z1/2"X14 12 25.9 42.4 22 24
1DN-22-08 M22X1.5 Z1/2"X14 14 27.4 45.4 24 27
1DN-24-08 M24X1.5 Z1/2"X14 16 26.9 45.4 27 30
1DN-30-12 M30X2 Z3/4"X14 20 28.4 49.9 32 36 25
Weight series S
1DN-36-12 M36X2 Z3/4"X14 25 30.9 34.0 41 46
1DN-36-16 M36X2 Z1"X11.5 25 35.3 59.3 41 46
1DN-42-16 M42X2 Z1"X11.5 25 35.8 59.3 46 46
1DN-42-20 M42X2 Z1.1/4"X11.5 30 36.3 62.8 46 50
1DN-52-24 M52X2 Z1.1/2"X11.5 38 39.8 70.8 55 60

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example 10N-30-12RN.
