Hydraulic DIN Fittings 1CM/1DM METRIC THREAD 60° CONE SEALING OR BONDED SEAL STUD ENDS
  • Air ProHydraulic DIN Fittings 1CM/1DM METRIC THREAD 60° CONE SEALING OR BONDED SEAL STUD ENDS

Hydraulic DIN Fittings 1CM/1DM METRIC THREAD 60° CONE SEALING OR BONDED SEAL STUD ENDS

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CM/1DM

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

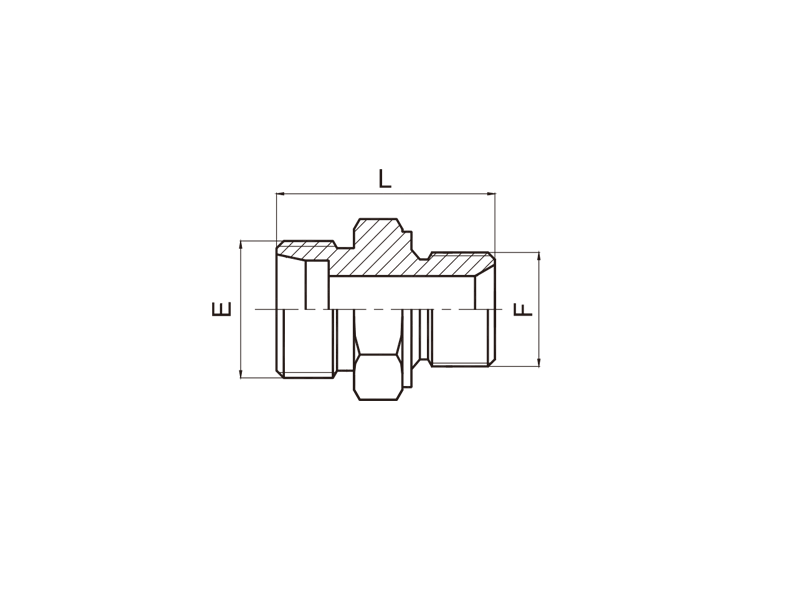

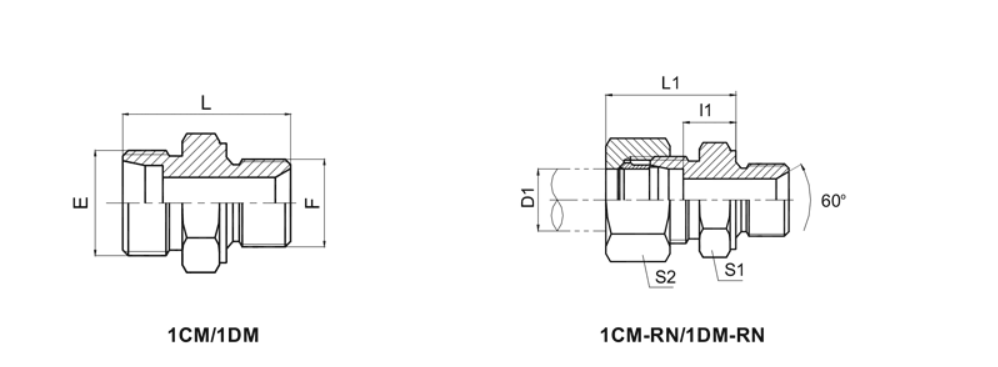

Drawing

Technical Data

PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 B l1 L1 S1 S2
1CM-12-10 M12X1.5 M10X1 6 8 8.5 23 14 14 31.5
Light series L
1CM-14-12 M14X1.5 M12X1.5 8 12 10 25 17 17
1CM-14-18 M14X1.5 M18X1.5 8 12 11.5 26 24 17
1CM-16-14 M16X1.5 M14X1.5 10 12 11 26 19 19
1CM-16 M16X1.5 M16X1.5 10 12 12 27 22 19
1CM-16-18 M16X1.5 M18X1.5 10 12 12.5 27 24 19
1CM-16-22 M16X1.5 M22X1.5 10 14 14 29 27 19
1CM-18-14 M18X1.5 M14X1.5 12 12 11 26 19 22
1CM-18-16 M18X1.5 M16X1.5 12 12 12 27 22 22
1CM-18 M18X1.5 M18X1.5 12 12 12.5 27 24 22
1CM-18-22 M18X1.5 M22X1.5 12 14 14 29 27 22
1CM-22-16 M22X1.5 M16X1.5 15 12 13 28 24 27
1CM-22-18 M22X1.5 M18X1.5 15 12 13.5 29 24 27
1CM-22 M22X1.5 M22X1.5 15 14 15 30 27 27
1CM-26-18 M26X1.5 M18X1.5 18 12 14 30 27 32
1CM-26-22 M26X1.5 M22X1.5 18 14 14.5 31 27 32
1CM-30-22 M30X2 M22X1.5 22 14 16.5 33 32 36 16
Light series L
1CM-30-26 M30X2 M26X1.5 22 16 16.5 33 32 36
1CM-30-27 M30X2 M27X2 22 16 18.5 35 32 36
1CM-36-33 M36X2 M33X2 28 18 17.5 34 41 41
1CM-45-42 M45X2 M42X2 35 20 17.5 39 50 50
1CM-52-48 M52X2 M48X2 42 22 19 42 55 60
1DM-14-12 M14X1.5 M12X1.5 6 12 13 28 17 17 63
Weight series S
1DM-16-14 M16X1.5 M14X1.5 8 12 15 30 19 19
1DM-18-16 M18X1.5 M16X1.5 10 12 15 31 22 22
1DM-20-18 M20X1.5 M18X1.5 12 12 17 33 24 24
1DM-20-22 M20X1.5 M22X1.5 12 14 17.5 34 27 24
1DM-22-20 M22X1.5 M20X1.5 14 14 19 37 27 27
1DM-24-18 M24X1.5 M18X1.5 16 12 18 36 27 30 40
Weight series S
1DM-24-22 M24X1.5 M22X1.5 16 14 18.5 37 27 30
1DM-30-27 M30X2 M27X2 20 16 20.5 42 32 36
1DM-36-33 M36X2 M33X2 25 18 23 47 41 46
1DM-42 M42X2 M42X2 30 20 23.5 50 50 50 25
Weight seriesS
1DM-52-48 M52X2 M48X2 38 22 57 55 60
NoteIn case if you are interested to order the adapter in complete set width cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example 1DM-20-18RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
