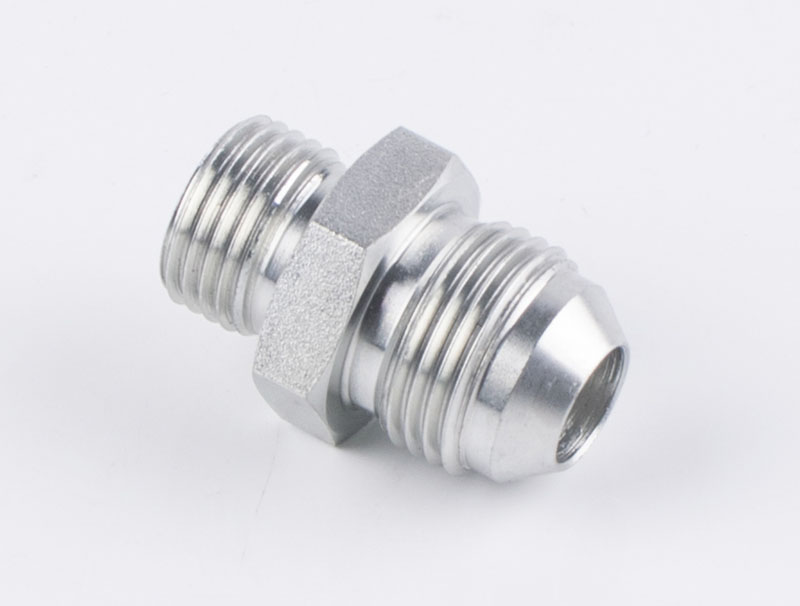

Hydraulic DIN Fittings 1CJ/1DJ JIC 74°CONE SEALING
  • Air ProHydraulic DIN Fittings 1CJ/1DJ JIC 74°CONE SEALING

Hydraulic DIN Fittings 1CJ/1DJ JIC 74°CONE SEALING

DIN stands for "Deutsches Institut für Normung", which means "German institute for Standardization". There are three series of tube port end connections: tube-to-tube, tube-to-female port and tube-to-male thread.

Model:1CJ/1DJ

Send Inquiry

Product Description

Application

Hydraulic DIN Fittings are most commonly used in industrial, oil & gas and construction equipment in hydraulic and pneumatic .We, as a

manufacturer,own a very good reputation in hydraulic DIN fitting area.

Metric O.D. sizes range from 4mm to 42mm, and the most common industrial applications use carbon steel or stainless steel material.

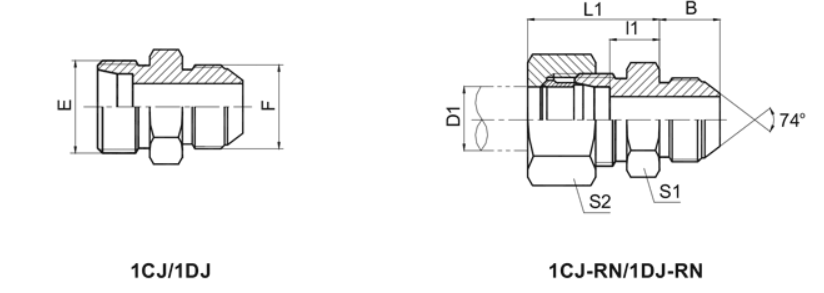

Drawing






Technical Data

 PART NO. THREAD  TUBE O.D.   DIMENSIONS  MPa
E F D1 B l1 L1 S1 S2
1CJ-10-04LL M10x1 7/16"X20 6 14 6.5 20 12 12 31.5
Light series L
1CJ-12A-04LL M12x1 7/16"X20 8 14 8.5 22 12 14
1CJ-12-04 M12x1.5 7/16"X20 6 14 9 24 14 14
1CJ-14-04 M14x1.5 7/16"X20 8 14 8 23 15 17
1CJ-14-06 M14x1.5 9/16"X18 8 14.1 8 23 15 17
1CJ-16-06 M16x1.5 9/16"X18 10 14.1 9 24 17 19
1CJ-18-06 M18x1.5 9/16"X18 12 14.1 10 25 19 22
1CJ-18-08 M18x1.5 3/4"X16 12 16.7 10 25 22 22
1CJ-22-08 M22x1.5 3/4"X16 15 16.7 10.8 26 24 27
1CJ-22-10 M22x1.5 7/8"X14 15 19.3 11 26 24 27
1CJ-26-10 M26X1.5 7/8"X14 18 19.3 11.5 28 27 32
1CJ-26-12 M26X1.5 1.1/16"X12 18 21.9 11.6 28 30 32
1CJ-30-12 M30x2 1.1/16"X12 22 21.9 13.5 30 32 36 16
Light series L
1CJ-30D-12 M30X1.5 1.1/16"X12 22 21.9 13.5 30 32 36
1CJ-30D-16 M30X1.5 1.5/16"X12 22 23.1 14.5 31 36 36
1CJ-36-16 M36x2 1.5/16"X12 28 23.1 14.5 31 41 41
1CJ-36D-12 M36X1.5 1.1/16"X12 28 21.9 14.5 31 41 41
1CJ-36D-16 M36X1.5 1.5/16"X12 28 23.1 14.5 31 41 41
1CJ-45-20 M45X2 1.5/8"X12 35 24.3 14.5 36 46 50
1CJ-45D-20 M45X1.5 1.5/8"X12 35 24.3 15.5 37 46 50
1CJ-52-20 M52X2 1.5/8"X12 42 24.3 16 39 55 60
1CJ-52-24 M52X2 1.7/8"X12 42 27.5 16 39 55 60
1DJ-14-04 M14x1.5 7/16"X20 6 14 11 26 14 14 63
Weight series S
1DJ-16-04 M16x1.5 7/16"X20 8 14 13 28 17 19
1DJ-16-06 M16x1.5 9/16"X18 8 14.1 12.9 28 17 34
1DJ-18-04 M18x1.5 7/16"X20 10 14 12.5 29 19 22
1DJ-18-06 M18x1.5 9/16"X18 10 14.1 12.5 29 19 22
1DJ-20-06 M20x1.5 9/16"X18 12 14.1 14.5 31 22 24
1DJ-20-08 M20x1.5 3/4"X16 12 16.7 14.3 31 22 24
1DJ-22-08 M22x1.5 3/4"X16 14 16.7 16 34 24 27
1DJ-24-08 M24x1.5 3/4"X16 16 16.7 15.5 34 27 30 40
Weight series S
1DJ-24-10 M24x1.5 7/8"X14 16 19.3 15.5 34 27 30
1DJ-30-12 M30x2 1.1/16"X12 20 21.9 17.5 39 32 36
1DJ-36-12 M36x2 1.1/16X12 25 21.9 19 43 38 46
1DJ-36-16 M36x2 1.5/16X12 25 23.1 19 43 38 46
1DJ-42-20 M42x2 1.5/8"X12 30 24.3 20.5 47 46 50
1DJ-52-24 M52X2 1.7/8"X12 38 27.5 23 54 55 60 31.5Weight series S

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our partno.,for example 1DJ-20-18RN.

Product Details

High quality Hydraulic DIN Fittings can satisfy your different needs with its special quality and features.
1.   Finished：high quality Zinc plated , Zn-Ni plated , Cr3 , Cr6 plated.
2.   Price：very competitive
3.   MOQ: 300PCS
4.   Material: iron, carbon steel, stainless steel, other metals
5.   Standard / specification: Standard or as per drawing and samples (OEM)
6.   Size: as per customers' requests

Customized service: We are specialized in all kinds of hydraulic hose fittings,adaptors,ferrules,flanges,fitting accessories.

Delivery,Shipping And Serving

1.     Delivery: As general,we can guarantee the delivery within one month.
2.     Port of loading: Ningbo or Shanghai
